Keysight Technologies Startup Guide 1-13
Getting Started
STEP 4. Install the P937xA Network Analyzers
b. On the second P937xA, remove the 50 ohm load from the LO In port.
Leave the load installed on the LO Out port.
c. Save the 50 ohm loads that were just removed for possible reuse in
another module configuration.

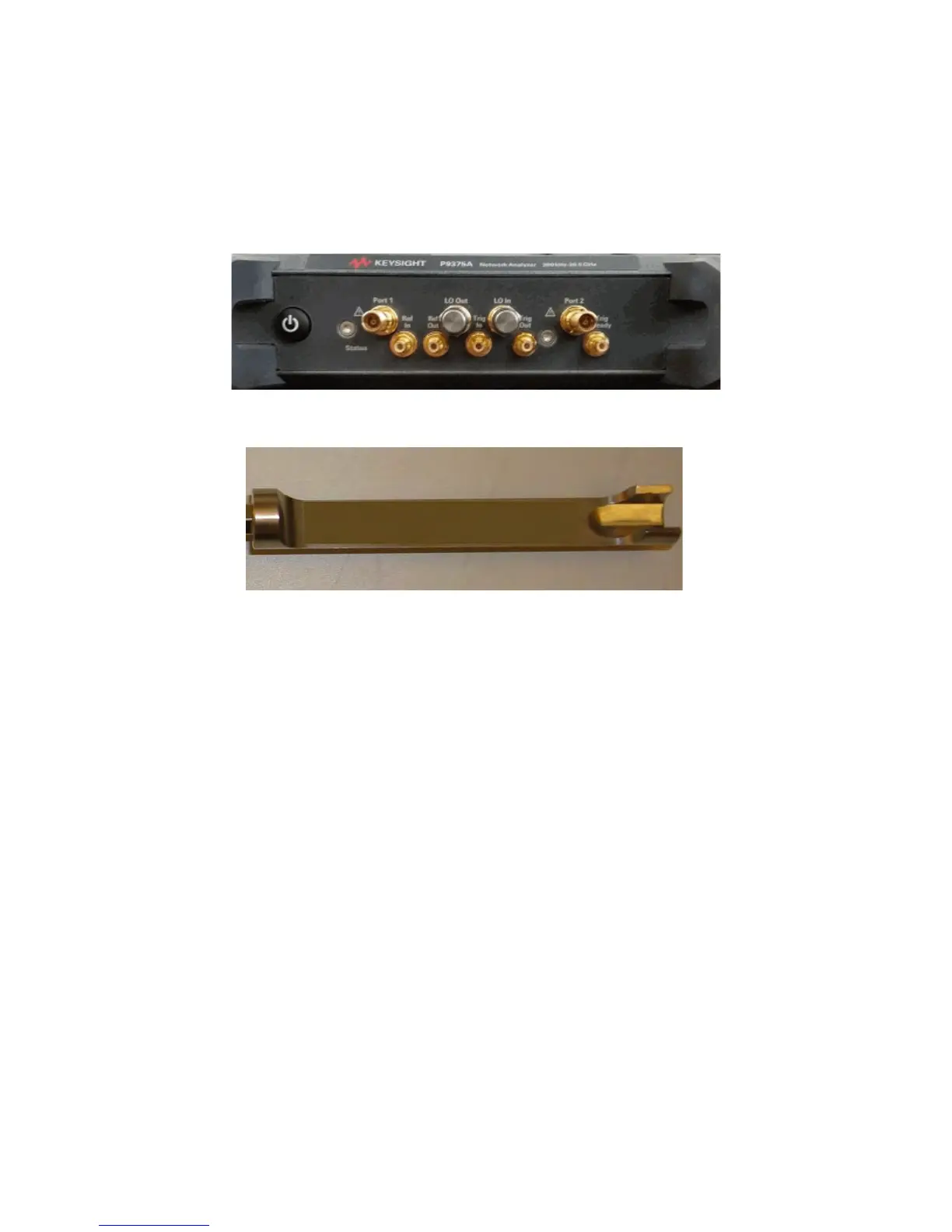

Figure 1-4 50 Ohm Loads Installed on the Network Analyzer Modules
Figure 1-5 Socket Adapter for 50 Ohm Loads (part number 5023-1450)
3. Remove the front and rear handles off of both P937xA VNAs using a T10
torx driver. Refer to Figure 1-6 and Figure 1-7 on page 15.
4. Set the front and rear handles aside for reuse. The screws will not be
reused.
5. Stack the two P937xA VNAs and then:
Refer to Figure 1-6 and Figure 1-7 on page 15 for these steps.
a. Attach the left front latch to the P937xAs.
b. Connect one of the front handles to the bottom P937xA, loosely
attach the handle with the 0515-0375 screws (x2).
c. Repeat for top left P937xA VNA handle.
d. Repeat steps a through c for the right side front of the P937xA VNA.
e. Repeat steps a through d for the rear latches and handles using
latches P9375-20018 (x2) and 0515-0664 screws (x4) and
f. Use a T10 torx torque driver to tighten front and rear handle screws
to 9 lb-ins.
