15
x20 x25 x40 x45 x46
020
025
120 140
125 145
146
220 240
225 245
246
420
425
520
525
6 GHz
13.5 GHz
20 GHz
40 GHz
50 GHz
90
1
9
0
1
94
1
9
4
1
9
2
6
9
2
6
927
9
2
8
960
971
973
990
990
960
966
966
966
921/922

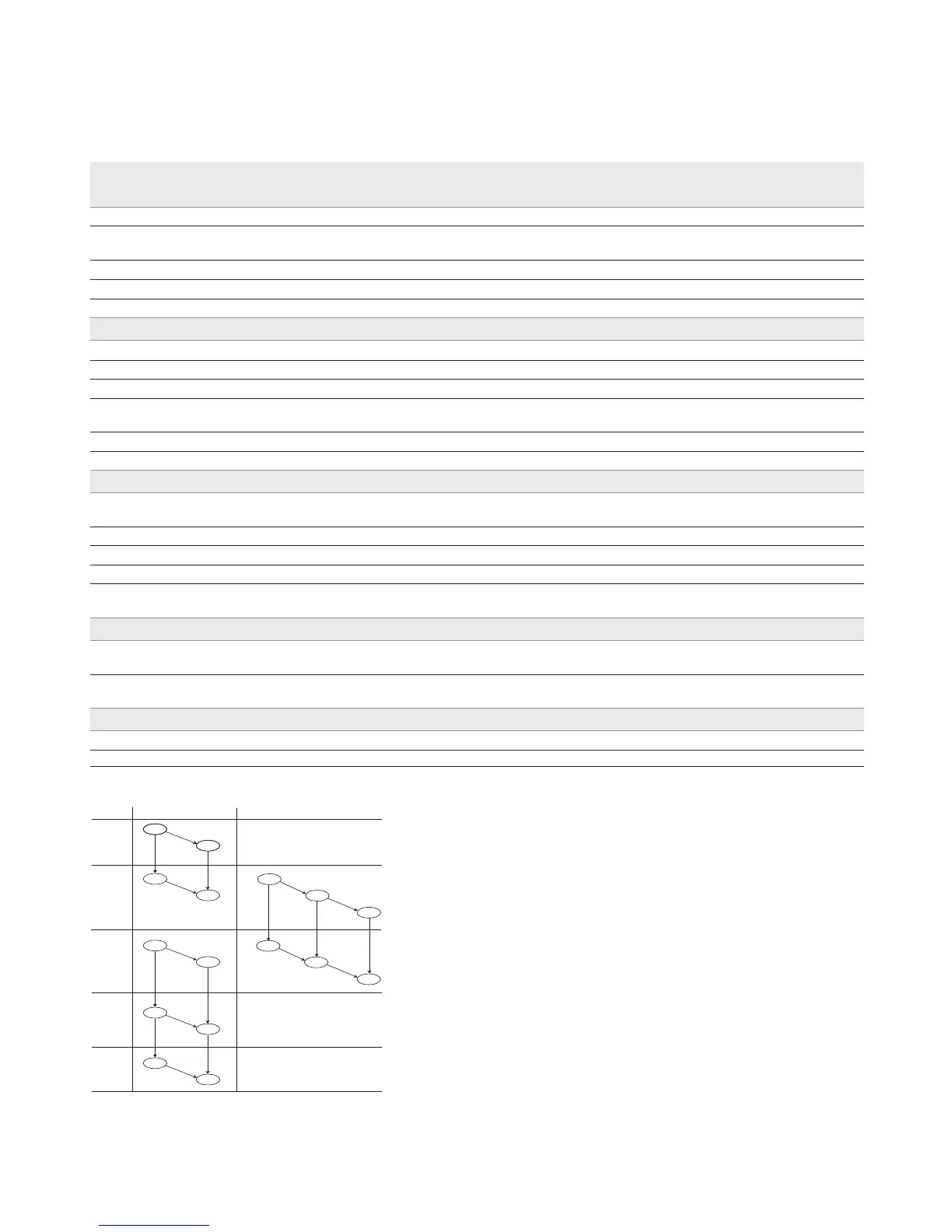

PNA-L upgrade path examples.
PNA-L upgrade kits
Upgrade kits are available to add options after initial purchase. To upgrade the PNA-L, order the corresponding item number. The
model and serial numbers of the instrument to be retrofitted are required as part of the order.
Description Required option For PNA-L Series User installable
Frequency upgrade
1
Extend analyzer’s frequency range to 13.5 GHz N5230C-020 or 025 N5230CU-960 No
Extend analyzer’s frequency range to 20 GHz N5230C-140, 145, or
146
N5230CU-966 No
Extend analyzer’s frequency range to 40 GHz
N5230C-220
N5230CU-971 No
Extend analyzer’s frequency range to 40 GHz
N5230C-225
N5230CU-973 No
Extend analyzer’s frequency range to 50 GHz
N5230C-420, or 425
N5230CU-990 No
Test set and power configuration
Add congurable test set and extended power range to 6 or 13.5 GHz PNA-L
N5230C-020 or 120
N5230CU-901 No
Add congurable test set and extended power range to 20 GHz PNA-L, 2-ports N5230C-220 N5230CU-922 No
Add congurable test set and extended power range to 40 or 50 GHz PNA-L, 2-ports N5230C-420 or 520 N5230CU-941 No
Add congurable test set and extended power range to 13.4 or 20 GHz PNA-L,
4-prots
N5230C-140 or 240 N5230CU-926 No
Add internal second source to 13.5 GHz PNA-L, 4-ports N5230C-145 N5230CU-928 No
Add internal second source to 20 GHz PNA-L, 4-prots N5230C-245 N5230CU-927 No
Measurement applications
Time-domain measurements N5230CU-010 or
N5231CU-010
1
Yes
Frequency offset N5230CU-080 Yes
Scalar-calibrated converter measurements Option 080 N5230CU-082 Yes
4-port measurement application Option x25 N5230CU-550 Yes
N-port capabilities Option xx5 or 246 N5230CU-551 or
N5231CU-551
2
Yes
Calibration software
Perpetual license for built-in performance test software for Keysight inclusive calibra-
tion
N5230CU-897 Yes
Perpetual license for built-in performance test software for standard compliant
calibration
N5230CU-898 Yes
User interface
PNA-L A to C model upgrade, 2-ports N5230A-x2x N5230AU-221 No
PNA-L A to C model upgrade, 4-ports N5230A-x4x N5230AU-241 No
1. For 6 GHz PNA-L (N5230C-02x), order N5231CU-010. For other
frequency options, order N5230CU-010.
2. For 6, 13.5, 20 GHz PNA-L, order N5231CU-551. For 40 and 50
GHz PNA-L, order N5230CU-010.
