22
Radiated Emissions Measurement Examples
Making Radiated Emission Measurements
6 Load limit lines a. Press Recall, Data, Limit
(Preloaded 1), Open.
b. Scroll to EN 55022,
Rad, Class A, 30 MHz
to 1 GHz (10m).csv,
Open.

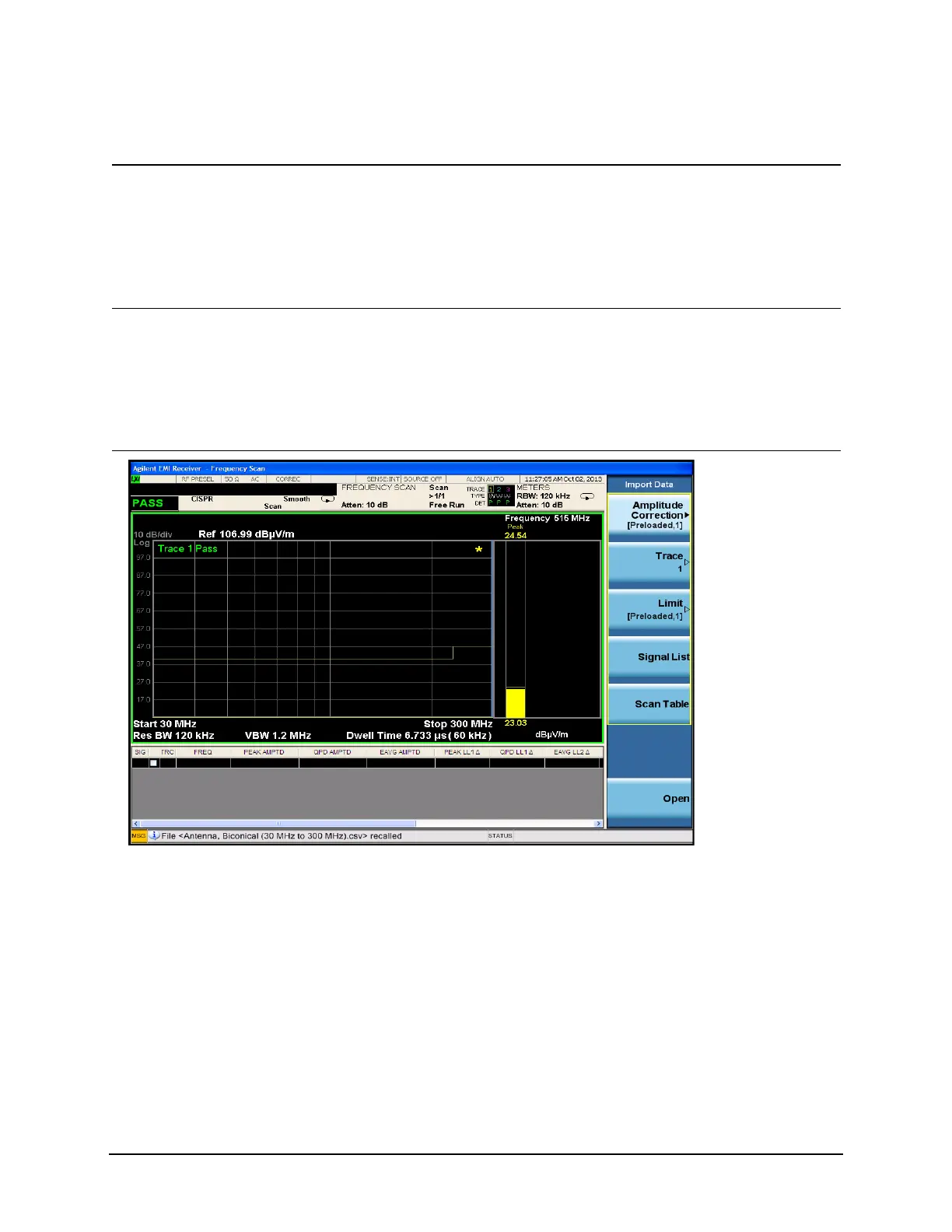

7 Load correction factors for
the biconical antenna
a. Press Amplitude
Corrections (Preloaded 1),
Open.
b. Select Antenna,
Biconical (30 MHz to
300 MHz).csv, Open.
Step Action Notes
