Keysight PXA X Series Installation Note

18 Installation Note N9030-90058
Option EXM, External Mixing Upgrade Kit
Front Frame Replacement
1. Refer to Figure 11. Reattach the ribbon cable W1. Ensure the locking tabs are engaged.
2. Refer to Figure 12. Carefully position the Front Frame Assembly onto the chassis. Ensure no
cables are crushed. Replace the eight screws (1) (0515-1035), four on each side of the chassis.
Torque to 9 inch pounds.

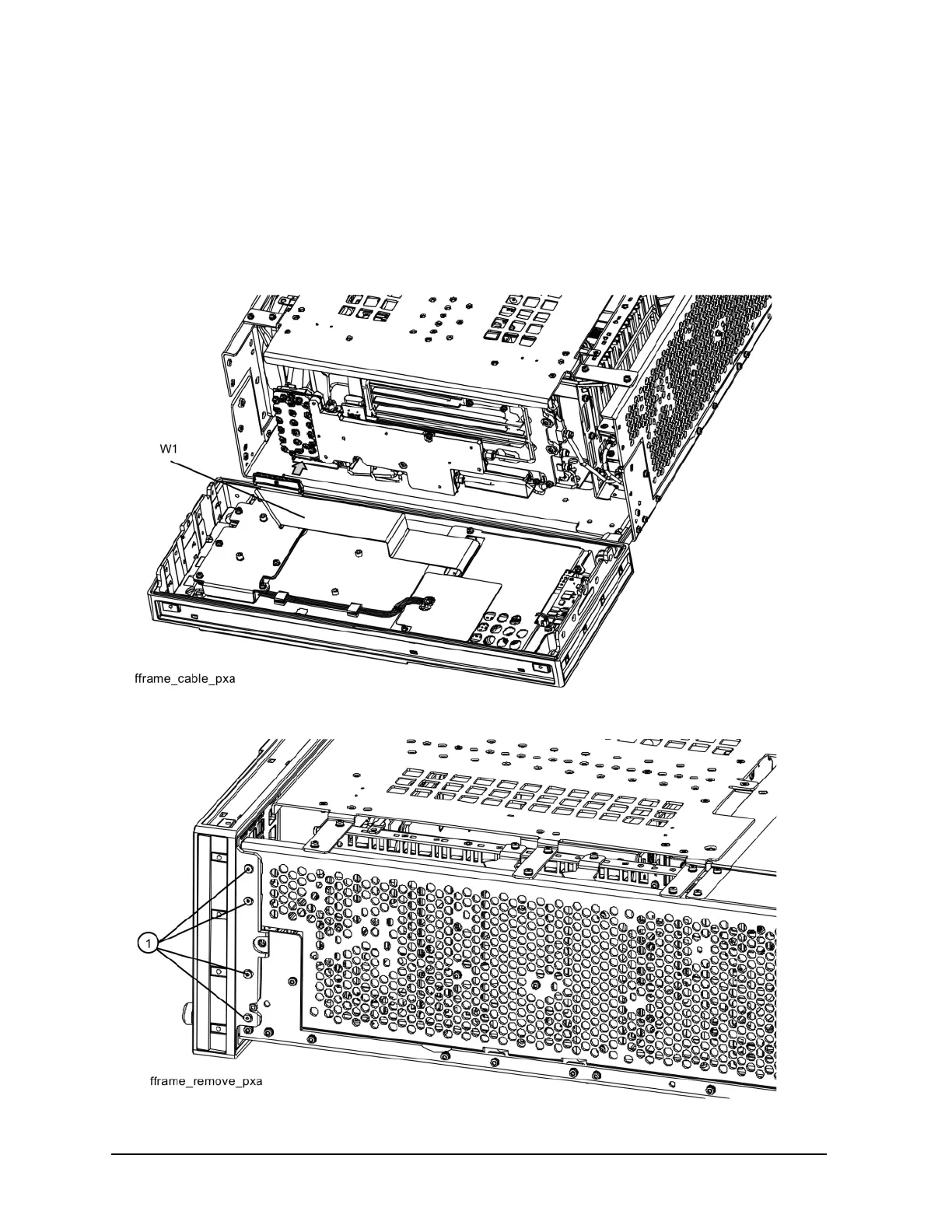

Figure 11 Front Panel Cable
Figure 12 Front Frame Replacement
