KFI 101215 - Fairlead Plate and Winch Assembly; Final Tightening and Wiring

2

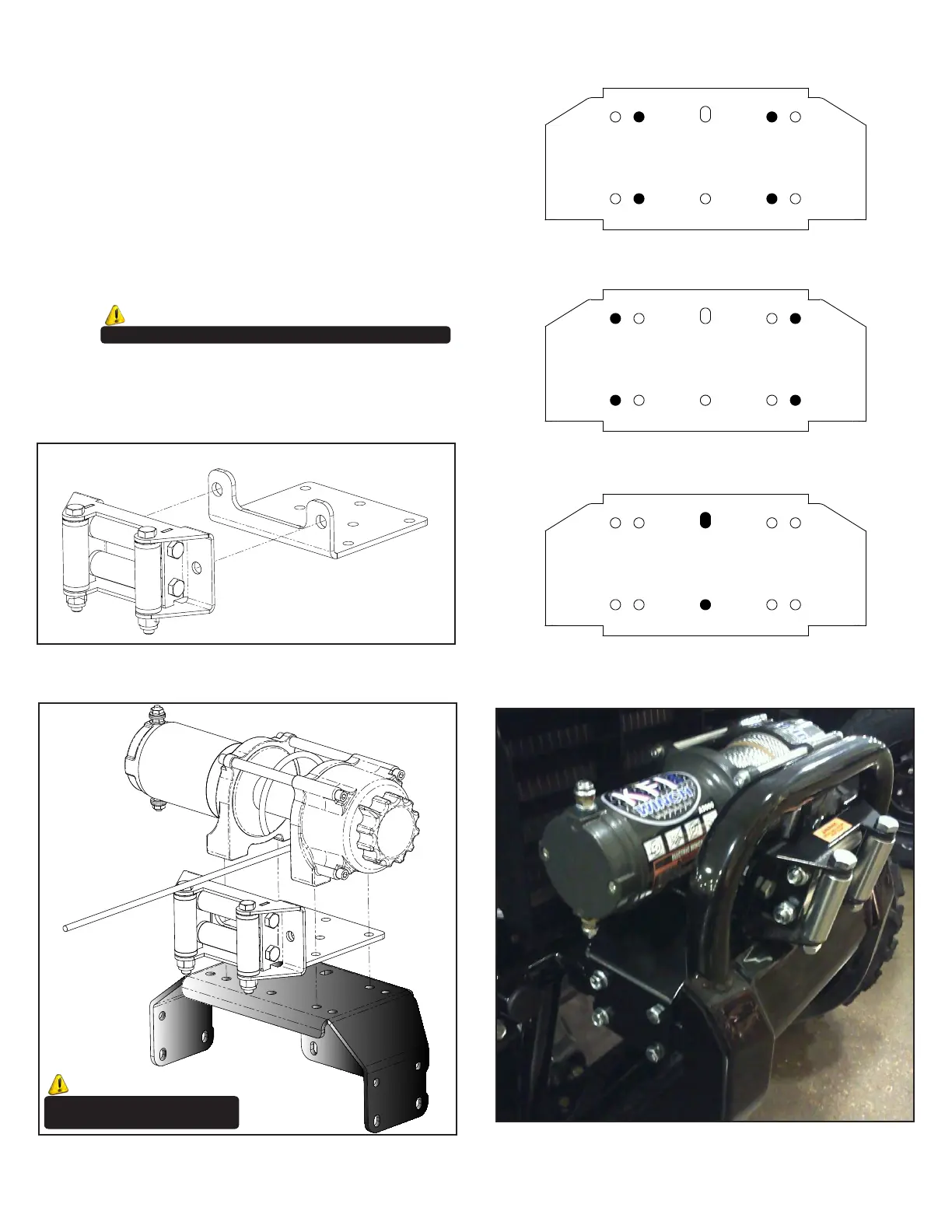

“Figure 5 Winch Bolt Pattern”
3. Determiningwhichwinchyouhave,see
Figure5.
4. Installyourrollerfairleadtoyourfairlead
plateasshowninFigure6,usingthehardware
suppliedwithyourwinch.
5. Installyourwinchandfairleadplateassembly
tothemountplateasshowninFigure7,using
thehardwareprovidedwithyourwinchand
theboltpatterndeterminedinstep3.
“Figure 7 Winch and Roller Fairlead Install”
“Figure 8 Winch and Mount Installed”
Standard 4 Hole Winch Pattern (4.875” x 3”)
Standard 2 Hole Winch Pattern
Wide 4 Hole Winch Pattern (6.6” x 3”)
“Figure 6 Winch and Roller Fairlead Install”
CAUTION
Make sure to ONLY use the bolts
that came with your winch.
CAUTION
Make sure to ONLY use the bolts that came with your winch.
6. Tightendownallbolts.
7. Use your winch manual and the wiring
instructions on page 3 and wire accordingly.
