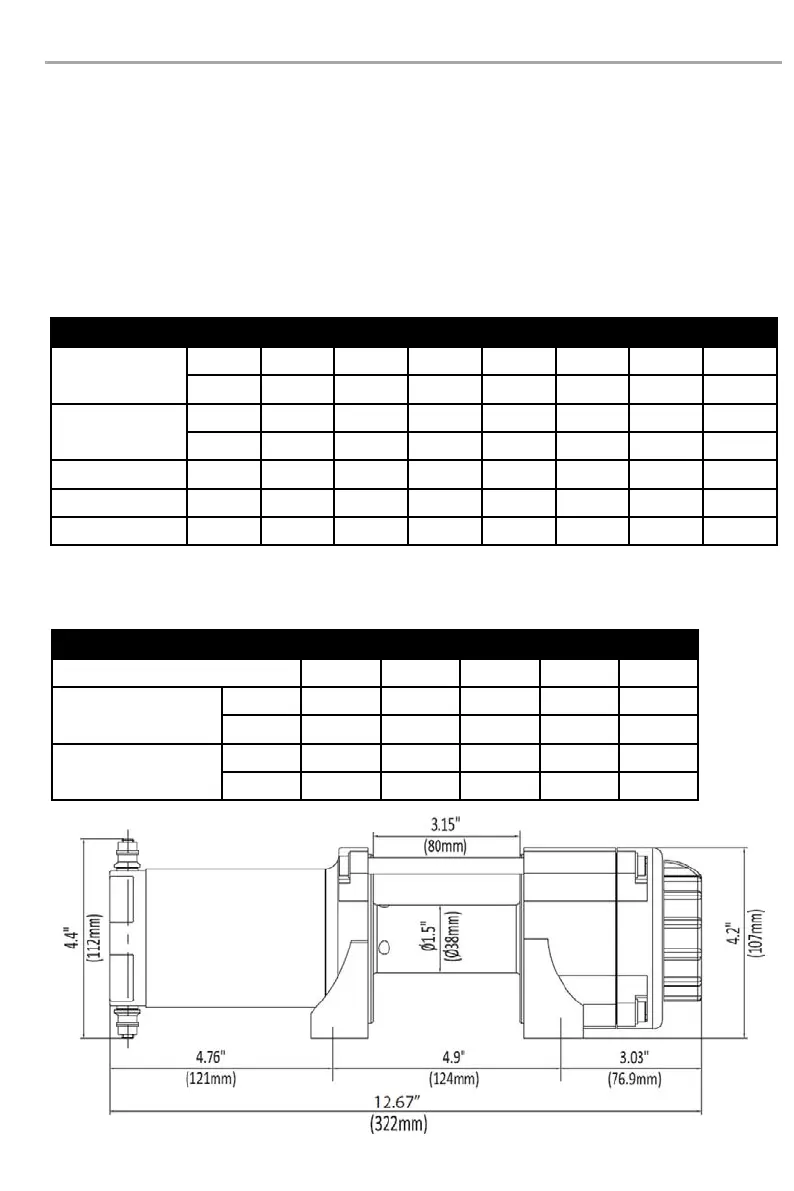

MODEL #A3000 – 3,000LB (1361KG) WINCH
SPECIfICATIONS
speCIfICaTIons
Performance:
Rated Pull ......................................... 3,000 lb (1361 kg)
Gear Reduction Ratio ............................................171:1
Motor ...................Permanent Magnet, 1.30 HP (DC 12V)
Drum Size ........................ 1.50 x 3.15 in. (38 x 80 mm)
Cable Dimensions ...... 3/16 in. x 45.9 ft. (4.8mm x 14m)
Gross Weight .................................... 24.8 lb. (11.25 kg)
Mounting Bolt Pattern ......................................................
4.88 in. x 3.00 in. (12.4 cm x 7.6 cm)
Overall Dimensions .........................................................
12.67 in. (L) x 4.06 in. (W) x 4.20 in. (H)
(32.2 cm x 11.6 cm x 10.7 cm)
Line Speed and Motor Current (First Layer)
Line Pull
LB 0 500 1000 1500 2000 2500 3000
KG 0 227 454 680 907 1134 1361
Line Speed
(12 VDC)
FPM 10.2 9.51 8.86 7.87 6.56 5.58 4.27
MPM 3.1 2.9 2.7 2.4 2.0 1.7 1.3
Max Current A 8 30.8 51.3 80.2 103.5 129 160.8
Run Time * Minutes 1 1 1 1 1 1 1
Cooling Time ** Minutes 5 5 5 5 5 5 5
* If the motor becomes uncomfortably hot to the touch, stop winching immediately and let it cool down for 5 minutes. Do not pull for
more than one minute at or near the rated load.
** Electric winches are designed and made for intermittent use and should not be used in constant duty applications.
Line Pull and Cable Capacity Per Layer
Layers of Cable on Drum 1 2 3 4 5
Rated Line Pull
LB 3000 2450 2070 1793 1581
KG 1361 1112 940 814 717
Cable Capacity
FT 7.15 15.45 24.7 34.5 45.9
M 2.18 4.71 7.52 10.52 14
