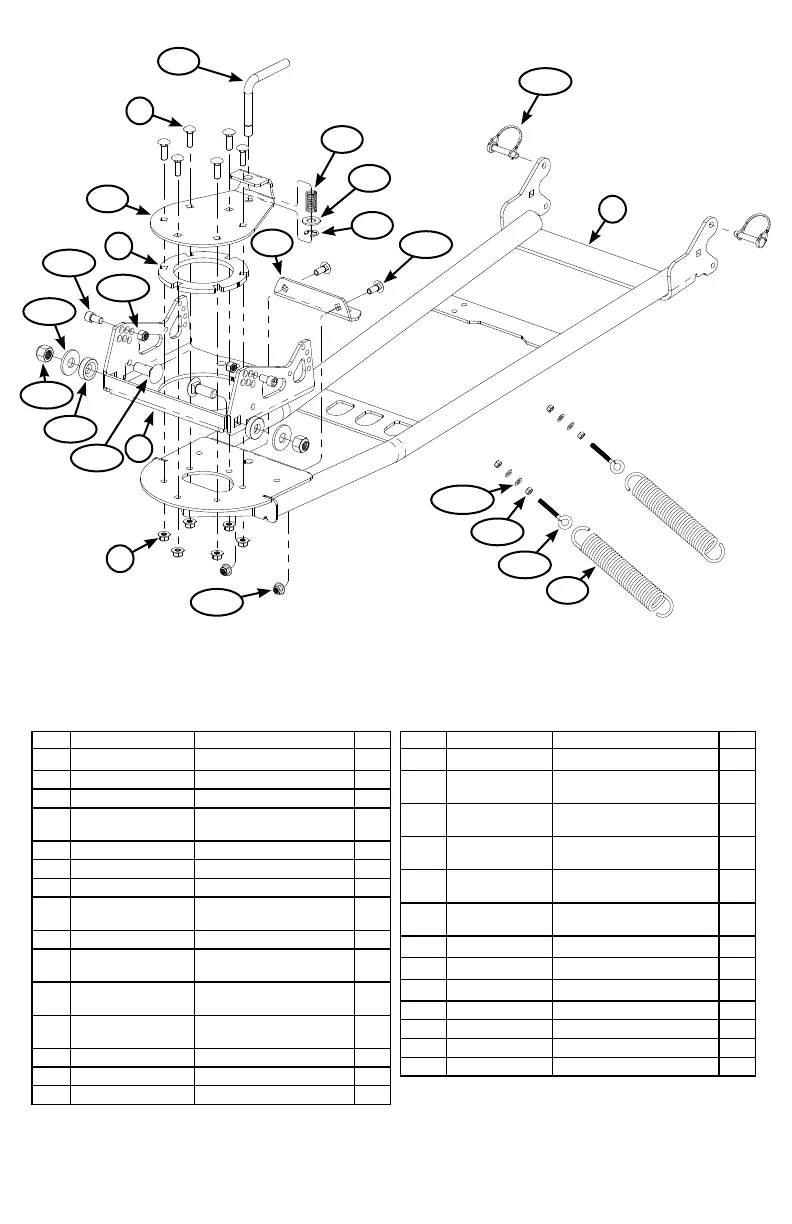

KFI OPEN TRAIL - Parts List

Page 6
4.5
5
4.1
2
7.1.1
7.1.5
7.1.3
7.1.2
7.3.1
7.1.4
3
4.2
4.4
4.3
6
7.2
7.1.6
7.1.7
1
7.3.2
7.1.9
7.1.8
7.1.10
7.4
ITEM PART# DESCRIPTION QTY.
1 105019 LIFT ARM WELDMENT 1
2 105018 PIVOT BUSHING RING 1
3 105016 ATV CRADLE 1
4 105139
LIFT LOCK LATCH
ASSEMBLY
1
4.1 105025 LIFT LOCK PLATE 1
4.2 P800267 COMPRESSION SPRING 1
4.3 P890007 9/16” FLAT WASHER, SAE 1
4.4 P800268
EXTERNAL RETAINING
RING
1
4.5 105026 PULL PIN 1
5 P890000
3/8”-16 X 1 1/4” CARRIAGE
BOLT
6
6 P890015
3/8”-16 HEX FLANGE
LOCK NUT
6
7 105150
KIT - ATV PUSH TUBE
PARTS
1
7.1 HK-365 TUBE HARDWARE KIT 1
7.1.1 HNN-Z-044-14 7/16”-14 NYLOCK NUT 2
7.1.2 HNN-Z-063-11 5/8”-11 NYLOCK NUT 2
Part# 10-5000
Parts List
This kit will also require a KFI Plow
Blade kit, a vehicle specic Plow Mount
and Winch for lifting the system.
ITEM PART# DESCRIPTION QTY.
7.1.3 FW-USS-Z-063 5/8” USS FLAT WASHER 2
7.1.4 CB-5Z-063-11-175
5/8”-11 X 1 3/4” CARRIAGE
BOLT
2
7.1.5 SHS-Z-044-14-075
7/16”-14 X 3/4” HEX S.H.C.
SCREW
2
7.1.6 HNFN-5Z-038-16
3/8”-16 HEX FLANGE LOCK
NUT
2
7.1.7 CB-5Z-038-16-150
3/8”-16 X 1 1/2” CARRIAGE
BOLT
2
7.1.8 P800249
5/16”-18 X 9/16” X 3 3/8”
EYEBOLT
2
7.1.9 HN-5Z-031-18 5/16”-18 HEX NUT 4
7.1.10 FW-SAE-Z-031 5/16” FLAT WASHER, SAE 4
7.2 105138 LIFT HOOK BRACKET 1
7.3 105209 KIT - ATV BUSHING/PIN 1
7.3.1 105214 PITCH BUSHING 2
7.3.2 P800250 SAFETY PIN 2
7.4 P800304 PLOW SPRINGS 2
