FZ-USV-230 (SXM 2540) [ENG]
Stand: 10.03.2008 page 19 from 21

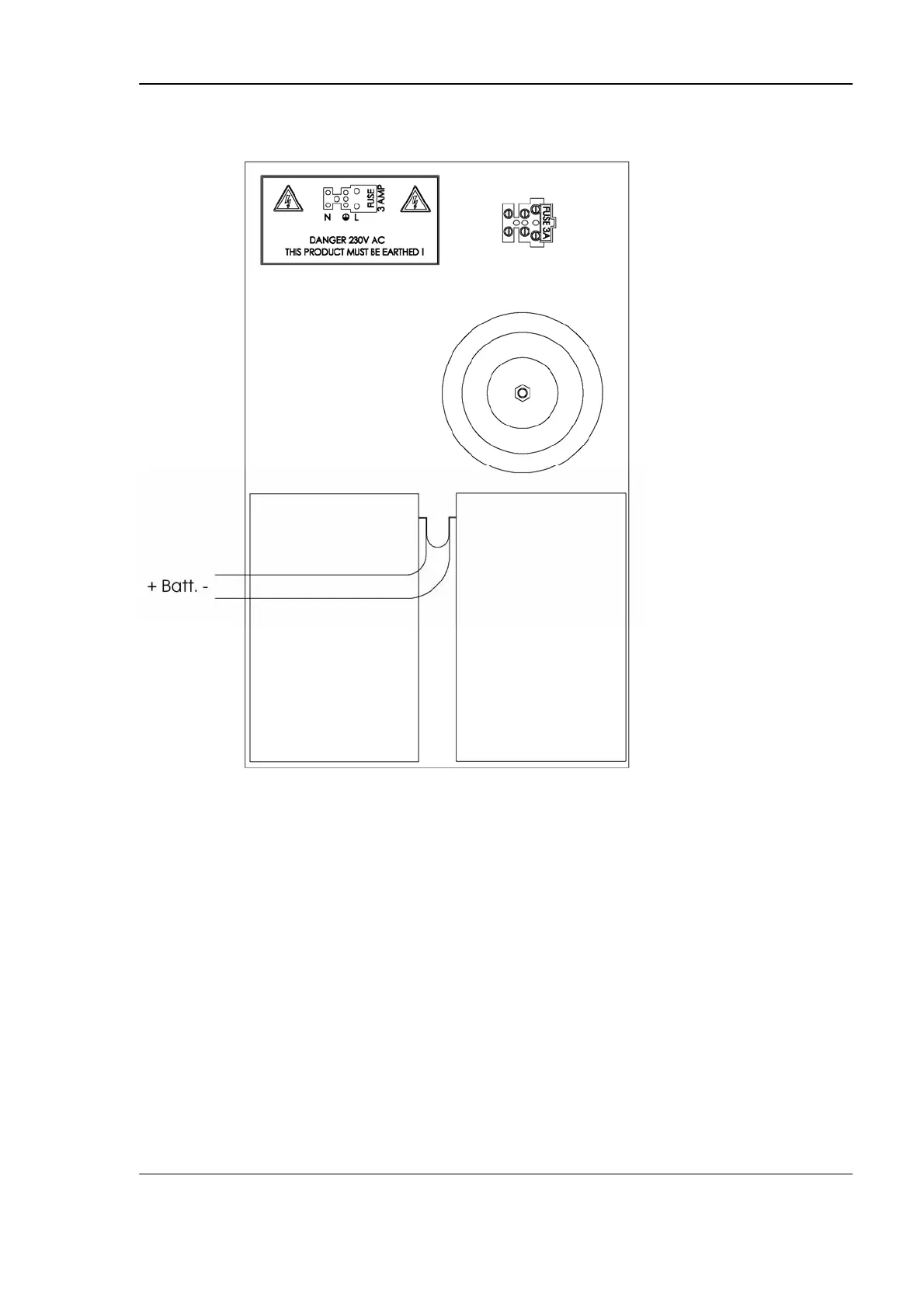

Fig. 4
If you have checked everything you can switch ON the 230VAC.
The Battery Fail relay will also be energised at this point.
Test all functions with the Genius / Fliethomatic.
See also the wiring proposal (switch-over in the daymode, Fig. 5).
