FZ-USV-230 (SXM 2540) [ENG]
Stand: 10.03.2008 page 15 from 21

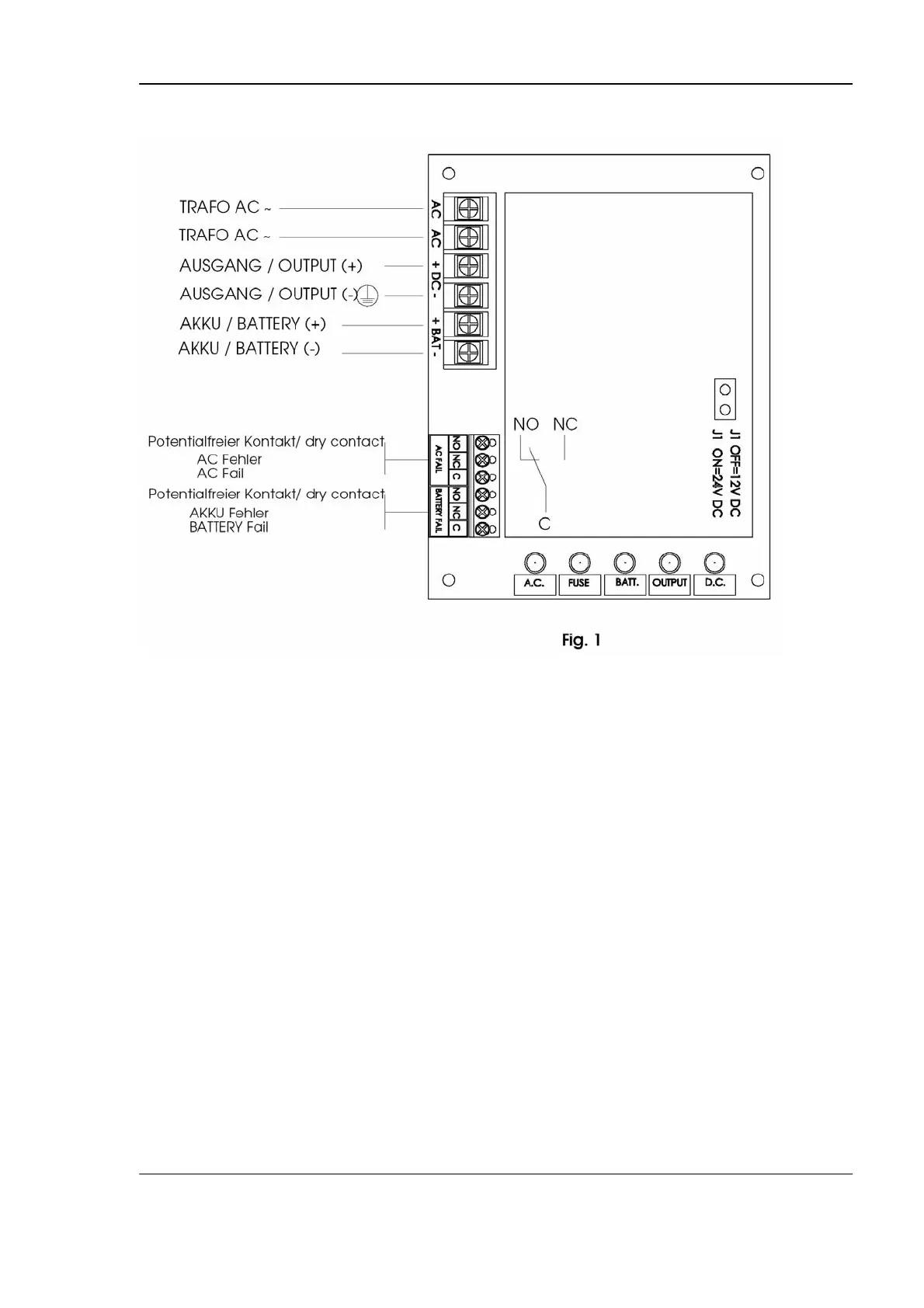

3. Terminal Assignment
4. Installation Instructions
4.1. Mounting
As a stand alone unit the power supply should be mounted in a secure dry location
in order to avoid tampering, and on a solid surface, such as a solid wall or sturdy
wooden structure. It is not intended for outdoor installation.
It should be mounted using the 3 mounting holes (drilling jig) provided, by a
suitably qualified person and in accordance with any local or National Electrical
Codes or Regulations.
