RGB Ring Light Interpretation

* In ‘S/PDIF’ input mode, playing, pausing, skipping tracks and adjusting HID volume are not suppoed.

* GPIO (I2S) input refers to input I2S signal via GPIO inteace, it's only suppoed in the Tone2 Maker Kit.

Linear fast Mini fastLinear slow Mini slow Apodizing

USB S/PDIF I2S GPIO (I2S) AUTO

Hybrid fast Brick wall

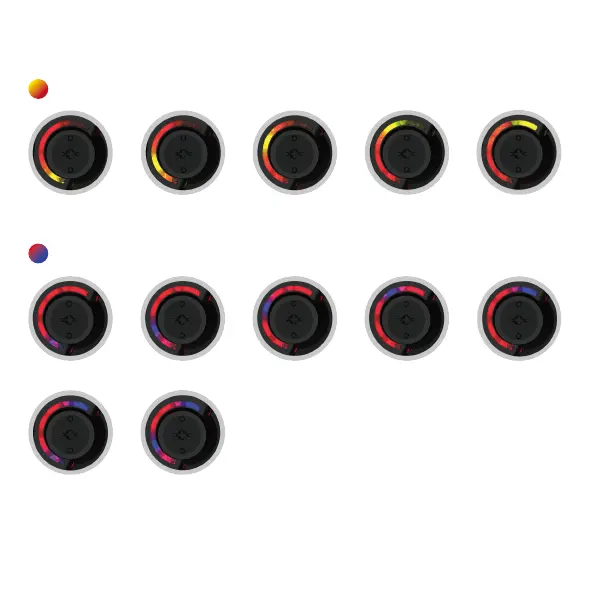

Input selection

yellow, red

Filter selection

blue, red
