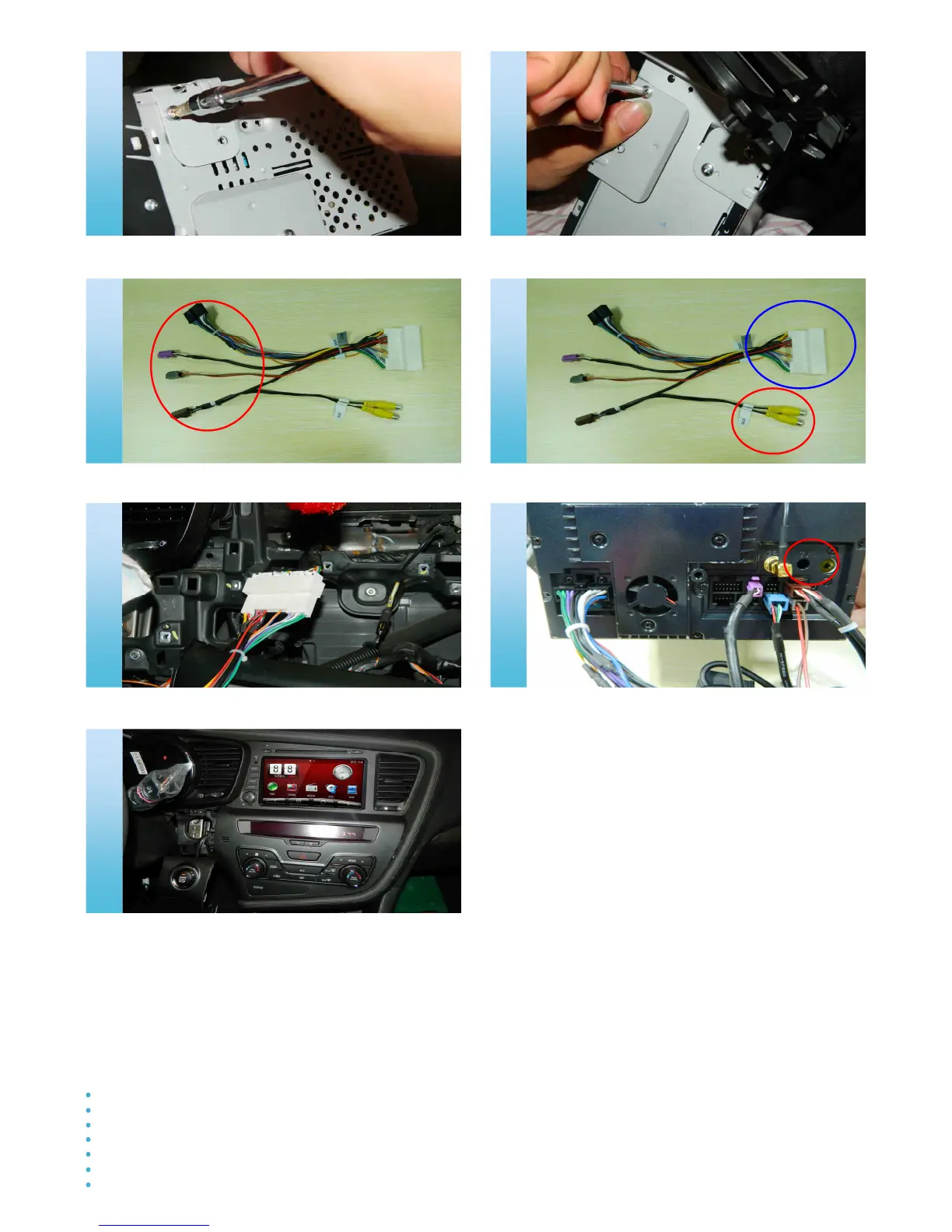

Remove the original CD holder．
．．
． Put the original holder into our machine.
It’s the special power cable, red one for our
machine.
Red on is the AV-IN joint blue one(pic23) is the
joint for original power connection.
This shows how connect the Wire. This shows the special power line. the red one
is the FM wire.
Finished.
19 20
21 22
23 24
25
Precaution:
Ensure the installation and mending is operated by professional staff.
Installation or mending by yourself may cause electric shock or other dangers, and the unit may be damaged to lose warranty.
When the connector is plugged,take care of the coupler plug. Do not pull the cable by force, or it may can not work.
Ensure to use the cables provided by factory, or it may cause fire and smoke to damage the navigation or car itself.
Please do not cut any useless wires as they are kept for future using. Ensure to protect the port with insulating tape.
In order to avoid the short circuit, please disconnect the negative pole of car battery before installing.
Ensure all the cables are scheduled well,in order to avoid effecting parts in motion like steering wheel control, geaririever, braker, slip seat, door,etc.
Install GPS Antenna：
：：
：
GPS antenna may be installed inside the car such as on the dashboard or coat rack; it may be also installed outside the bar such as the top of car
or on the trunk lid.
GPS antenna must have an open “visual field” towards the sky. If the glass of the car window is equipped with explosion-proof film or heat insulation
film, it might greatly reduce the receiving strength; in that case it’s advised to install the GPS antenna outside the car.
