ENGINE COMPARTMENT

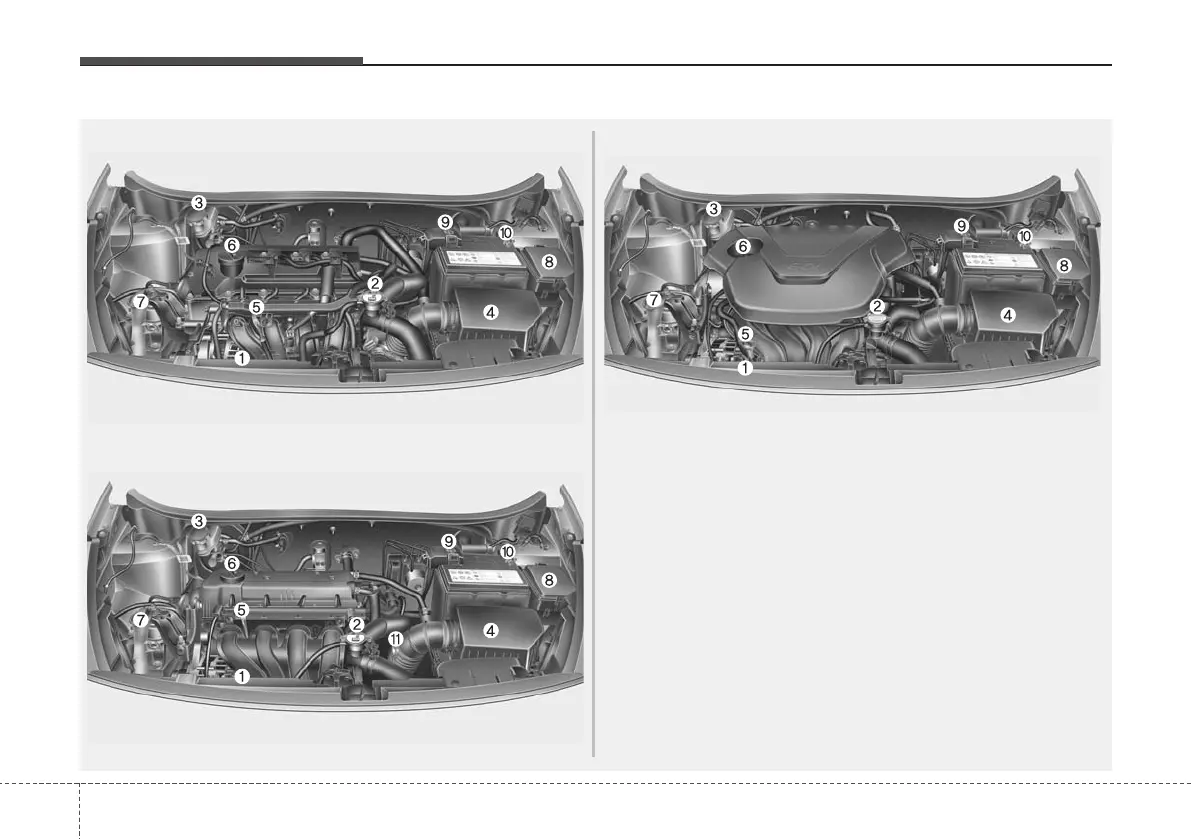

OUB071102R/OUB071001R/OUB071103R
1. Engine coolant reservoir .........................................7-47
2. Radiator cap............................................................7-49
3. Brake fluid reservoir ................................................7-50
4. Air cleaner ...............................................................7-55
5. Engine oil dipstick ...................................................7-45
6. Engine oil filler cap..................................................7-45
7. Windscreen washer fluid reservoir..........................7-54
8. Fuse box .................................................................7-76
9. Positive battery terminal..........................................7-62
10. Negative battery terminal......................................7-62
11. Automatic transaxle fluid dipstick*.........................7-51
* : if equipped
❈ The actual engine compartment in the vehicle may differ
from the illustration.
■■
Petrol Engine (1.25L)
■■
Petrol Engine (1.4L)
■■
Petrol Engine (1.6L)
