KIC 2000 v2.4.0.x
4 KIC 2000 User Manual
KIC 2000 Profiler Hardware
The KIC 2000 software can be used with 2 different KIC profilers the SlimKIC 2000 and the KIC Explorer.
The KIC 2000 software is designed to operate the same regardless of what profiler is being used. Upon
software installation the user selects the KIC profiler that they are using. Then the software will depict
profiler-model specific text and artwork for your KIC profiler.
The KIC 2000 profiler comes standard with 9 thermocouple channels, 12 channels optional, and is available
as a Data Logger, or RF model. Available accessories include Wave Surfer, KIC Carrier, and various
thermal shields. See the SlimKIC 2000 section for more information, page 92.

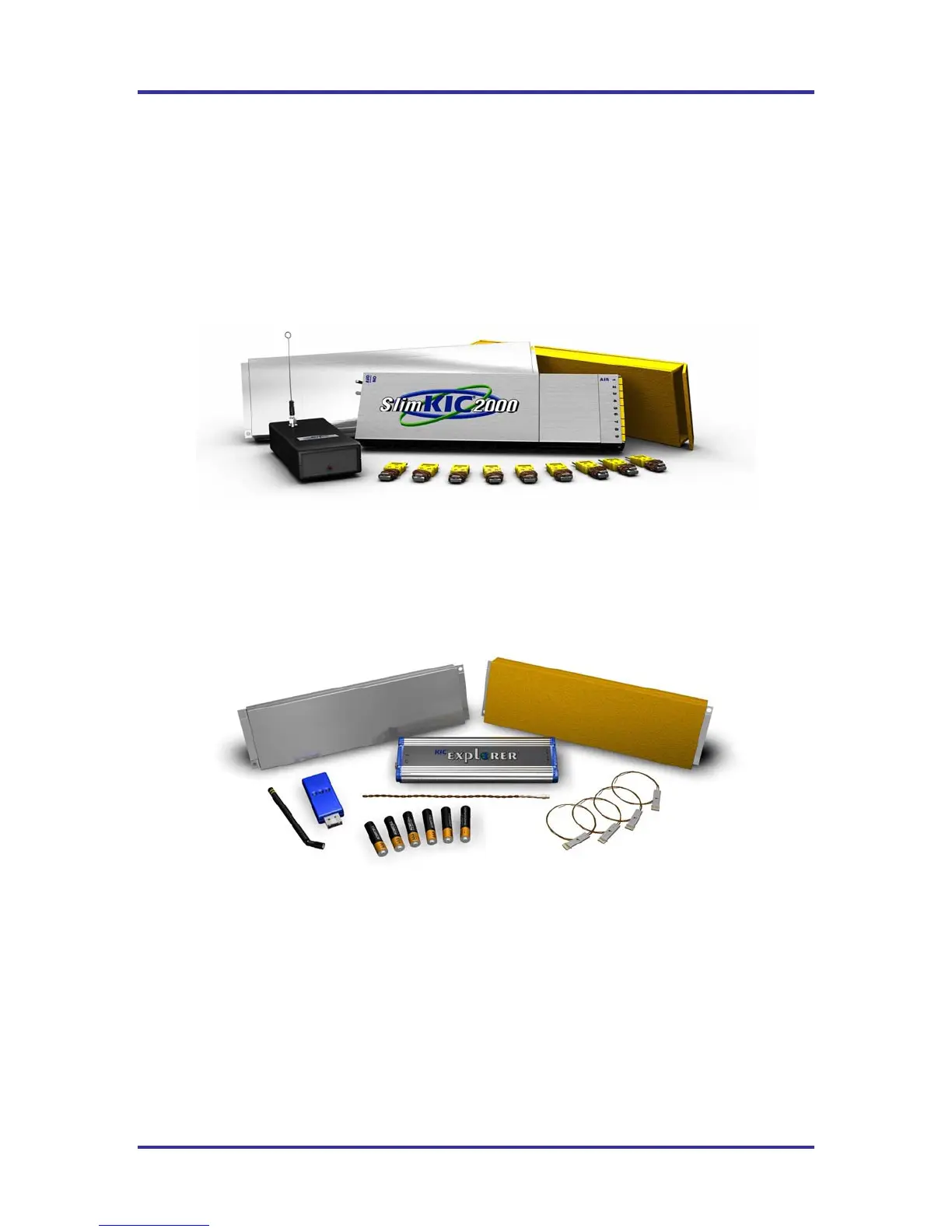

Figure 1: Example SlimKIC 2000 product kit
The KIC Explorer comes with your choice of 12 or 7 channels models. As a standard feature, the
KIC Explorer has 12 thermocouple inputs. The miniature-TC harness design makes this possible. If you
prefer to use Type-K thermocouples, the KIC Explorer is available in a standard Type-K, 7-channel model
as well. See the KIC Explorer section for more information, page 96.
Figure 2: Example KIC Explorer 12 Channel product kit
Both the 12 and 7 channel KIC Explorer models can be used as a data logger and with the additional RF
hardware they can both communicate wirelessly with the KIC 2000 software.
Throughout this user manual both KIC Profilers will be discussed. Where applicable the differences
between KIC Profilers and there features will be outlined.
