Starting KIC 2000

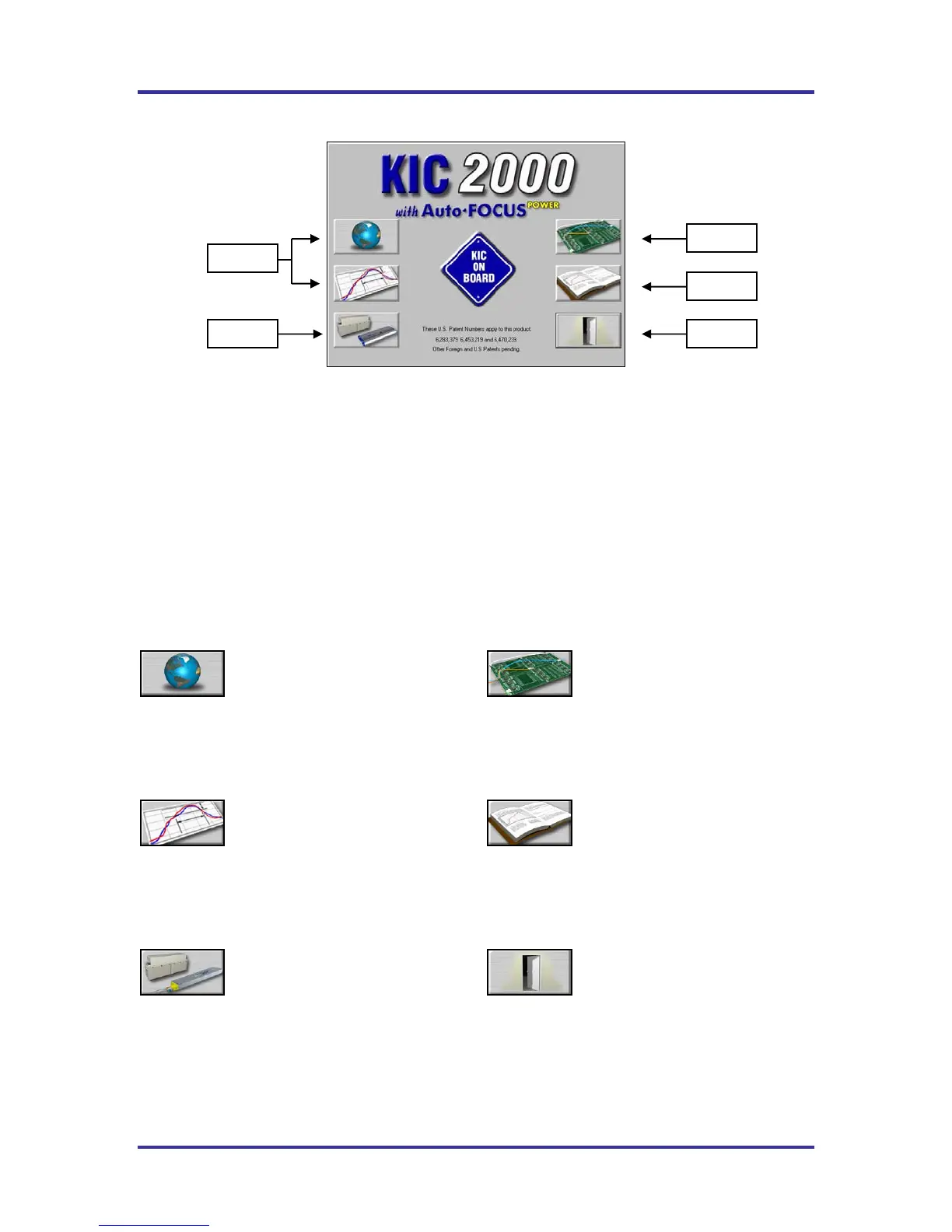

Figure 24: KIC 2000 Main Screen
The installation automatically adds a KIC folder to main Windows Start Menu. Click on the Windows Start
and scroll up to the KIC folder. Then click on the KIC 2000 icon. The KIC 2000 Main Menu should say
“with NAVIGATOR” if you have purchased the Navigator option and installed the software key correctly,
and “with Auto-Focus” if you purchased the Auto-Focus option.
If you have purchased the Power option(s); The KIC 2000 Main Menu should say “with NAVIGATOR
Power” if you purchased only the Navigator and Power options, and “with Auto-Focus Power” If you
have purchased the Auto-Focus and Power options or the Auto-Focus, Navigator and Power options. See
Figure 24.
There are six buttons on the KIC 2000 Main Menu. The buttons on the Left are for setup and status; the
buttons on the Right are for running and viewing profiles and exiting the software. See the descriptions of
the function for each button below.
Global Preferences
Set units of measure, Maximum
product start temperature, Oven
name, Password.
Define/Edit Process Window
Create or edit Process Window
files for solder paste and profile
specifications.
Hardware Status
Show status of the Oven
controller (if applicable),
SlimKIC 2000 or KIC Explorer,
and optional software key.
Run a Profile
Begins the step-by-step procedure
for running a product profile.
Profile Explorer
Filing system used to manage and
view all profiles run using the
KIC 2000 software.
Exit
Exits the KIC 2000 software.
SETUP
STATUS
RUN
VIEW
EXIT
