ASSEMBLY INSTRUCTIONS
8 9

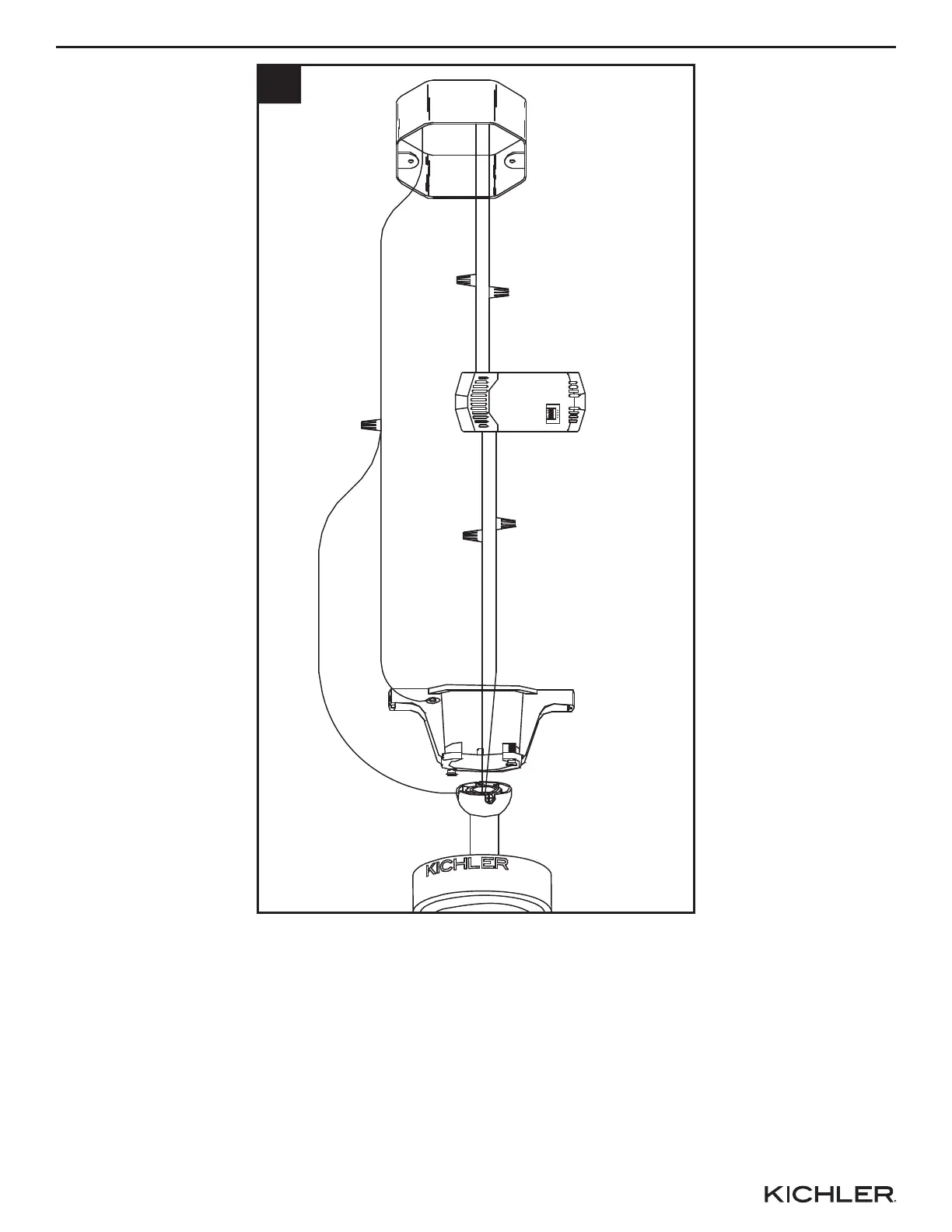

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
OUTLET BOX
BLACK
(LIVE)
WHITE
(NEUTRAL)
BLACK
(AC
INPUT)
WHITE
(AC
INPUT)
BARE COPPER
(GROUND)
GREEN (BRACKET)
GREEN (DOWN ROD)
WHITE
(NEUTURAL)
BLACK (MOTOR) BLACK
WHITE
To Next Page
