Kicker CompVR User Manual

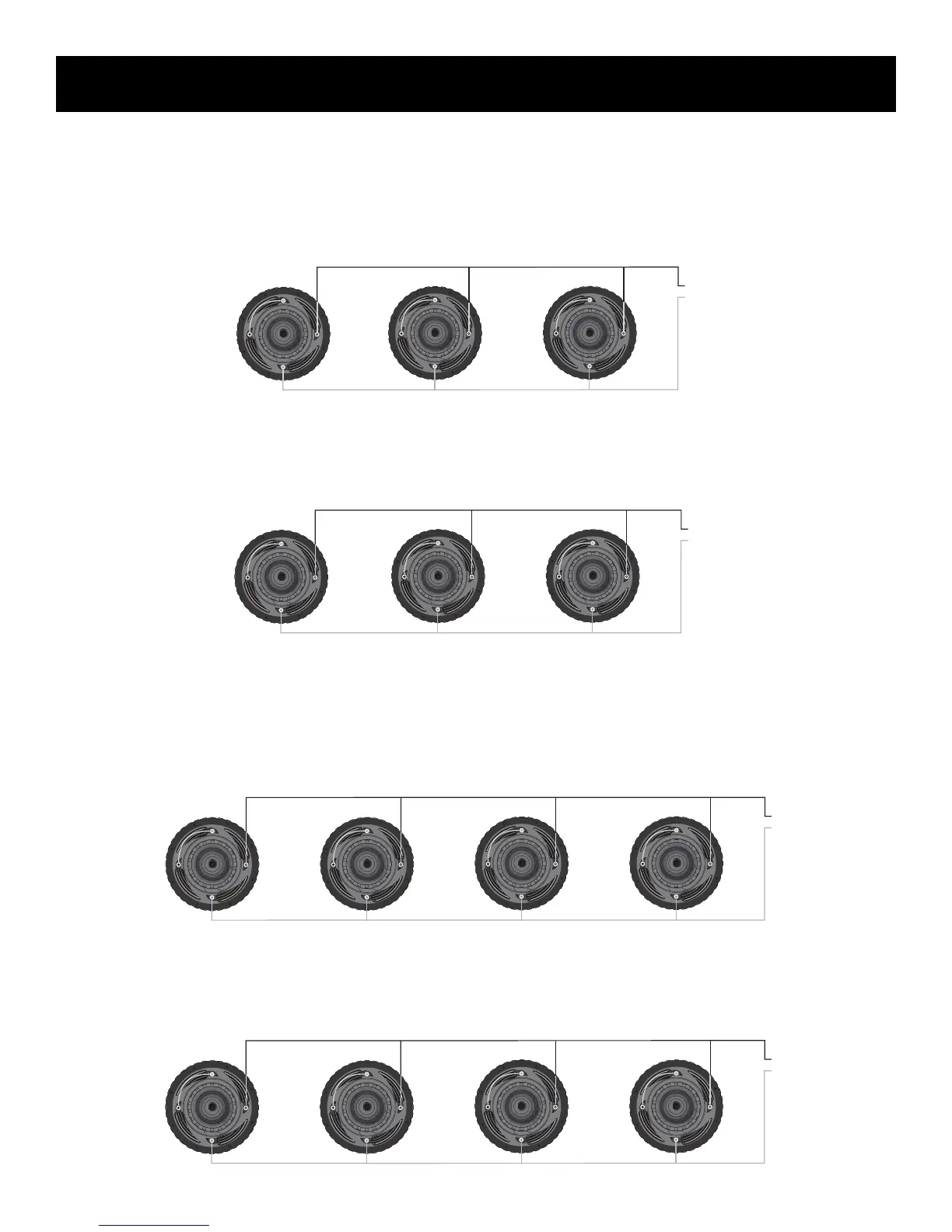

SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL
Using Dual 2 Ohm Voice Coils
4 4 4 = 1 OHM
To
Amplifier
+
-
Using Dual 4 Ohm Voice Coils
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
8 8 8 = 2 OHM
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL
Using Dual 2 Ohm Voice Coils
4 4 4 4 = 1 OHM
To
Amplifier
+
-
Using Dual 4 Ohm Voice Coils
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
8 8 8 8 = 2 OHM
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Wiring Options cont.
Kicker CompVR Subwoofers
Recommended Applications
Page 18

Kicker CompVR Specifications

General

Product type	Subwoofer driver
Subwoofer type	-
Subwoofer peak power	800 W
Subwoofer sensitivity	86.9 dB
Subwoofer driver diameter	30 mm
Subwoofer frequency range	25 - 500 Hz
Subwoofer driver diameter (imperial)	12 \
Product color	Black
Voice coil type	Dual
Interface	Terminal

Weight and Dimensions

Width	- mm
