POWER HANDLING:
75W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 50W
.80 cf, Fb=40Hz
.14 cf = Port Vol.

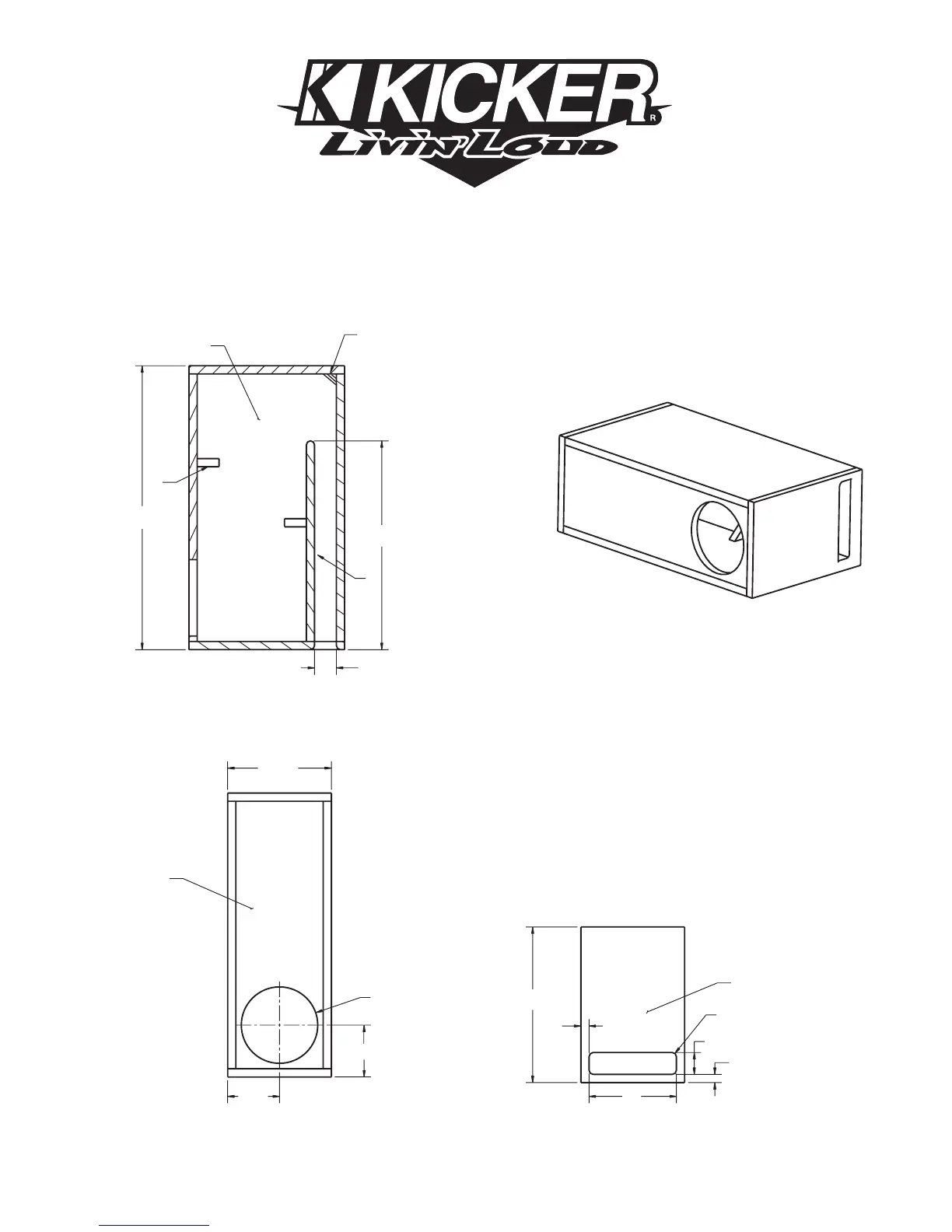

CompVR8-BOX-VENTED-080
Side View
Front View
Cut List: 3/4" MDF
(2) 11 5/8" x 9 1/2" Top & Bottom(A)
(2) 11 5/8" x 22" Sides(B)
(2) 8" x 22" Front & Back(C)
(1) 8" x 20" Port(D)
(4) 2" x 2" Gusset(E)
(1) 1 x 1 Corner Filet (F)
1-1/2
20-3/4
23-1/2
B
D
E
9 1/2
C
7
4 3/4
4 3/4
11-5/8
3/4
A
R 3/8
1-1/2
3/4
8
∅
F
