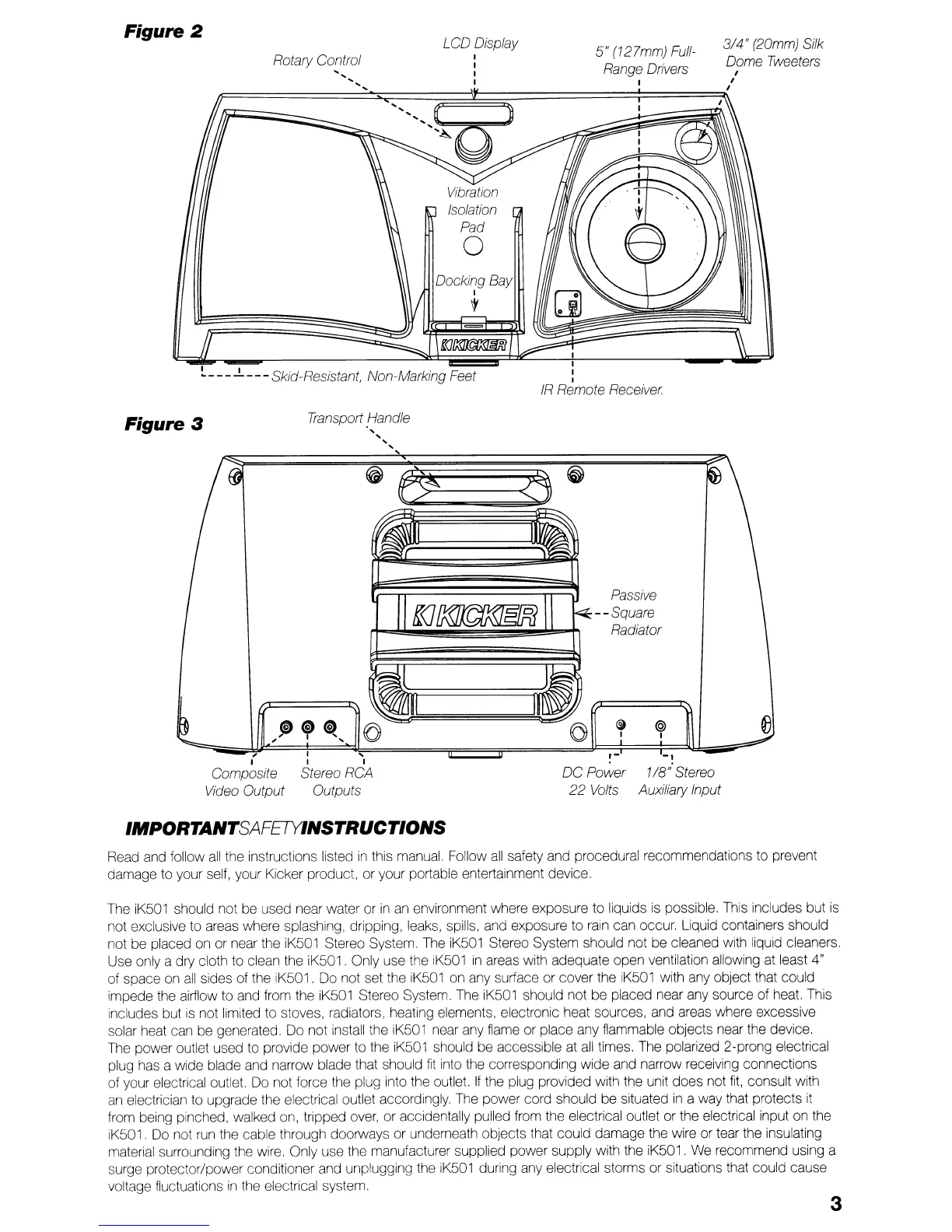

3/4"
(20mm)
Silk
Dome
Tweeters
I
I
I
5"
(727mm)
Full-
Range
Drivers
I
I
I
I
IR
Remote
Receiver.
LCD
Display
I
I
I
I
Rotary Control
,
,
,
"
~
- - -
J...
- - - Skid-Resistant, Non-Marking
Feet
Figure 2
@
I
-,
1/8'"
Stereo
Auxiliary
Input
~
I
,-
Passive
---Square
Radiator
DC Power
22
Volts
Transport
.Handle
,
,
,
"
I ,
I I
Stereo
RCA
Outputs
~
I
Composite
Video
Output
Figure 3
IMPORTANTSAFETYINSTRUCTIONS
Read and follow
all
the instructions listed
in
this manual. Follow
all
safety and procedural recommendations to prevent
damage to your self, your Kicker product, or your portable entertainment device.
The iK501 should not be used near water or
in
an
environment where exposure to liquids is possible. This includes but
is
not exclusive to areas where splashing, dripping, leaks, spills, and exposure to rain can occur, Liquid containers should
not be placed on or near the iK501 Stereo System, The
iK501
Stereo System should not be cleaned with liquid cleaners,
Use only a dry cloth to clean the iK501 , Only use the iK501
in
areas with adequate open ventilation allowing
at
least 4"
of space on
all
sides of the iK501, Do not set the iK501 on any surface or cover the iK501 with any object that could
impede the airflow to and from the iK501 Stereo System. The iK501 should not be placed near any source of heat. This
includes but is not limited to stoves, radiators, heating elements, electronic heat sources, and areas where excessive
solar heat can be generated. Do not install the iK501 near any flame or place any flammable objects near the device,
The power outlet used to provide power to the iK501 should be accessible at
all
times. The polarized 2-prong electrical
plug has a wide blade and narrow blade that should
fit
into the corresponding wide and narrow receiving connections
of your electrical outlet. Do not force the plug into the outlet.
If
the plug provided with the unit does not
fit,
consult with
an
electrician to upgrade the electrical outlet accordingly, The power cord should be situated
in
a way that protects
it
from being pinched, walked on, tripped over, or accidentally pulled from the electrical outlet or the electrical input
on
the
iK501,
00
not
run
the cable through doorways or underneath objects that could damage the wire or tear the insulating
material surrounding the wire, Only use the manufacturer supplied power supply with the iK501 . We recommend using a
surge protector/power conditioner and unplugging the iK501 during any electrical storms or situations that could cause
voltage fluctuations
in
the electrical system,
3
