2 3
SOURCE
FAVORITES
MENU
FRONT
OUTPUTS
REAR
OUTPUTS
POWER AND AUDIO
OUTPUTS
INPUTS
1 2 3 4 5

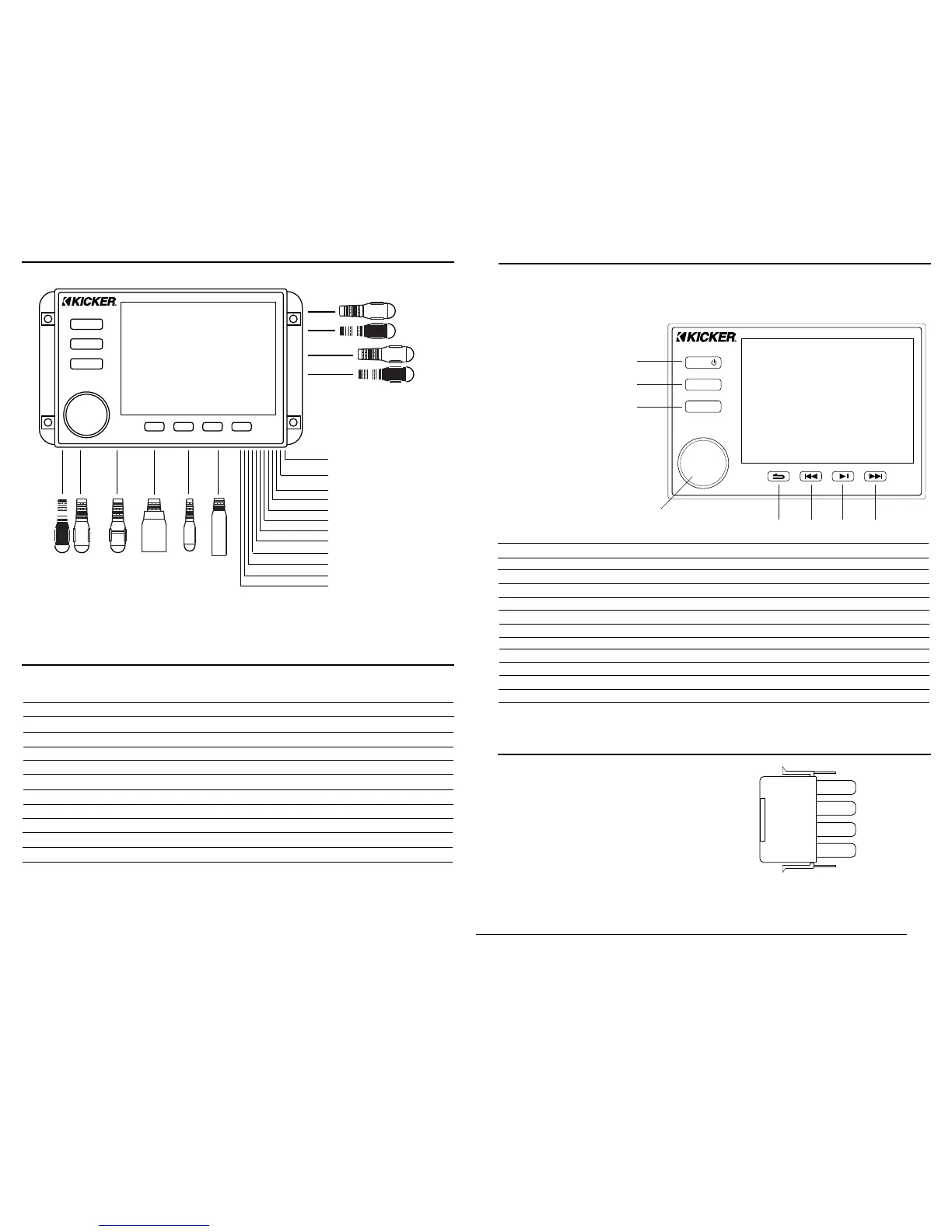

OVERVIEW:
1 - Auxiliary Input
2 - KRC15 Remote Port (5-PIN)
3 - USB Input (Audio Only)
4 - PXIRCX Remote Port
5 - Antenna Input
WIRING COLOR CODES
INSTALLATION OVERVIEW
Black = Ground
Red = Accessory 12V (Switched)
Orange = Illumination (100mA Max)
Blue/White = Amplier Turn-On
White = Left Front (+)
White/Black = Left Front (-)
Gray = Right Front (+)
Gray/Black = Right Front (-)
Green = Left Rear (+)
Green/Black = Left Rear (-)
Purple = Right Rear (+)
Purple/Black = Right Rear (-)
HOW TO NAVIGATE THE KMC10
The button layout below will give you a quick overview of the button functionality and
how to use them. The Warning display will last approximately 25 seconds.
SOURCE
FAVORITES
MENU
DISPLAY
4 5 6 7
1
2
3
8
BUTTONS:
1 - Source
2 - Favorites
3 - Menu
4 - Back
5 - Seek/Tune Down
6 - Play/Pause
7 - Seek/Tune Up
8 - Volume Knob
Function: How To:
Power On Press the Source (1) button once.
Power O Hold the Source (1) button for 2 seconds.
Volume Up Turn the knob (8) clockwise.
Volume Down Turn the knob (8) counter-clockwise.
Seek Up Press Seek Up (7) once.
Seek Down Press Seek Down (5) once.
Tune Up Hold down Seek Up (7).
Tune Down Hold down Seek Down (5)
Enter/Select Press the Knob (8) inward once.
Pause/Play Press Play/Pause (6) once.
Mute Press Play/Pause (6) once.
Back Press Back (4) once.
Note: The MUTE option is only available on the following sources:
AM - FM - WX - AUX
12-PIN CONNECTOR
The White 12-Pin connector on the KMC10
harness is a universal connector.
If the connector is not suited for your installation
type, we recommend using the supplied wiring
harness pigtail.
Part Number: 1-4807008-0
