Kidde Fire Systems FM-200 ECS Series User Manual

3-290-FM200M-000 September 2004
FM-200
®
ECS Series Engineered Fire Suppression Systems
Valve
Corner
Pulley
Nozzle
Pull Station
Pressure
Gauge
FM-200
Cylinder
Cable Operated
ControlHead
FOR FIRE
BREAK GLASS PULL HANDLE
PULL HARD

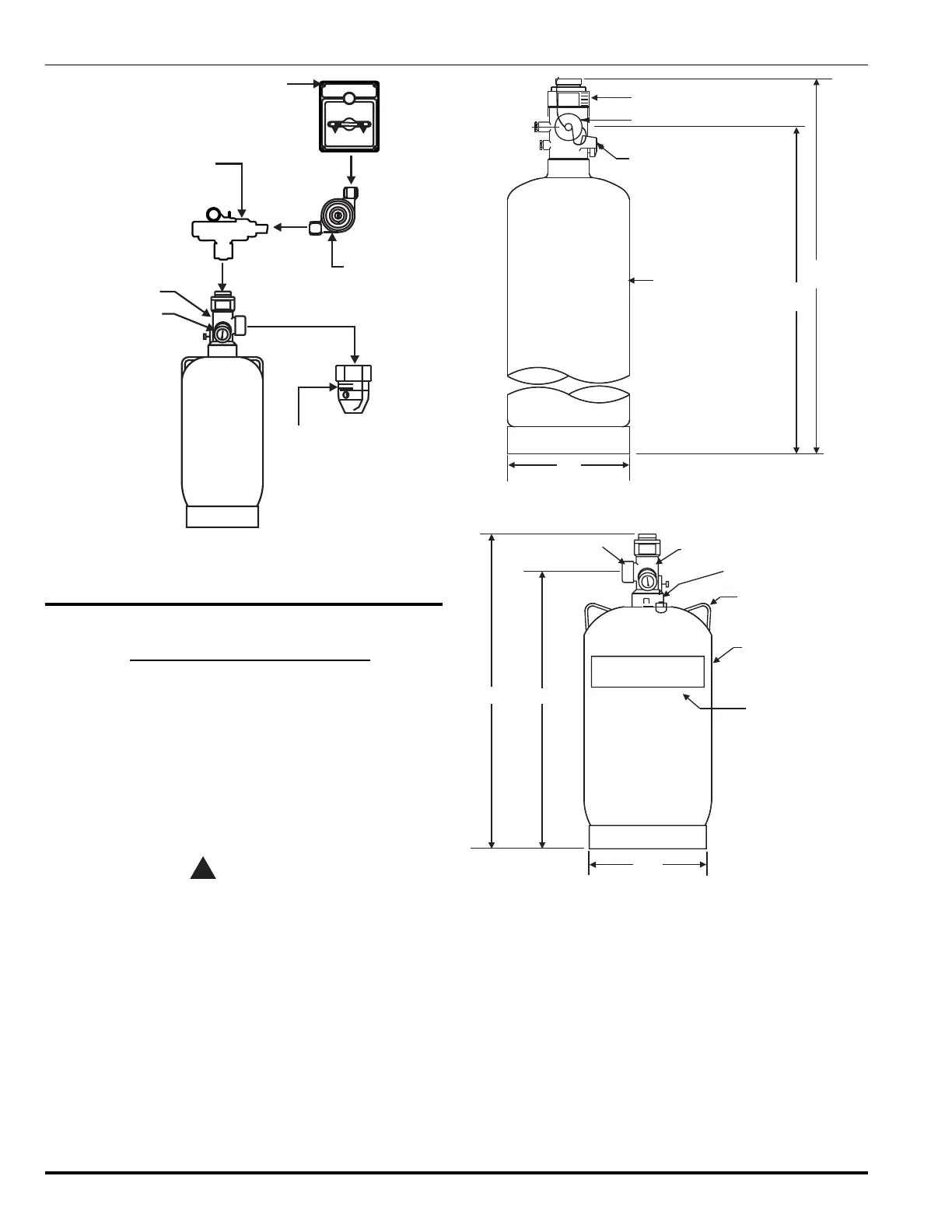

Figure 3-2. Typical FM-200 System with
Cable Operated Control Head
3-3 COMPONENT DESCRIPTIONS
3-3.1 FM-200 Cylinder/Valve Assemblies
FM-200 is stored in steel cylinders as a liquid,
superpressurized with nitrogen to 360 PSIG at 70°F
(25 bar gauge at 21°C). The cylinder valve assembly is
equipped with a supervisory pressure switch connection
for monitoring cylinder pressure, a pressure gauge and a
safety burst disc in compliance with DOT requirements.
In addition, each cylinder/valve assembly is provided with
a safety cap and a protection cap which is a safety feature
to prevent uncontrolled, accidental discharge.
WARNING
!
The safety cap must be installed on the
discharge outlet whenever a charged cylinder/
valve assembly is not connected to the system
piping. Failure to install the safety cap could
result in violent movement of the container in
the event of inadvertent actuation. Failure to
follow these instructions could cause personal
injury and/or property damage.
Figures 3-3 through 3-5 represent typical cylinder assemblies.
Table 3-3 on the following pages for cylinder dimensions.
PRESSURE GAUGE
CYLINDER
TUBE OPEN END
180 APART FROM SYPHON
A
B
C
CYLINDER VALVE
SAFETY CAP
Figure 3-3. Typical Cylinder Assembly, 10 to 70 lb.
CYLINDER VALVE
LIQUID LEVEL INDICATOR
LIFTING LUGS
CYLINDER
NAMEPLATE
CYLINDER
SAFETY CAP
C
B
A
Figure 3-4. Typical Cylinder Assembly, 100 to 350 lb.
