3-3September 2004 90-FM200M-000
FM-200
®
ECS Series Engineered Fire Suppression Systems
VALVE ORIENTATION
PLAN VIEW
SAFETY BURST
DISC ASSEMBLY
A
B
C

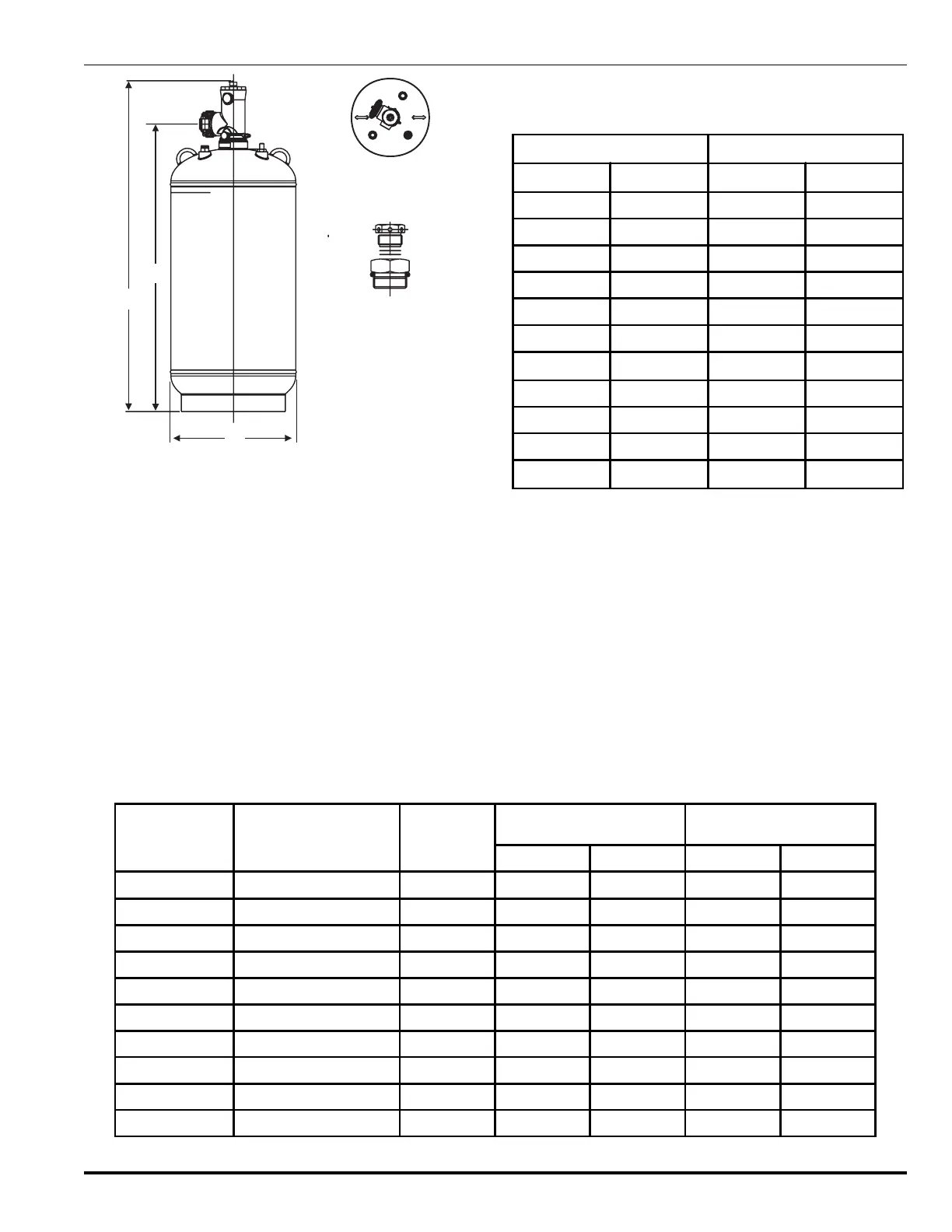

Figure 3-5. 600 and 900 lb. Cylinder with 3" Valve
The Kidde FM-200 ECS Engineered Fire Suppression Sys-
tem equipment listed herein is designed for an operating
temperature range of 32°F to 130°F (0°C to 54°C).
Table 3-1 shows the container temperature-pressure rela-
tionship based on a maximum fill density of 70 lb./ft.
3
(1121 kg/m
3
). The Kidde ECS Series FM-200 Flow Calcu-
lation Program is designed for a 70°F (21°C) container op-
erating/storage temperature. Therefore, the container
operating and storage temperature must be in the range of
60°F to 80°F (16°C to 27°C) for a single unbalanced sys-
tem protecting two or more separate hazards. If the con-
tainer operating and storage temperature is outside this
range, an insufficient quantity of agent may be discharged
from one or more discharge nozzles.
Table 3-1. Container Temperature-Pressure Correlation
(Based on a cylinder fill density of
70 lb./ft.
3
or 1121 kg/m
3
)
Temperature Nominal Charge, Pressure
°F °C PSIG Bar
32 0 288 19.9
40 4.4 303 20.9
50 10.0 321 22.2
60 15.6 340 23.5
70 21.1 360 24.8
80 26.7 381 26.3
90 32.2 402 27.7
100 37.8 425 29.3
110 43.3 449 31.0
120 48.9 475 32.7
130 54.4 502 34.6
If desired, the 125, 200, 350, 600 and 900 lb. cylinders can
be provided with an integral liquid level indicator (see
Paragraph 3-3.2).
As a reference guide, Table 3-2 provides the equivalent
lengths for all the Kidde FM-200 ECS Engineered System
cylinder and valve assemblies. The numbers shown in the
table represent the equivalent length through the cylinder
valve with the flex hose or without the flex hose, depending
on the application. This table can also be found in the Kidde
ECS Series FM-200 Flow Calculation Program. Tables 3-3
and 3-4 (on the following pages) show the dimensions and
fill range for cylinder/valve assemblies in vertical installa-
tions.
Table 3-2. Cylinder, Equivalent Lengths
Part Number Nomenclature
Discharge
Outlet
Equivalent Length
w/o Flex Hose
Equivalent Length
w/ Flex Hose
ft. m ft. m
90-100010-001 10 lb. Cylinder 1½" 61.8 18.84 65.0 19.81
90-100020-001 20 lb. Cylinder 1½" 61.8 18.84 65.0 19.81
90-100040-001 40 lb. Cylinder 1½" 61.8 18.84 65.0 19.81
90-100070-001 70 lb. Cylinder 1½" 61.8 18.84 65.0 19.81
90-10012X-001 125 lb. Cylinder 1½" 61.8 18.84 65.0 19.81
90-10020X-001 200 lb. Cylinder 2" 59.0 17.98 65.0 19.81
90-10035X-001 350 lb. Cylinder 2" 59.0 17.98 65.0 19.81
90-10060X-001 600 lb. Cylinder (old style) 2½" 59.0 17.98 65.0 19.81
90-10060X-100 600 lb. Cylinder (new style) 3" 50.0 15.00 80.0 24.00
90-10090X-001 900 lb. Cylinder 3" 50.0 15.00 80.0 24.00
Note: All equivalent lengths given in schedule 40, black pipe.
