FM-200
®
ECS Series Engineered Fire Suppression Systems

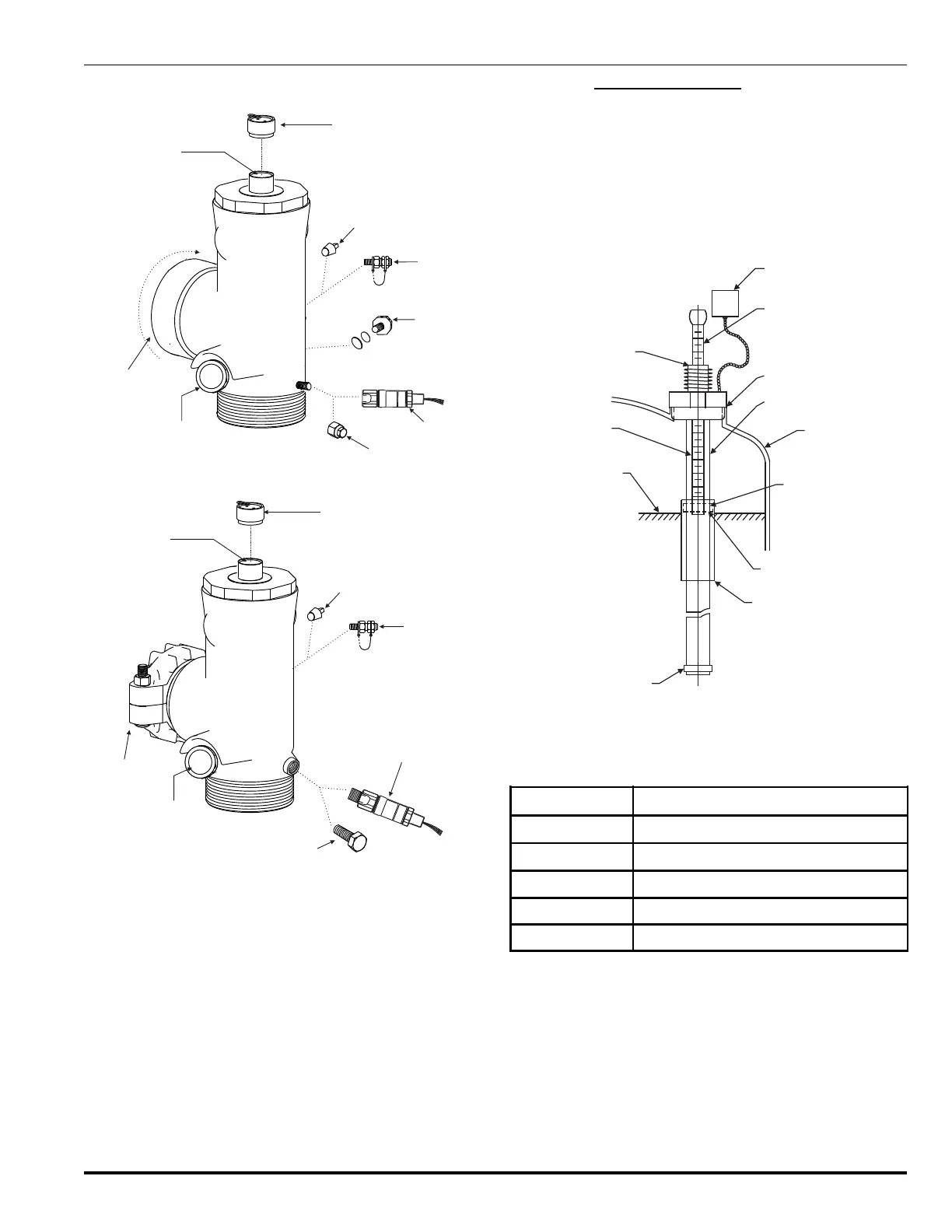

Figures 3-6 and 3-7 represent the 1½" through 3" valve
arrangements.
PRO CAP
ACTUATION
PORT
SAFETY
DISC
(PORT ON REAR)
PRESSURE
SWITCH
PRESSURE
INDICATOR
OUTLET
PROTECTION
CAP
MASTER CYLINDER
ADAPTER KIT
(PORT ON REAR)
SAFETY
CAP
PLUG
(PORT ON REAR)
USE PLUG OR
MASTER CYLINDER
ADAPTER KIT
USE PRESSURE SWITCH
OR SAFETY CAP
Figure 3-6. 1½", 2" and 2½" Valve General Arrangement
MASTER CYLINDER
ADAPTER KIT
(PORT ON REAR)
PLUG
(PORT ON REAR)
USE PLUG OR
MASTER CYLINDER
ADAPTER KIT
PRO CAP
ACTUATION
PORT
PRESSURE
SWITCH
SAFETY
CAP
USE PRESSURE SWITCH
OR SAFETY CAP
PRESSURE
INDICATOR
VICTAULIC
FITTING AND PLUG
Figure 3-7. 3" Valve General Arrangement
3-3.2 Liquid Level Indicator
The optional liquid level indicator consists of a hollow metal
tube inserted into a special fitting in the top of the 125, 200,
350, 600 or 900 lb. FM-200 cylinder. See Table 3-5 for part
number information. The indicator is provided with a gradu-
ated tape which senses the position of a toroidal magnet
encased within an internal float riding on the liquid surface.
The graduations on the tape indicate the liquid level within
the cylinder (see Figure 3-8).
CAP
GRADUATED TAPE
SHOWN IN MAGNETIC
INTERLOCK POSITION
READY TO TAKE
READING.
O-RING
BRASS TUBE
FM-200
CYLINDER
TAPE INSIDE
BRASS TUBE
READING TAKEN AT TOP
EDGE OF FITTING
MAGNETIC END OF
TAPE ENGAGES
IN MAGNETIC FIELD
OF FLOAT WHEN
TAPE IS PULLED
UP TO TAKE READING.
MAGNET EMBEDDED
IN FLOAT.
FLOAT - FLOATS ON SURFACE
OF LIQUID FM-200.
FREE TO MOVE UP OR DOWN
OUTSIDE OF BRASS TUBE.
FM-200
LIQUID LEVEL
RETAINER - FLOAT RESTS
HERE WHEN CYLINER
IS EMPTY.
Figure 3-8. Liquid Level Indicator
Table 3-5. Liquid Level Indicator Part Numbers
Cylinder Liquid Level Tape Part Number
125 235681
200 283894
350 283894
600 283894
900 06-118266-001
