Kidde Fire Systems FM-200 ECS Series User Manual

3-690-FM200M-000 September 2004
FM-200
®
ECS Series Engineered Fire Suppression Systems
Table 3-6. DimensionsCylinder Mounting Straps
Part Number
Cylinder
Size
Cylinder O.D.
Dimensions*
lb. ABCDEF
283945 10, 20 7.07 6.48 9.62 8.62 1.00 2.78 0.437
283934 40, 70 9.00 8.16 11.69 10.69 1.00 3.50 0.437
292971
125, 200
old style
13.60 13.09 17.06 15.44 1.75 6.06 0.625
235317
125, 200
new style
12.75 12.94 16.18 14.56 1.75 5.59 0.625
281866 350 16.00 15.50 19.50 17.88 1.75 7.25 0.625
294651 600 22.00 21.56 25.75 24.12 1.75 10.25 0.625
236125 900 24.00 24.83 27.75 26.00 1.75 12.13 0.625
*Note: Dimensions are in inches.
Table 3-7. DimensionsCylinder Mounting Straps, Metric
Part Number
Cylinder
Size
Cylinder O.D.
Dimensions*
lb. A B C D E F
283945 10, 20 180 165 244 219 25 71 11
283934 40, 70 229 207 297 272 25 89 11
292971 125, 200 345 332 433 392 44 154 16
281866 350 406 394 495 454 44 184 16
294651 600 559 548 654 613 44 260 16
236125 900 610 619 705 660 44 308 16
*Note: Dimensions are in millimeters.
3-3.3 Cylinder Mounting Equipment
Steel straps and brackets are used to mount the cylinders
in a vertical position.
Cylinder straps (P/N 283945, 283934, 235317, 292971,
281866, 294651 and 236125) are available for all size cyl-
inders (see Figure 3-9 and Tables 3-6 and 3-7).
B
E
A
F (hole size)
C
D

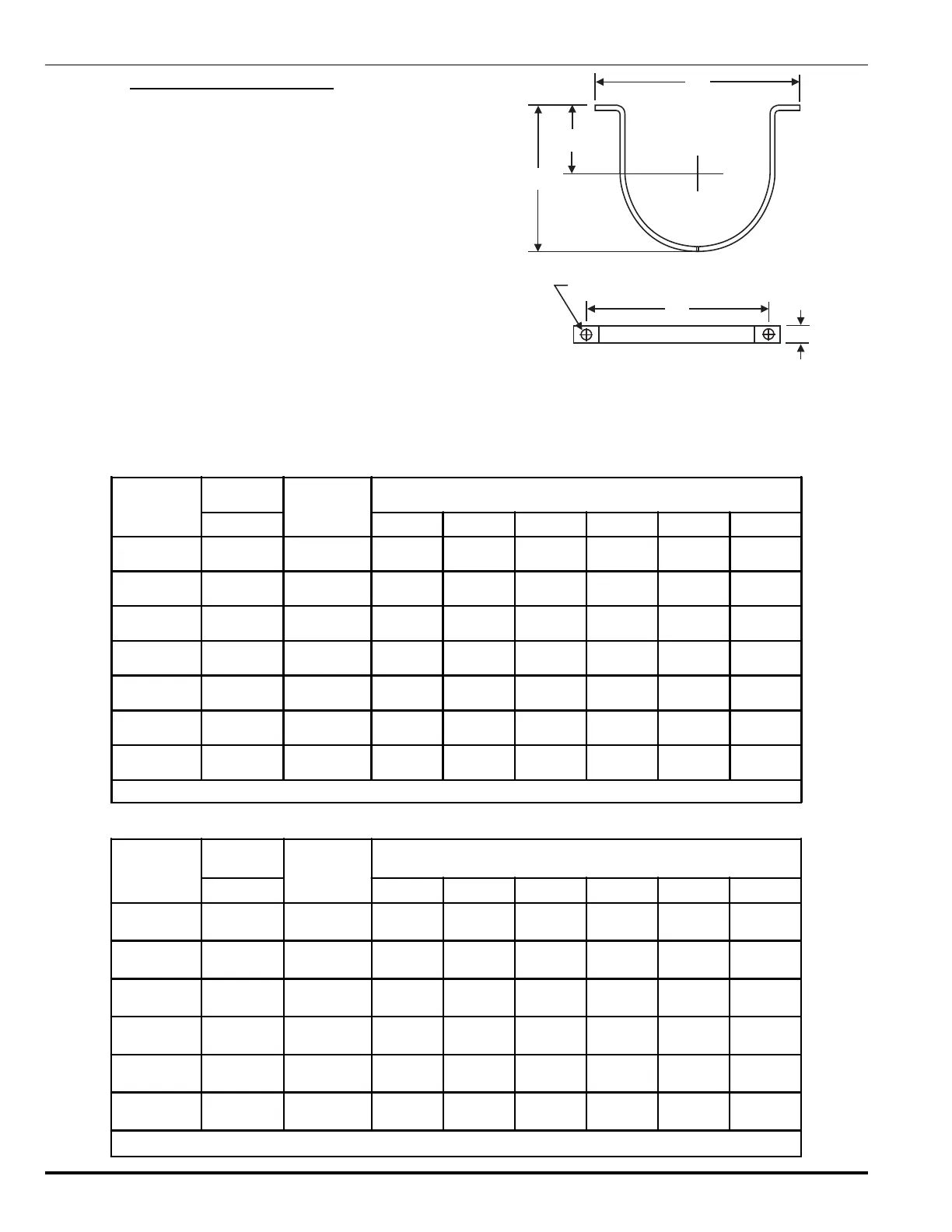

Figure 3-9. Cylinder Mounting Straps
