Kidde Fire Systems FM-200 ECS Series User Manual

4-17
September 2004 90-FM200M-000
FM-200
®
ECS Series Engineered Fire Suppression Systems
E
C
D
F (BOLT SIZE)
STRAP
(SEE TABLE 4-8)
END VIEW
B
A

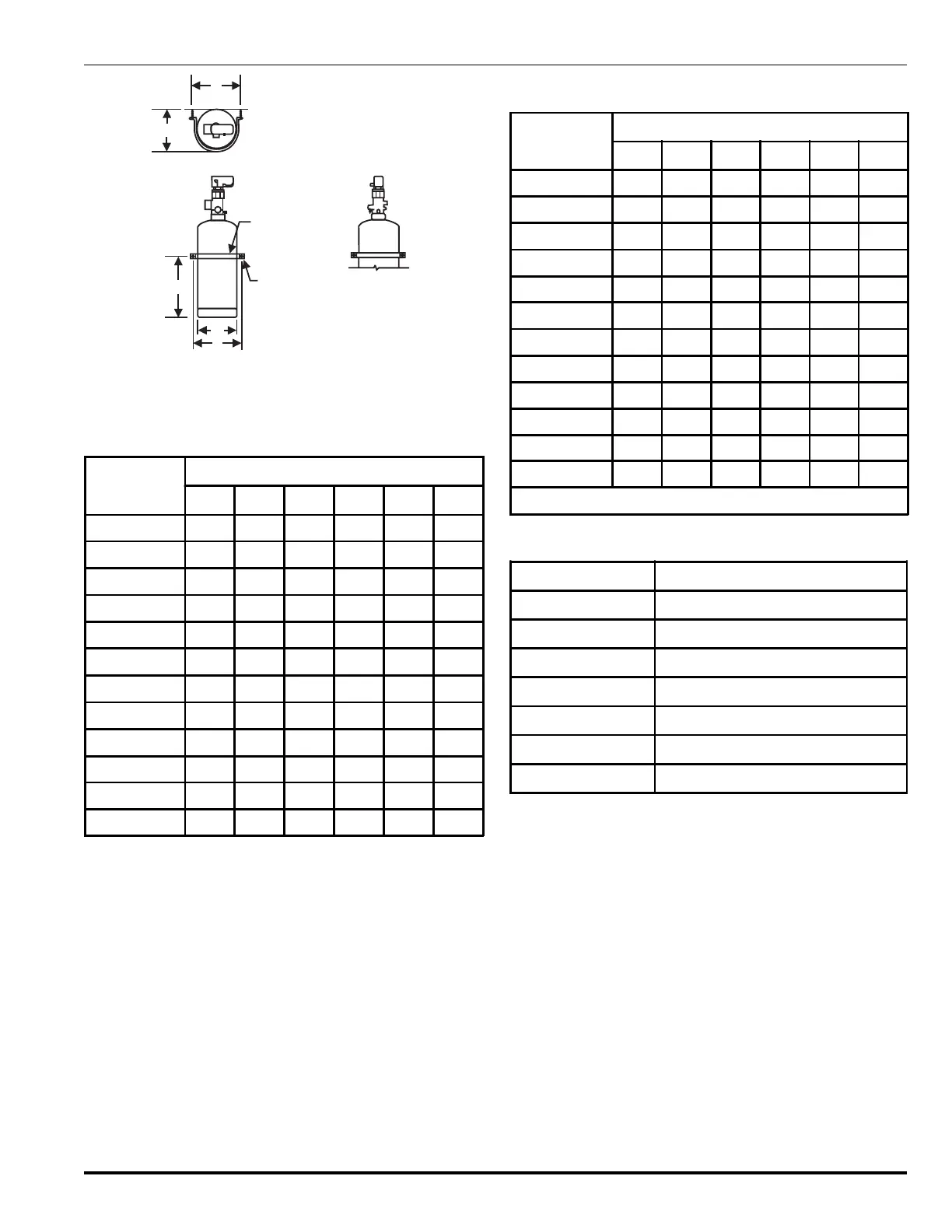

Figure 4-12. Single Cylinder Installation,
Vertical Mounting
Table 4-10. Single Cylinder Installation Dimensions,
Inches
Cylinder
Part Number
Dimensions
ABCDEF
90-10001X-001 9.62" 7.19" 7.07" 8.52" 7.38" 3/8"
90-10002X-001 9.62" 7.19" 7.07" 8.52" 12.50" 3/8"
90-10004X-001 11.69" 9.13" 9.00" 10.69" 10.63" 3/8"
90-10007X-001 11.69" 9.13" 9.00" 10.69" 27.50" 3/8"
90-100121-001 16.18" 12.94" 12.75" 14.56" 23.75" 9/16"
90-100125-001 16.18" 12.94" 12.75" 14.56" 23.75" 9/16"
90-10020X-001 17.06" 13.78" 13.60" 15.44" 39.00" 9/16"
90-10020X-101 16.18" 12.94" 12.75" 14.56" 39.00" 9/16"
90-10035X-001 19.50" 16.19" 16.00" 17.88" 44.00" 9/16"
90-10060X-001 25.75" 22.25" 22.00" 24.12" 38.50" 9/16"
90-10060X-100 25.75" 22.25" 22.00" 24.12" 38.50" 9/16"
90-10090X-001 27.75" 25.00" 24.00" 26.00" 48.50" 9/16"
Table 4-11. Single Cylinder Installation Dimensions,
Millimeters
Cylinder
Part Number
Dimensions*
ABCDEF
90-10001X-001 244 183 180 216 187 M10
90-10002X-001 244 183 180 216 318 M10
90-10004X-001 297 232 229 272 270 M10
90-10007X-001 297 232 229 272 699 M10
90-100121-001 411 329 324 370 597 M14
90-100125-001 411 329 324 370 597 M14
90-10020X-001 433 350 345 392 991 M14
90-10020X-101 411 329 324 370 991 M14
90-10035X-001 495 411 406 454 1118 M14
90-10060X-001 654 565 559 613 978 M14
90-10060X-100 654 565 559 613 978 M14
90-10090X-001 704 635 610 660 1232 M14
*Note: Dimensions are in millimeters.
Table 4-12. Strap Part Numbers for Cylinder Installation
Strap Part Number Cylinder Size
283945 10 and 20 lb.
283934 40 and 70 lb.
292971 125 and 200 lb. (old style)
235317 125 and 200 lb. (new style)
281866 350 lb.
294651 600 lb.
236125 900 lb
