Kidde VM-1 Technical Reference Manual

Chapter 2: Product description
16 P/N 3101890-EN • REV 006 • ISS 21JUN18

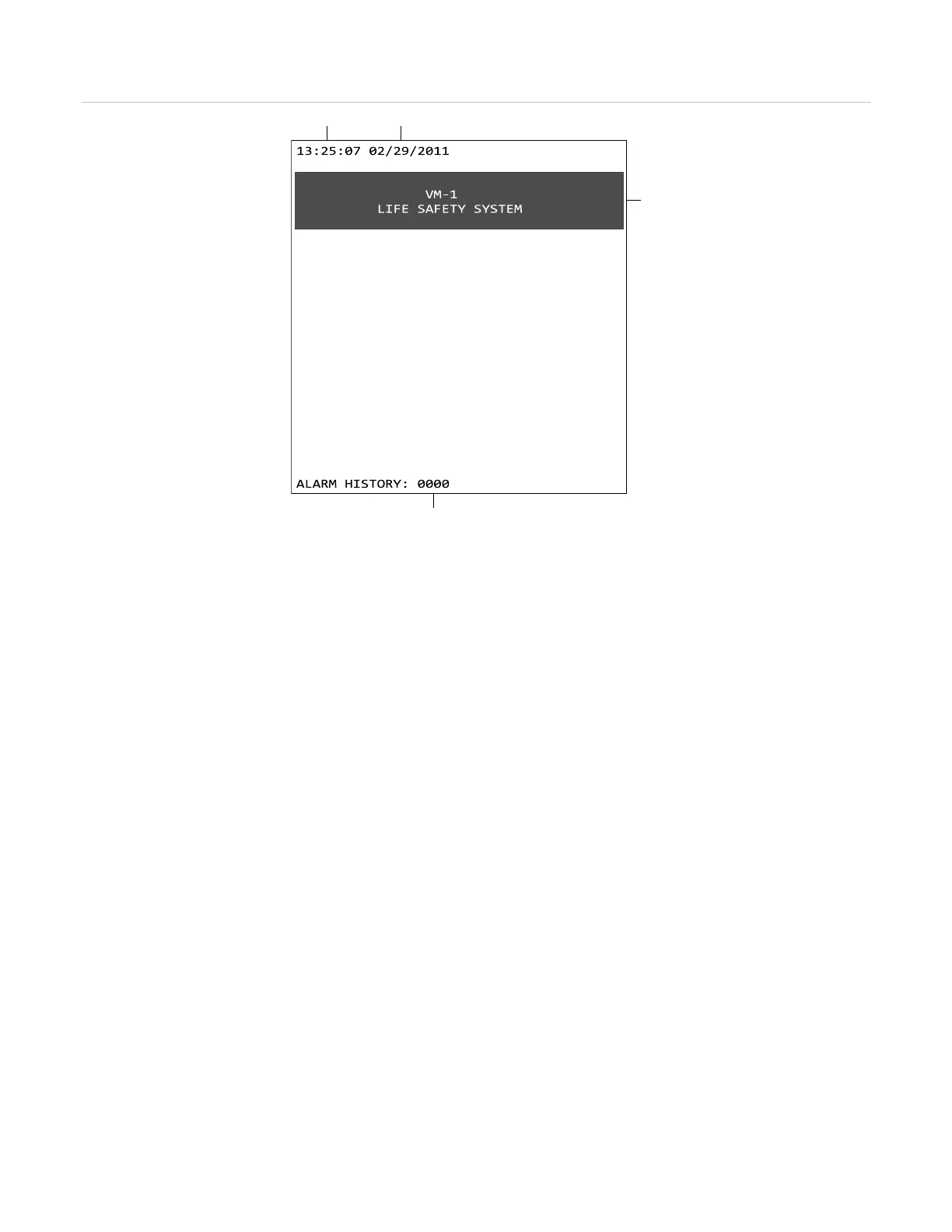

Figure 5: System normal LCD screen
(1) Time
(2) Date
(3) Custom banner message
(4) Number of times the panel has gone into alarm
System off-normal LCD screen
System off-normal means the control panel has entered an alarm, disabled, or test state. In this state, event
messages display on the screen that provide information about the events. Up to eight event messages can be
displayed on the screen: seven in the event message section of the screen and one in the “Most Recent Event”
section. See Figure 6 on page 17.
Note: The system off-normal LCD screen (event message screen) only displays when events are activated. It
does not display when events are restored.
(1) (2)
(3)
(4)
