Chapter 3: Operating instructions
P/N 3101890-EN • REV 006 • ISS 21JUN18 35
• For networked systems, you should not connect the network wiring until after the project has been
downloaded to each of the panels and you have cleared all troubles except for network communication faults.
To power up the control panel for the first time:
1. Apply power to the control panel.
2. Connect the batteries to the battery wiring terminal on the PS10-4B Power Supply. See “Standby batteries” on
page 86.
3. Press the ACK/Panel Silence button, if necessary.
4. Download the database as instructed in “Downloading a database” on page 51.
5. If errors display on the LCD screen, refer to “Runtime errors” on page 105 for information on resolving them.
6. For a network system, clear any faults between control panels.
7. Verify proper operation. Refer to “Routine maintenance and tests” on page 109 for Initial and Reacceptance
testing.
Utilizing the user interface keypads
Use the alphanumeric keypad and cursor keypad to access and exit the command menus, scroll through the
menus and lists, select event messages, and enter menu selections and addresses.

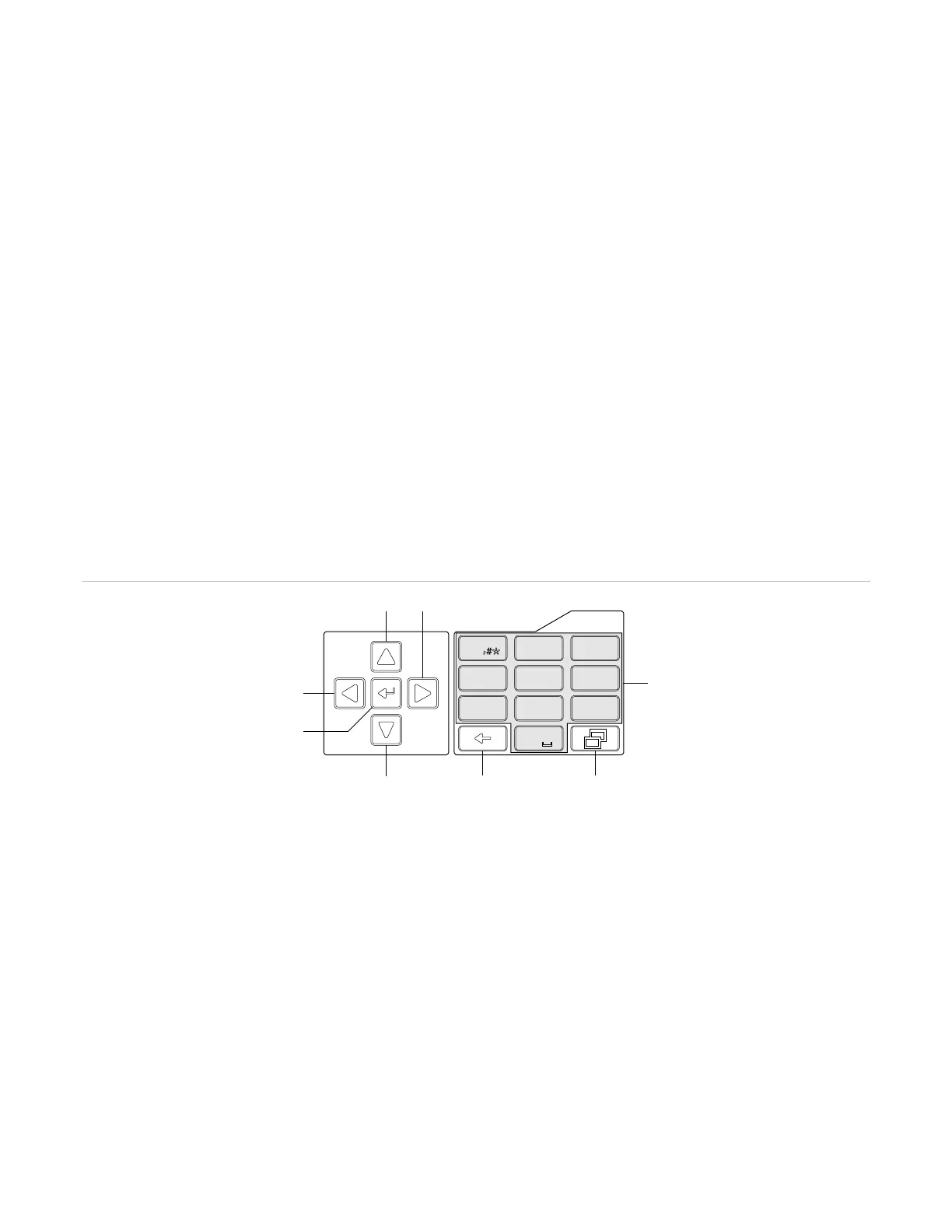

Figure 8: User interface keypads
2) Up button
3) Left button
(6) Backspace button
(7) Menus button
Accessing and exiting menus and commands
To access the menus and commands:
1. Press the Menus button. See Figure 8 above.
2. Press the Up or Down button to select the menu, and then press the Enter button.
— or —
3. Press the corresponding menu number on the alphanumeric keypad.
1
4
7
2
5
8
3
6
9
0
ABC
JKL
TUV
DEF
MNO
WXYZ
GHI
PQRS
(1)
(2)
(3)
(4)
(5) (6) (7)
(8)
