Kidde VM-1 Technical Reference Manual

Chapter 4: Supplementary applications
68 P/N 3101890-EN • REV 006 • ISS 21JUN18
Operating power can come from one of the following sources:
• The auxiliary power outputs on a PS10-4B power supply card
• Continuous AUX power on the CPU
• An auxiliary/booster power supply that is UL/ULC listed for fire protective signaling systems

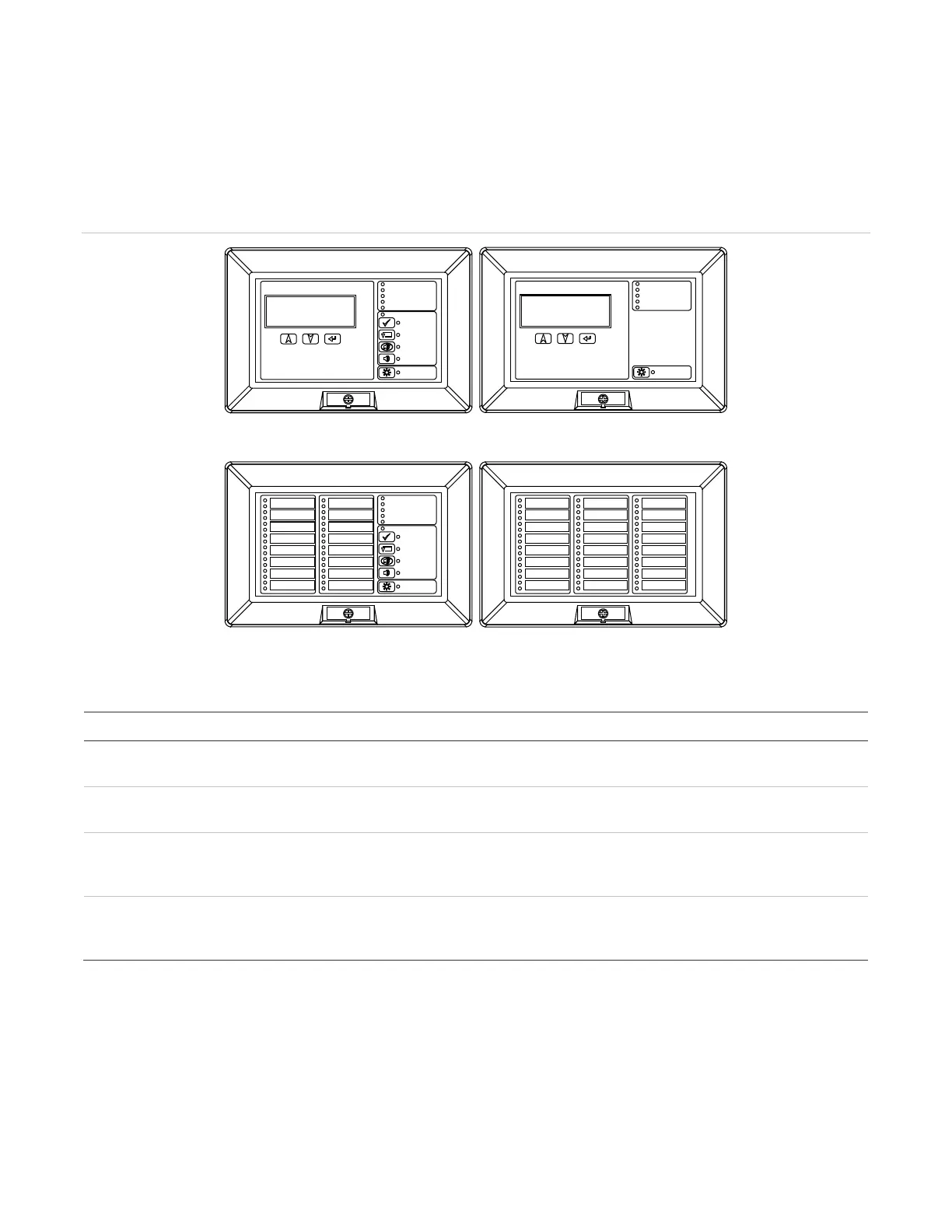

Figure 17: Compatible R-Series / K-R-Series remote annunciators
Table 24: Compatible R-Series and K-R-Series remote annunciators
Model
Description
RLCD
-C /
K
-RLCD-C
Remote LCD text annunciator with common controls and indicators.
RLCD
/
K
-RLCD
Remote LCD text annunciator with indicators (no common controls).
RLED
-C /
K
-RLED-C
Remote LED annunciator with common controls and 16 pairs of programmable LEDs. The
first 12 pairs are dedicated red-over-yellow LEDs. The last four pairs can be configured
in the
VM-CU as red-over-yellow LEDs or as yellow-over-yellow LEDs.
RLED24
/
K
-RLED24
Remote annunciator LED expander with 24 pairs of programmable LEDs. The top 12 pairs
are dedicated red-over-yellow LEDs. The bottom 12 pairs can be configured in the VM-CU
as
red-over-yellow LEDs or as yellow-over-yellow LEDs.
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD-C / K-RLCD-C
RLED-C / K-RLED-C
RLCD / K-RLCD
RLED24 / K-RLED24
