8-24 Specifications PAS SERIES
1 000W Type
PA S
10-105
PA S
20-54
PA S
40-27
PA S
60-18
PA S
80-13.5
General
Weight
*1
*1. Unit only. Does not include accessories.
Unit: mm (inch)

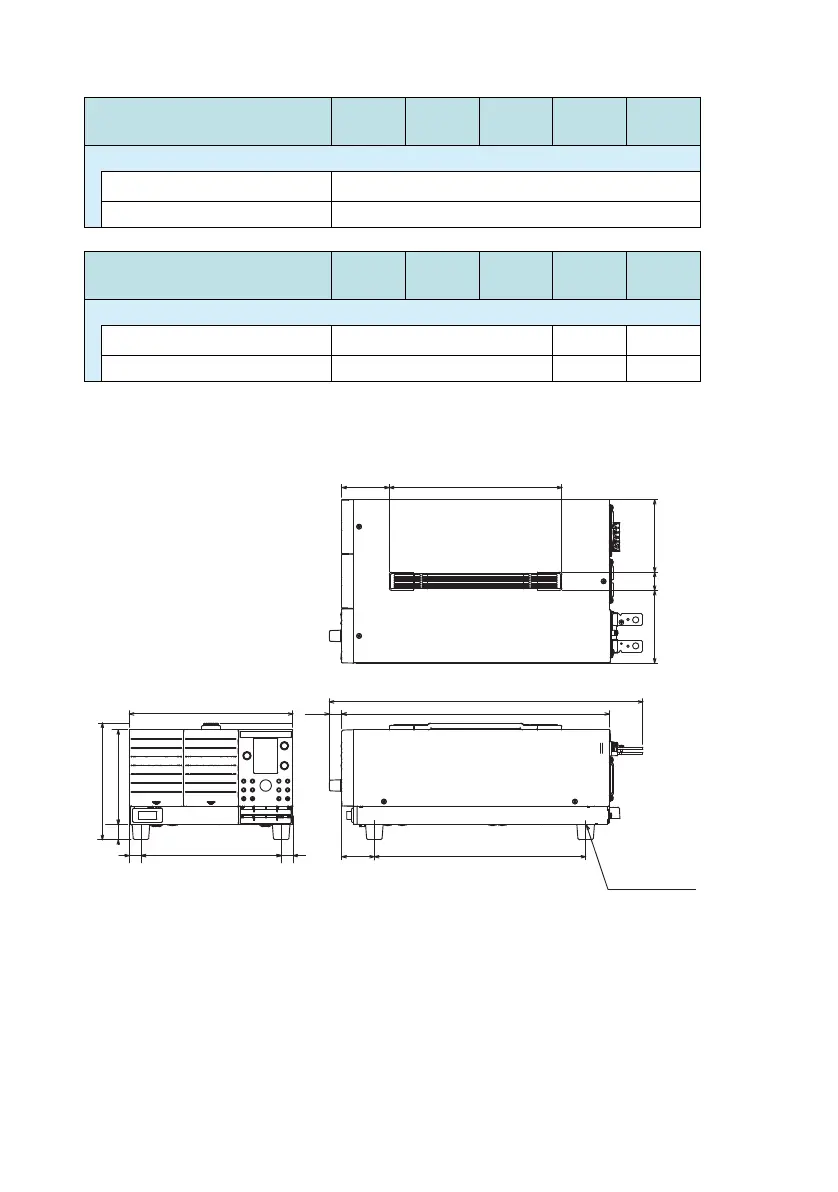

Fig.8-3 1 000W type Outline Drawing
Approx. 7 kg (15.43 lbs)
Dimensions See outline drawing
1 000W Type (cont.)
PA S
160-6
PA S
320-3
PA S
500-1.8
— —
General
Weight
*1
Approx. 7 kg (15.43 lbs) — —
Dimensions See outline drawing — —
4-M3s (insert up to
6 mm (0.24 inch))
Common for rubber
foot and M3 screw
hole
MAX20
(0.79)
MAX420(16.54)
MAX25
(0.98)
24
(0.94)
95
(3.74)
95
(3.74)
124(4.88)
15.25(0.61)15.25(0.61)
183.5(7.22)
214(8.43)
42.5(1.67)
276.5(10.89)
350(13.78)
62(2.44) 226(8.90)
