4
Check your kiln with a level to make sure it is not standing on an uneven floor. If this
should occur, your weight may not fall when released.
4. CHECK THE TRAVEL OF THE SENSING ROD
THE FIRING GUAGE SHOULD NOW BE REMOVED BUT KEPT FOR FUTURE
PERIODIC ADJUSTMENTS. The sensing rod is now free to travel vertically within
the tube cavity. It should travel freely in the center of the cavity without touching
the sides at any point, as shown in Figures 5 and 6.
When these adjustments have been made, you are ready to test fire.

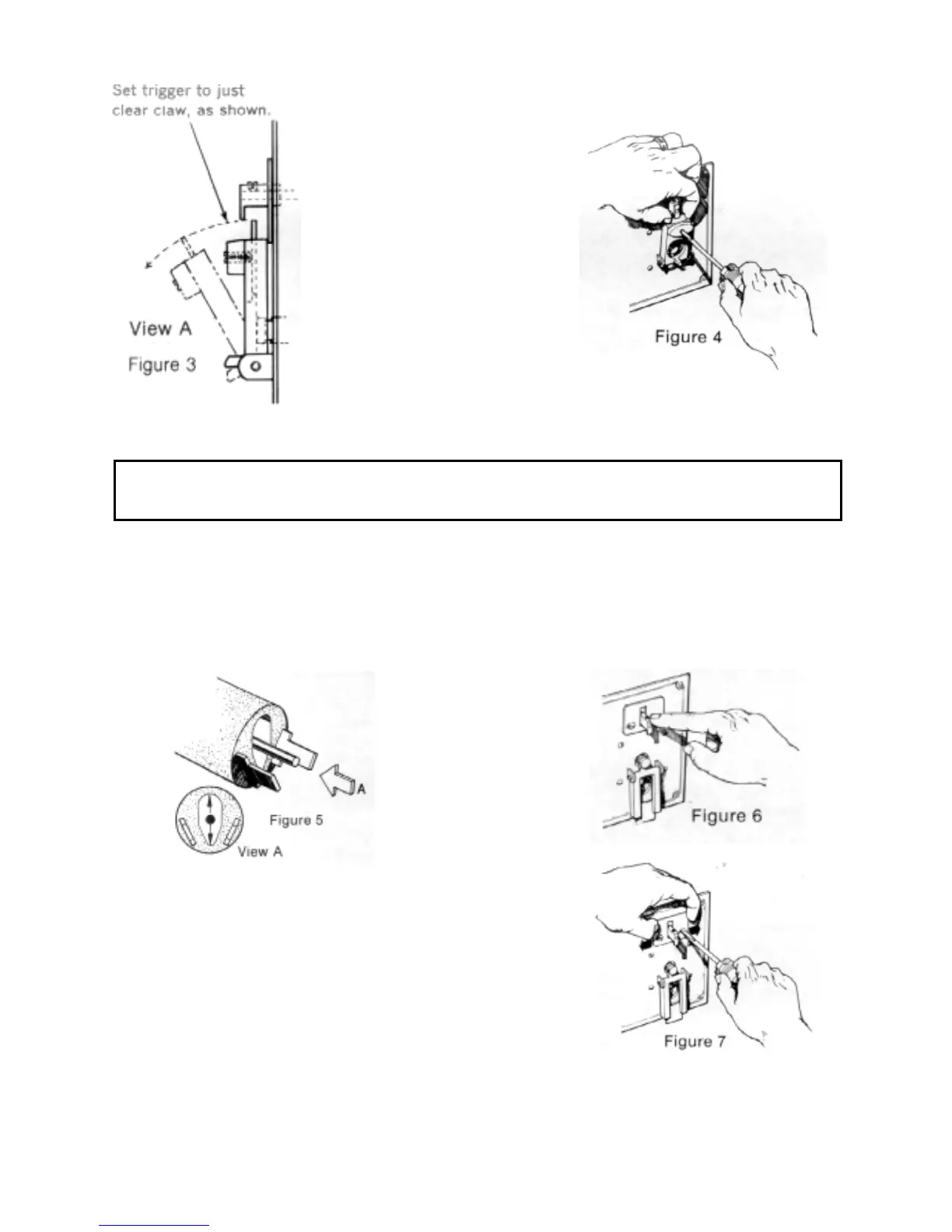

b. When the weight swings
forward, the trigger should
ust clear the tip of the claw,
as shown in Figure 3. The
setscrew in front of the
weight may be loosened to
raise or lower the trigger, as
shown in Figure 4. The
setscrew must be firmly
tightened or the force o
repeated falling of the
weight may cause the
trigger to creep out o
adjustment.
WARNING: Do not fire your kiln over or near FLAMMABLE material (i.e. wood floor,
carpeting, etc.)
If necessary, the sensing rod may
be centered by loosening the two
guide plate screws in front of the
KILN-SITTERļ and moving the
guide plate right or left as required,
as shown in Figure 7. Be sure the
guide plate screws are firmly
tightened.
