KinAn KFH151S/E TX - Rear Panel of Transmitter(TX)

IP KVM Matrix Extender User Manual
10

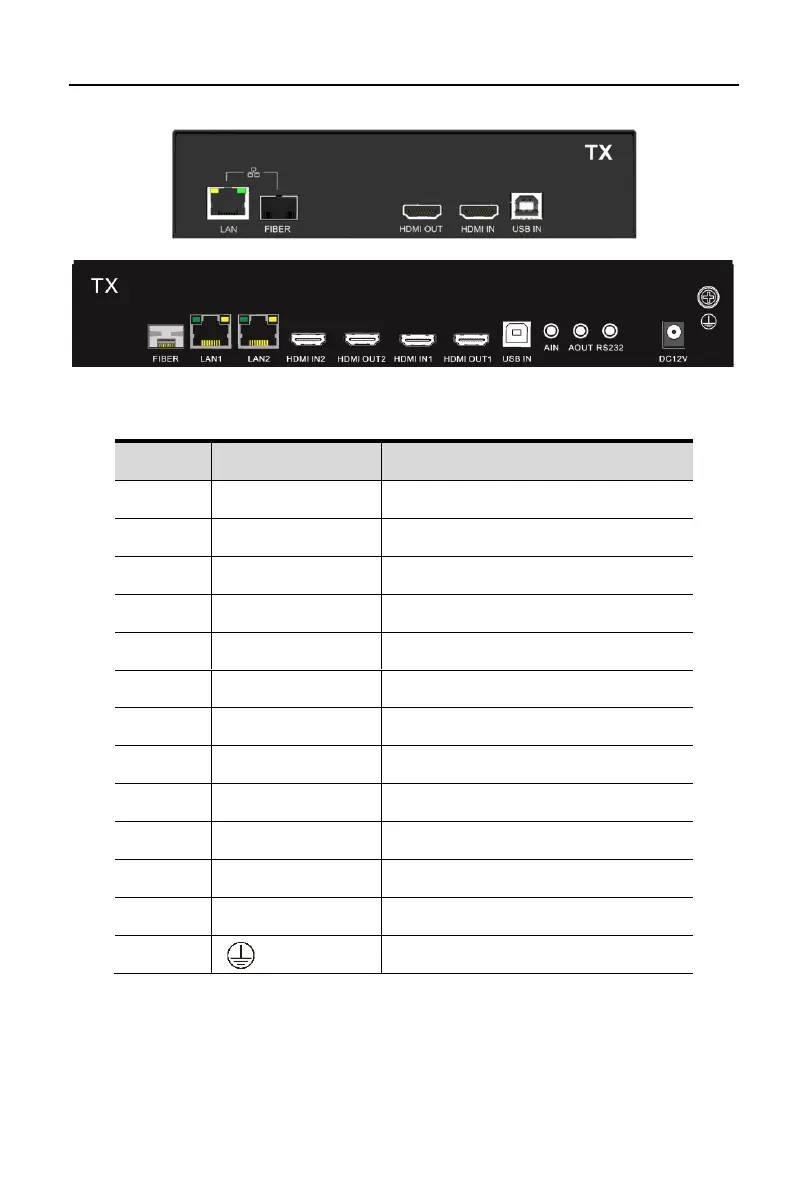

Rear Panel of Transmitter(TX)
KFH151S-TX/KFH151E-TX
KFH251S-TX
Table1.2：
No
Name
Function
1
FIBER
Fiber network connector
2
LAN1
LAN1 connector
3
LAN2
LAN2 connector
4
HDMI IN2
HDMI2 video signal input
5
HDMI OUT2
HDMI2 video signal loop out
6
HDMI IN1
HDMI1 video signal input
7
HDMI OUT1
HDMI1 video signal loop out
8
USB IN
USB Type-B，connect PC or server
9
AIN
Audio input
10
AOUT
MIC output
11
RS232
Serial port
12
DC12V
Connect to the 12V power supply
13
Ground the device
