11
Installation
Step 1: The chamber can be installed either horizontally or vertically using the clamps
provided. Vertical installation is the preferred method with the inlet at the bottom (lamp
connection at the top) as it allows any air that may be in the lines to be easily purged from
the system.
Step 2: The use of a by-pass assembly is recommended as it will allow you to isolate the
UV chamber. This will allow for easier access in case maintenance is required.
Step 3: Fasten chamber clamps to wall with screws provided.
The screws must anchor securely into solid wood, concrete, or steel structure for adequate
strength. Do not attempt to secure screws into drywall (Figure 2a). Install reactor into
clamps (Figure 2b).
Caution: Be sure to use metal connections on the inlet/outlet of the
UV chamber
Note: Installation of your Kind Water Systems UV Disinfection System
shall comply with applicable provincial/state & local regulations.

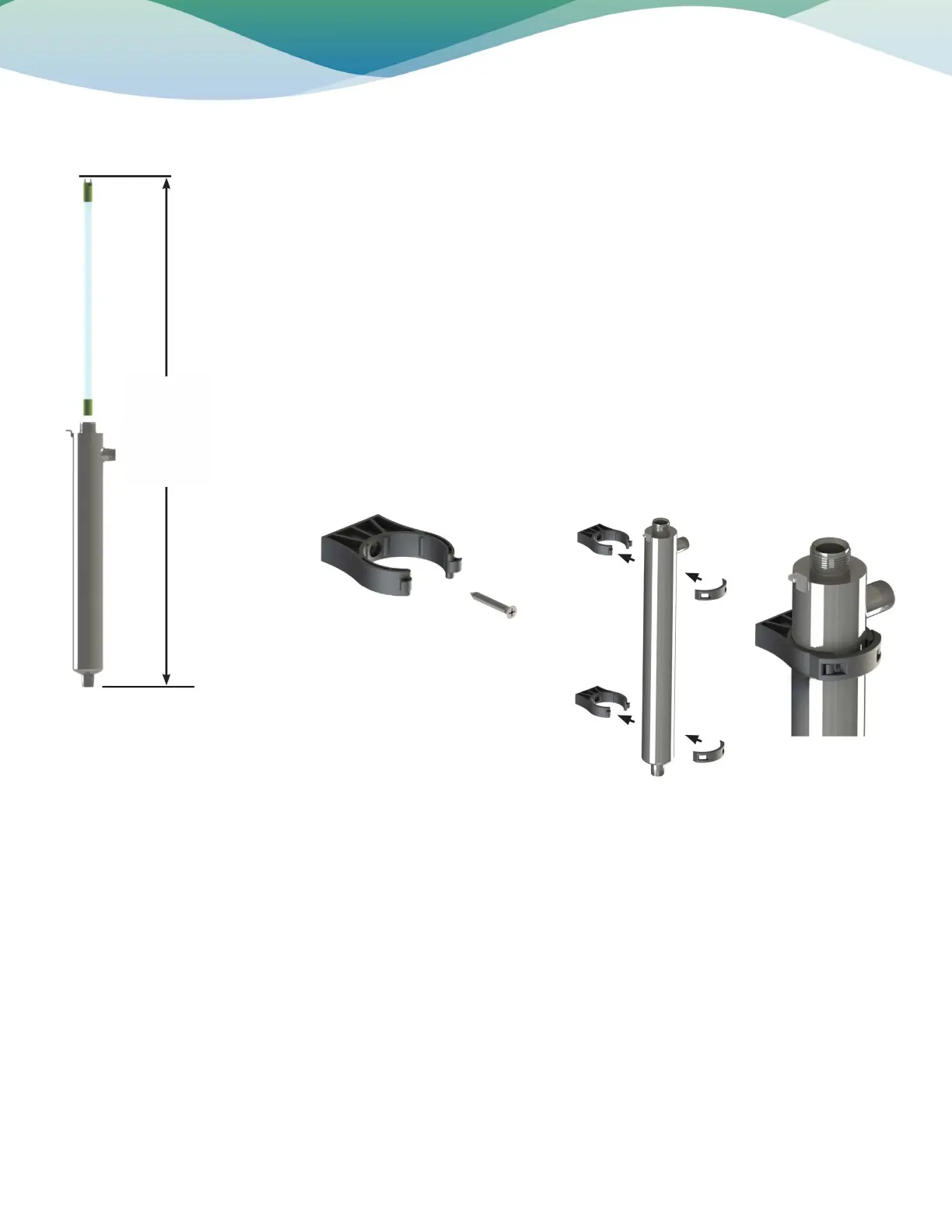

Figure 2a. Install
chamber into clamps
Figure 2b. Install chamber into clamps
leave at least
an additional
chamber length
to facilitate
lamp and
sleeve removal
