12
Installation

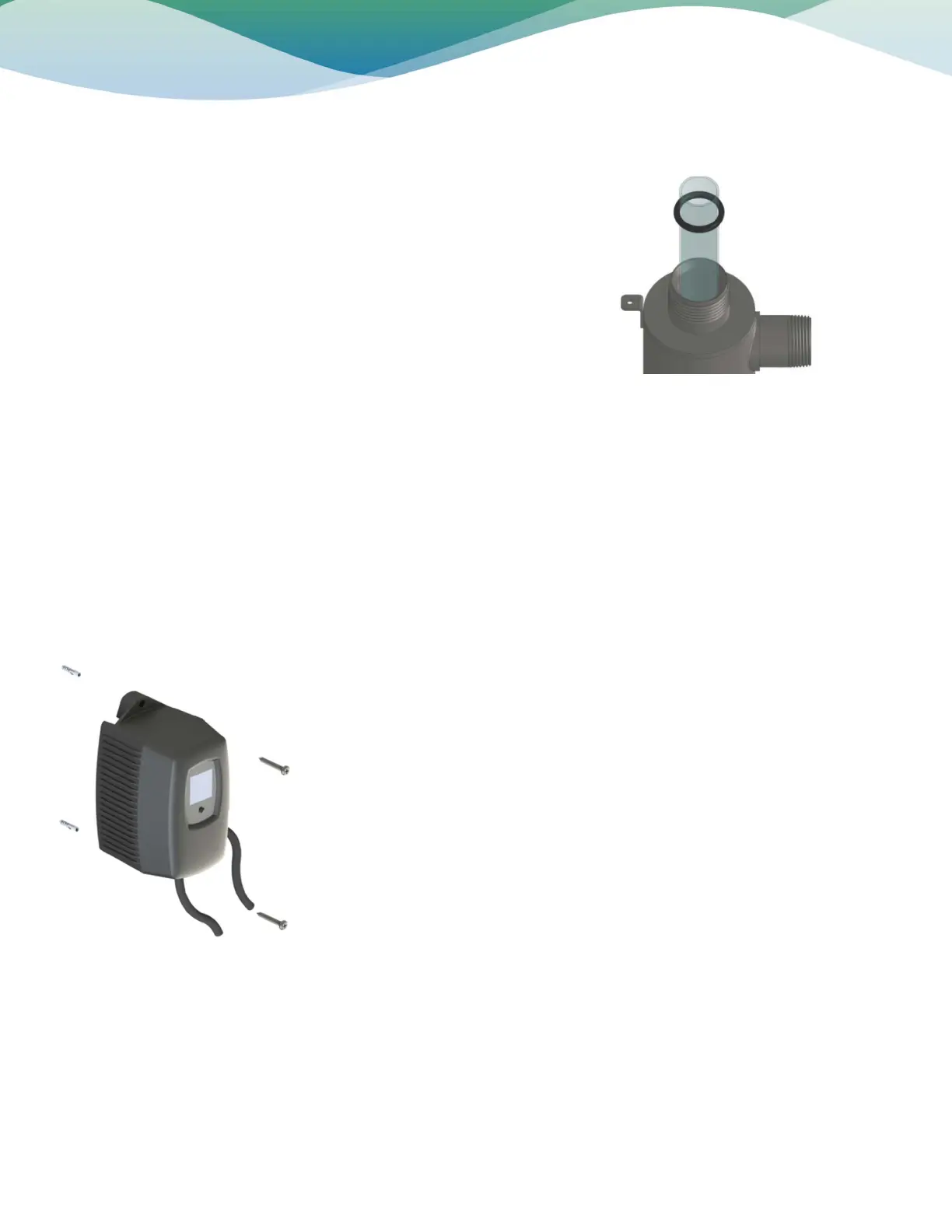

Step 4: Once the system has been plumbed in, gently remove the quartz
sleeve from its packaging being careful not to touch the length with your
hands. The use of cotton gloves is recommended for this procedure as
oils from the hands can leave residue on the sleeve and lamp which can
ultimately block the UV light from getting to the water.
Carefully slide the sleeve into the chamber until you can feel it hit the
opposite end of the chamber. Align the sleeve so it centered along the
length of the chamber, then gently push it in to lock it into the internal
centering springs in the far side of the chamber. CAUTION: Pushing too
hard when the sleeve is not aligned can damage the centering springs. Slide
the o-ring onto the sleeve until it is butted up against the chamber.
Step 5: Hand tighten the provided gland nut over the quartz sleeve onto
the threaded end of the chamber. It has a positive stop to prevent
over-tightening. A rm force may be required to fully tighten the gland nut,
but DO NOT USE TOOLS for this step. Insert the provided stainless steel compression spring into the quartz sleeve. The spring
works with the lamp and LUMI-Loc™ connector to create the proper lamp alignment. PLEASE NOTE: DO NOT install a UV lamp
inside the quartz sleeve without the sleeve spring in place.
Step 6: The chamber is now ready for water ow. When all plumbing connections have been completed, slowly turn on the water
supply and check for leaks. Make sure the bypass valves are functioning properly and that the water is owing through the chamber.
Step 7: Fasten controller securely to wall with screws provided. Drywall anchors may be used. Note that the controller must be
mounted vertically for adequate airow across the aluminum heat sink on back (see Figure 3).
Figure 3. Fasten controller
Quartz Sleeve Installation
