Kind XT - Input Wiring; Input - Output Mode Connections; Parallel Mono Mode Wiring

Page 13 KIND XT models Power Amplifiers
models
CAUTION:
replace fuse only with
correct type and rating
WARNING:
To reduce the risk of fire or electric
shock do not expose equipment to
rain or moisture, do not remove cover,
no use serviceable parts inside, refer
servicing to qualified service personnel.
See operating manual before using.
I - 28066 Galliate - NO
MADE IN ITALY - EC
A
B
STEREO
BRIDGE
INPUTS
INPUT CONNECTIONS:
XLR Pin 2 +
TRS Tip +
BRIDGE MODE:
use A input
OUTPUT 1
CHANNEL A CHANNEL B
PIN 1 + Pos PIN 2 + Pos
PIN 1 - Gnd PIN 2 - Gnd
BRIDGE OUTPUT
PIN 1 + Pos
PIN 1 - Gnd
OUTPUT 2
CHANNEL B CHANNEL A
PIN 1 + Pos PIN 2 + Pos
PIN 1 - Gnd PIN 2 - Gnd
LIMITER
OUT
IN
KIND Audio
Galliate (NO), Italy
Made in E.U.
Model: XT4000
Output PWR per CH/Imp: 1800/4
230VAC 50/60Hz 12A SERIAL
1-
1+
2+
2-
CAUTION:
replace fuse only with
correct type and rating
WARNING:
To reduce the risk of fire or electric
shock do not expose equipment to
rain or moisture, do not remove cover,
no use serviceable parts inside, refer
servicing to qualified service personnel.
See operating manual before using.
I - 28066 Galliate - NO
MADE IN ITALY - EC
A
B
STEREO
BRIDGE
INPUTS
INPUT CONNECTIONS:
XLR Pin 2 +
TRS Tip +
BRIDGE MODE:
use A input
OUTPUT 1
CHANNEL A CHANNEL B
PIN 1 + Pos PIN 2 + Pos
PIN 1 - Gnd PIN 2 - Gnd
BRIDGE OUTPUT
PIN 1 + Pos
PIN 1 - Gnd
OUTPUT 2
CHANNEL B CHANNEL A
PIN 1 + Pos PIN 2 + Pos
PIN 1 - Gnd PIN 2 - Gnd
LIMITER
OUT
IN
KIND Audio
Galliate (NO), Italy
Made in E.U.
Model: XT4000
Output PWR per CH/Imp: 1800/4
230VAC 50/60Hz 12A SERIAL

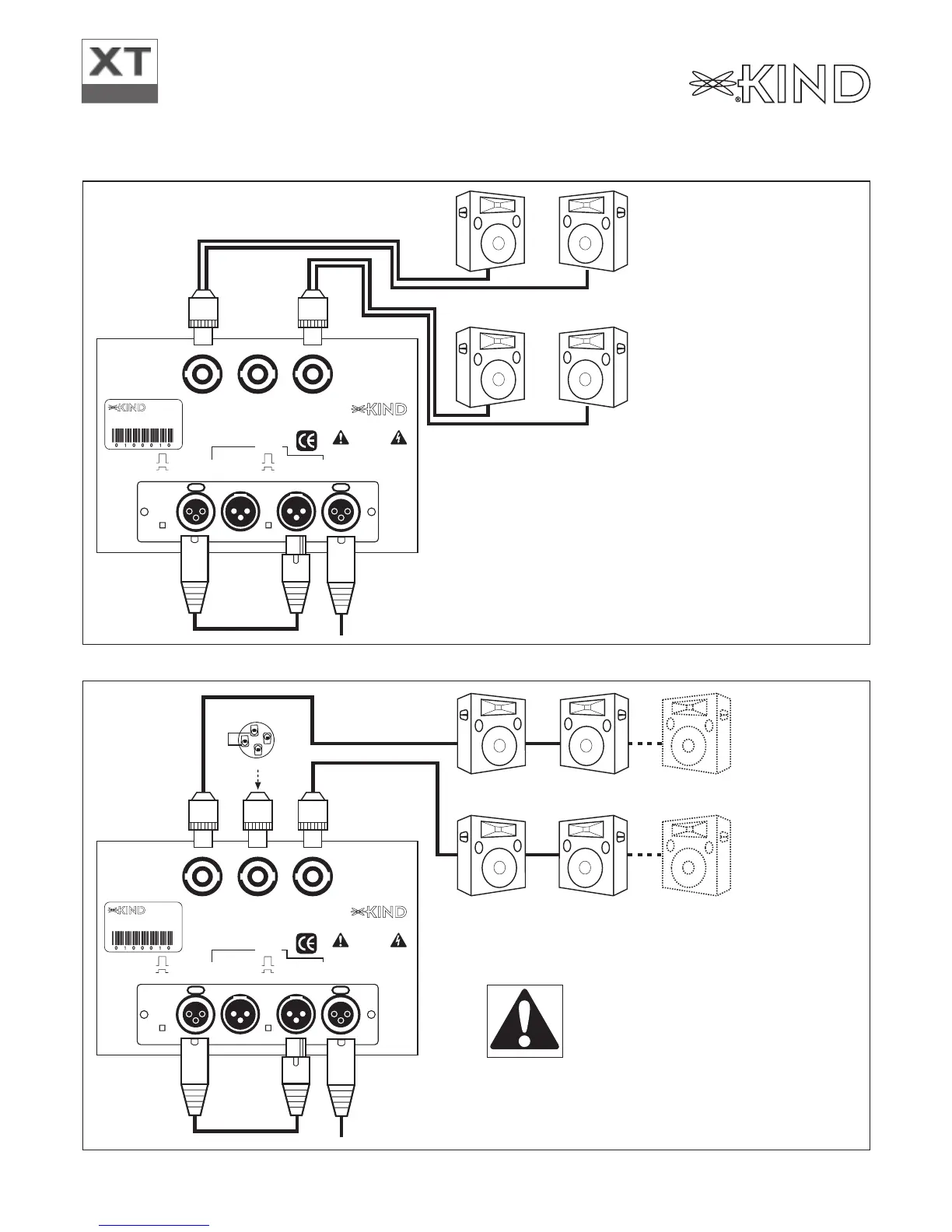

3. Parallel Input
4. Parallel Mono Mode
Input Wiring / Input - Output Mode Connections
IMPORTANT NOTE: In the parallel
mode both attenuators must be set at
the maximum position (is not possible
adjust the level from the amplifier in
this mode).
