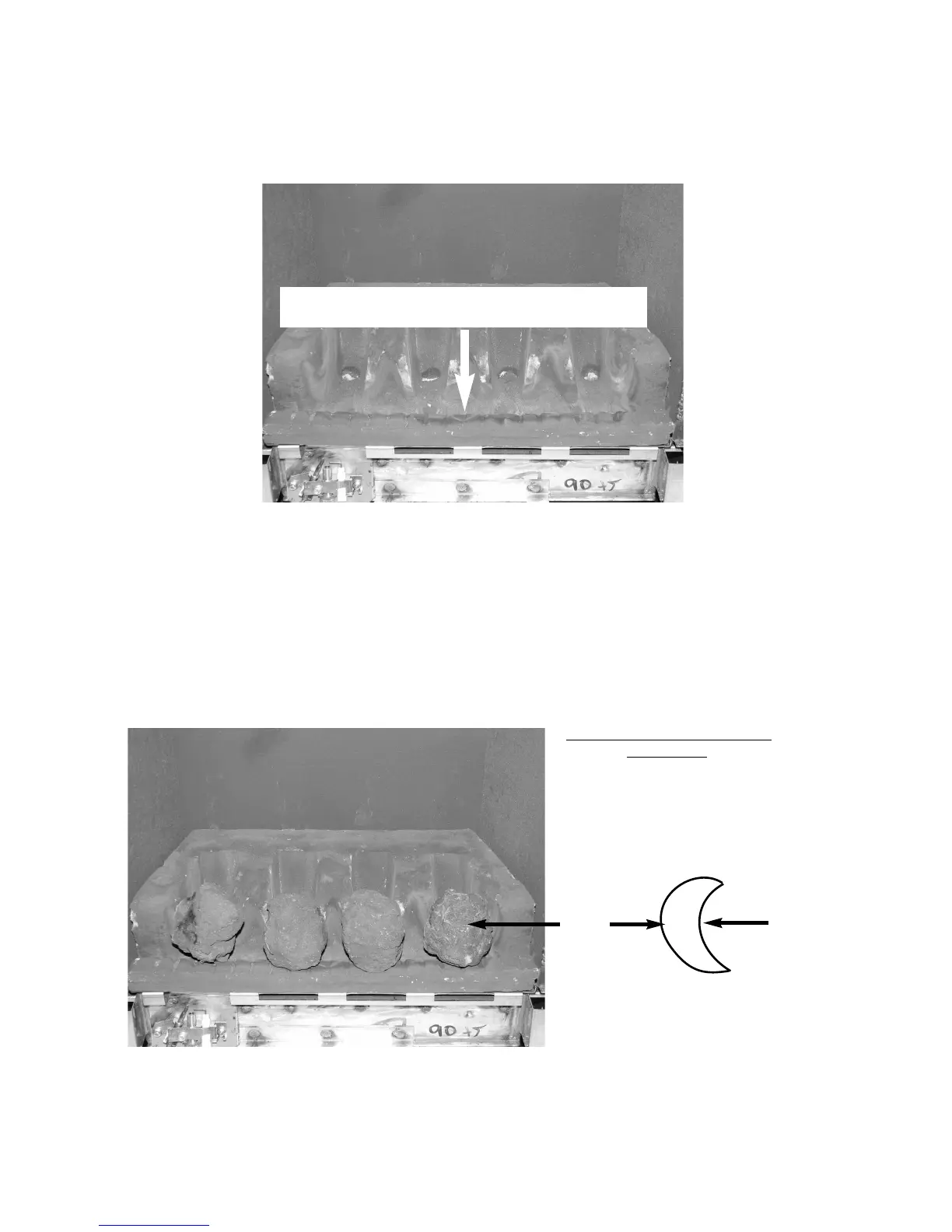

6.9.2 Position the front ceramic coal support onto the burner support as
shown below in figure 16.
Fig. 16
6.9.3 Fit four of the specially shaped coals as shown below in figure 17.
Ensure that the cut-out in the rear face of the coals is positioned as
indicated. The 4 off specially shaped coals are packed in a bag with a
label “FR” on them.
Fig. 17
72
P
ositioning of front ceramic coal support onto burner
support
Front
Face
Front Row Coal Positioning -
Side Profile
Rear
Face
