Kinder Oasis - Page 12

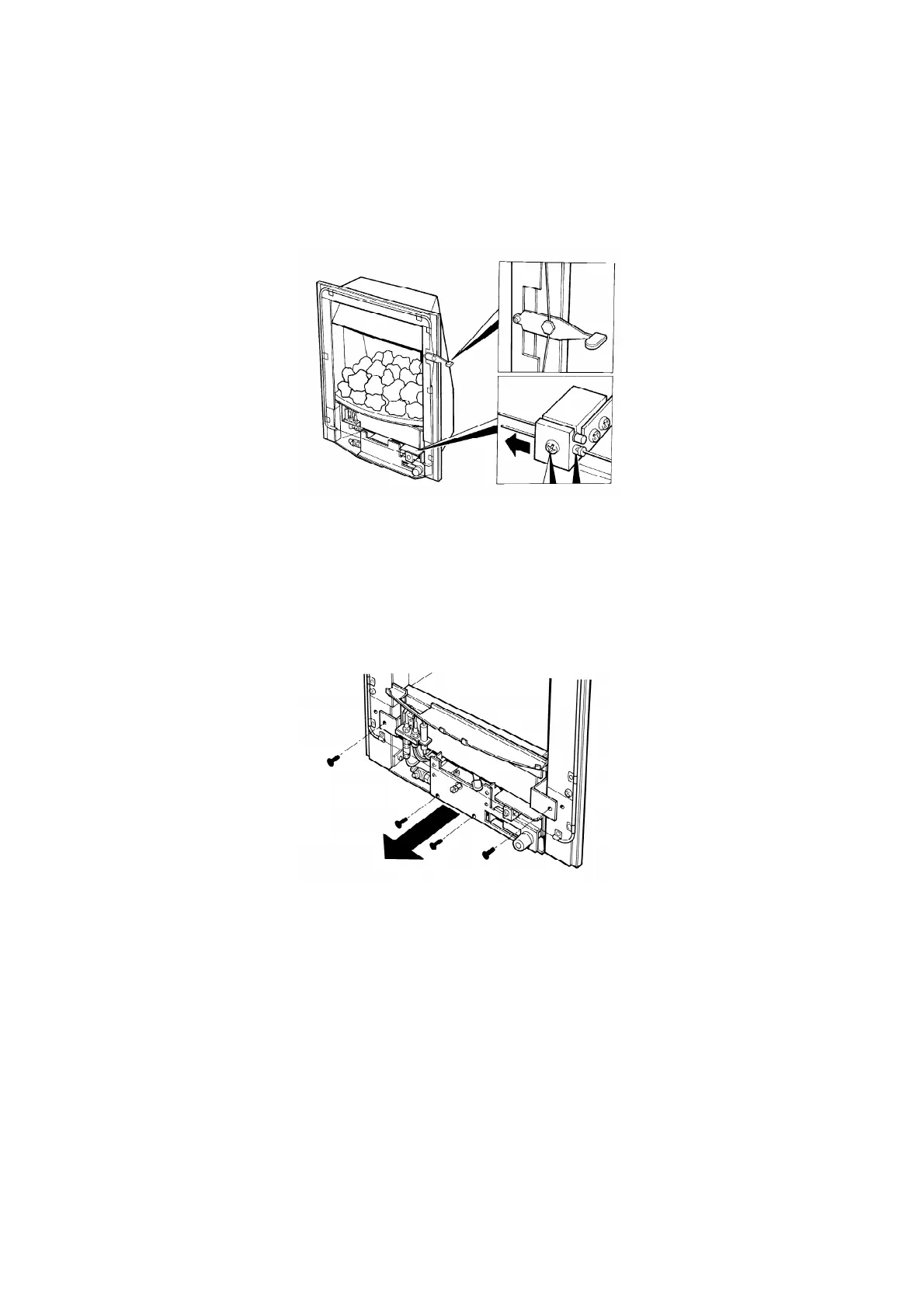

Fig. 6
g) Unscrew the burner assembly fixing screws at either side of the firebox,
and the two fixing screws at the base of the fire (See fig. 6
above). Carefully pull the base of the burner forwards and downwards
from the fuel-bed support panel. The burner can now be removed from
the appliance.
Fig. 7
12
