ELECTRICAL CONNECTIONS
WARNING!
ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN
SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MITER SAW DISCONNECTED FROM THE
POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!
POWER SUPPLY
WARNING:
YOUR MITER SAW MUST BE CONNECTED TO A 110V,
15-AMP, BRANCH CIRCUIT AND USE A 15-AMP TIME DELAY
FUSE OR CIRCUIT BREAKER. FAILURE TO CONNECT IN THIS
WAY CAN RESULT IN INJURY FROM SHOCK OR FIRE.
110V OPERATION

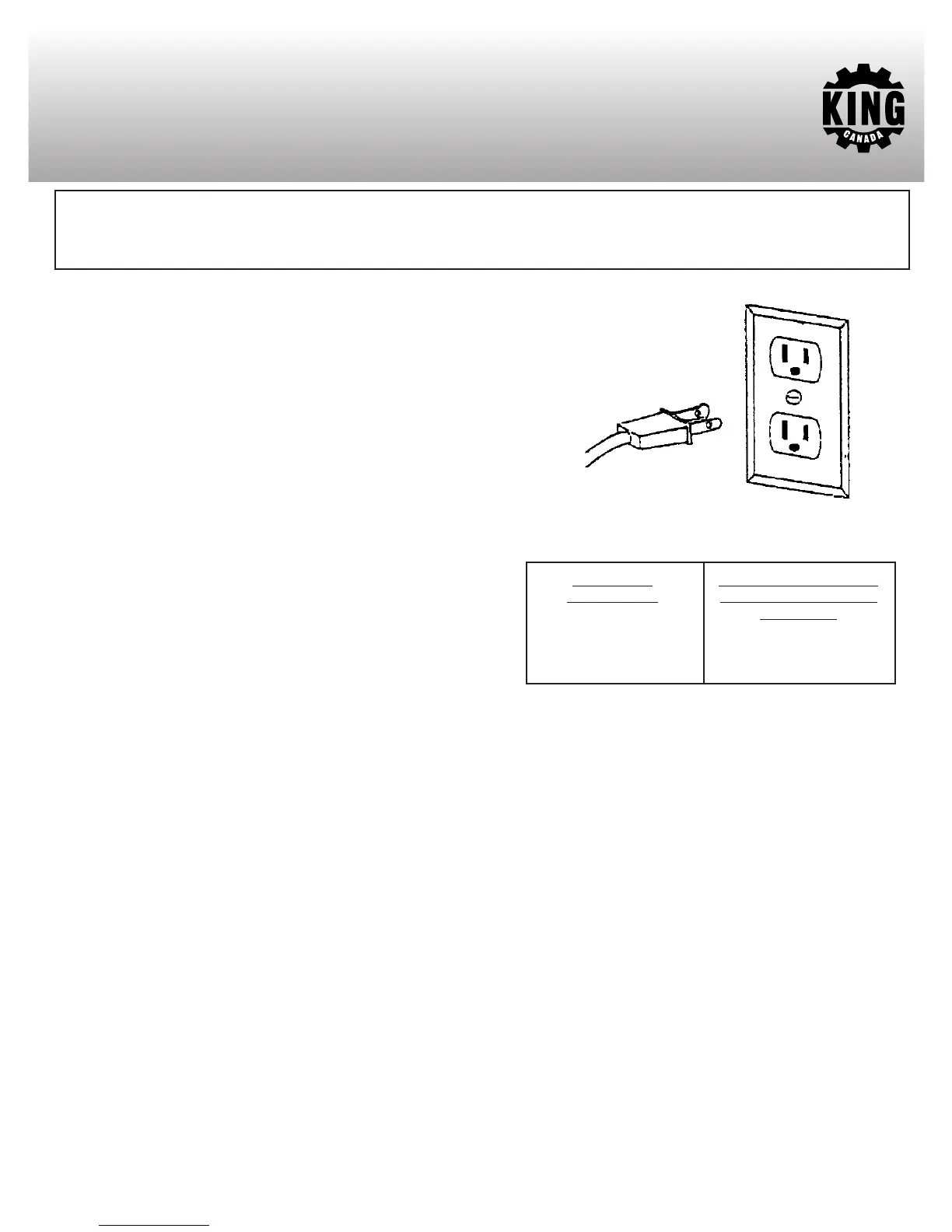

As received from the factory, your miter saw is ready to run for 110V
operation. This miter saw is intended for use on a circuit that has an
outlet and a plug which looks like the one illustrated in Fig.1.
EXTENSION CORDS
The use of any extension cord will cause some loss of power. Use the
following table to determine the minimum wire size (A.W.G-American
Wire Gauge) extension cord. Use only extension cords which accept
the tool’s plug.
For circuits that are further away from the electrical circuit box, the wire
size must be increased proportionately in order to deliver ample voltage
to the motor. Refer to Fig.2 for wire length and size.
FIGURE 1
LENGTH OF
CONDUCTOR
0-25 FEET
26-50 FEET
51-100 FEET
WIRE SIZES REQUIRED
(AMERICAN WIRE GAUGE)
110V LINES
NO.16
NO.14
Not recommended
FIGURE 2
110V OUTLET
110V POLARIZED PLUG
TOOL SPECIFICATIONS
Model ..............................................................................................................................................................................................8370
Voltage ............................................................................................................................................................................................110V
Input power ................................................................................................................................................................................10Amp.
Insulation class ............................................................................................................................................................Double insulation
No load speed ........................................................................................................................................................................4200 RPM
Blade size......................................................................................................................................................................8-1/4” x 24 teeth
Arbor size ..........................................................................................................................................................................................5/8”
Miter table angles ............................................................................................................................0
0
, 15
0
, 22.5
0
, 30
0
, 45
0
left and right
Crosscut 90
0
......................................................................................................................................................................2-3/8” x 7-7/8”
Miter 45
0
............................................................................................................................................................................2-3/8” x 5-1/2”
Bevel 45
0
..........................................................................................................................................................................
1-5/8” x 7-7/8”
Compound (Miter & Bevel 45
0
)
........................................................................................................................................1-5/8” x 5-1/2”
