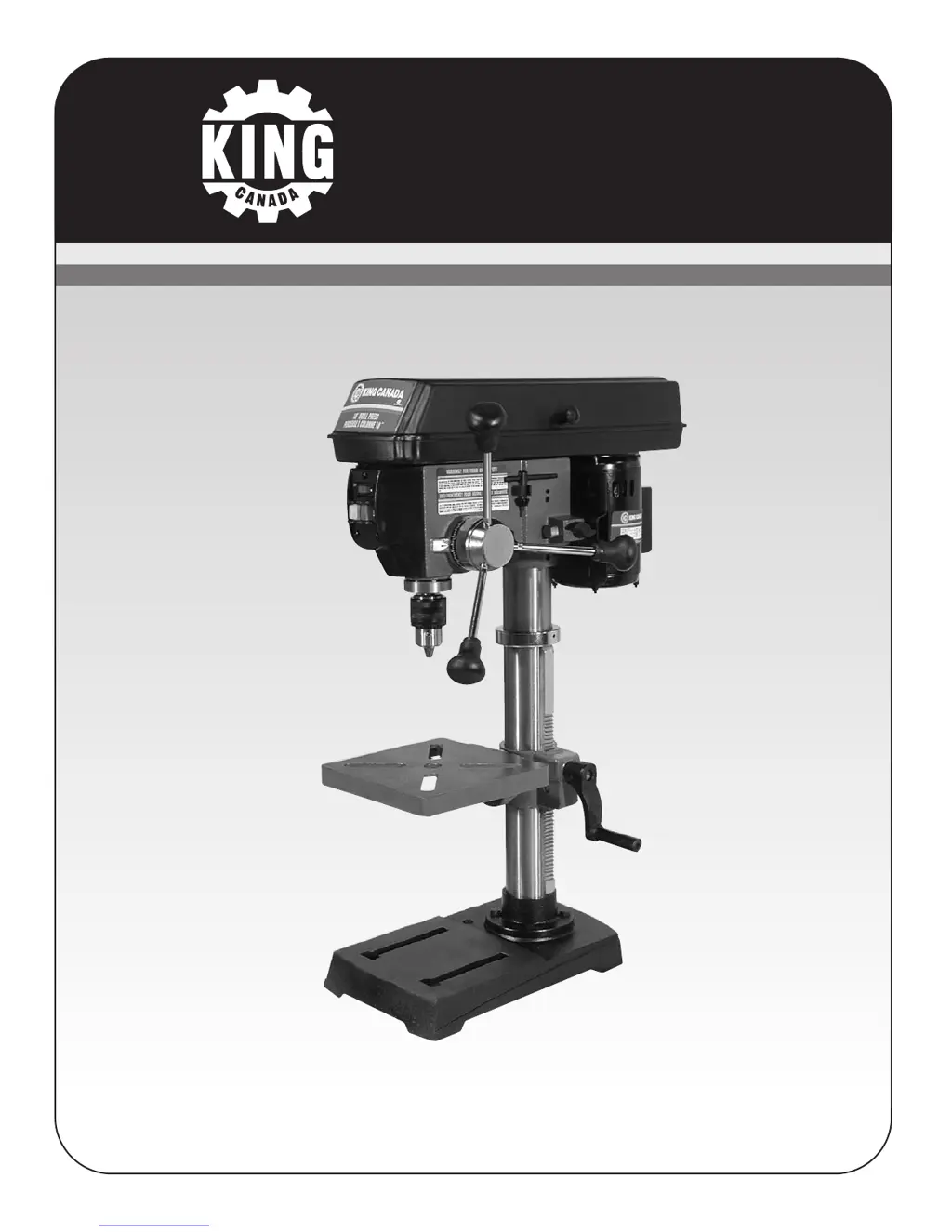

KING CANADA
10” DRILL PRESS
INSTRUCTION MANUAL
COPYRIGHT
®
2002
ALL
RIGHTS RESER
VED BY
KING CANADA TOOLS INC.
MODEL: KC-110C

Table of Contents

Other manuals for King Canada KC-110C

Preview: Service Manual
Service Manual3 pages

Questions and Answers

  • F
    fbennettAug 13, 2025
    Why is my King Canada Power Tool drill bit burning?
    • G
      gibbsjesseAug 13, 2025
      If your King Canada Power Tool's drill bit is burning, it could be due to several reasons. You might be using the incorrect speed, so try adjusting it. The drill bit may not be properly lubricated; try lubricating it with cutting or motor oil. Also, ensure you're not feeding too slowly, allow the drill bit to cut. Retract the drill bit frequently to clear chips from the hole. Finally, check if the drill bit is dull and needs resharpening.
  • B
    brandyvillarrealAug 17, 2025
    How to fix noisy operation of my King Canada KC-110C?
    • E
      Erin WyattAug 17, 2025
      If your King Canada Power Tool is operating noisily, there are several potential causes. Start by checking the belt tension and adjust it if necessary. Ensure the spindle is properly lubricated. Tighten the retaining nut on the spindle pulley and the set screws on the motor pulley to secure them in place.
  • M
    mikaylaleeAug 21, 2025
    What to do if there is excessive drill bit wobbling in my King Canada KC-110C?
    • R
      Rebecca BlackburnAug 21, 2025
      Excessive wobbling of the drill bit in your King Canada Power Tool can be caused by several factors. First, check if the drill bit is bent and replace it with a straight one if needed. Inspect the spindle bearings for wear and replace them if necessary. Ensure the drill bit and chuck are properly installed.
  • R
    robert30Aug 25, 2025
    What to do if the workpiece torn loose from hand using King Canada KC-110C?
    • K
      Kristy MathewsAug 25, 2025
      If the workpiece is torn loose from your hand while using the King Canada Power Tool, it is likely not supported or clamped properly. To prevent this, ensure you support or clamp the workpiece securely before drilling.
  • J
    Joseph BaileyAug 28, 2025
    Why does the drill bit bind in the workpiece of my King Canada KC-110C?
    • S
      Sandra YangAug 28, 2025
      If the drill bit binds in the workpiece while using your King Canada Power Tool, ensure that the workpiece is properly supported or clamped to prevent pinching. Also, check and adjust the belt tension, as improper tension can contribute to binding.
  • B
    Brian HallAug 31, 2025
    What to do if the chuck will not stay attached to the spindle of my King Canada KC-110C?
    • J
      Jason PowellSep 1, 2025
      If the chuck of your King Canada Power Tool won't stay attached to the spindle, it might be due to dirt, grease, or oil on the tapered surfaces. Clean the tapered surfaces of both the chuck and the spindle with a household detergent to remove any contaminants.
  • E
    Erica HaneySep 4, 2025
    How to prevent wood splinters on underside of workpiece with King Canada KC-110C?
    • F
      Franklin YoungSep 4, 2025
      Wood splintering on the underside of your workpiece when using the King Canada Power Tool is likely due to a lack of support. Ensure you use a back-up material under the workpiece or clamp it to provide support and prevent splintering.
  • K
    Kelly MorrisonSep 8, 2025
    Why does the quill return too fast or too slow on my King Canada Power Tool?
    • T
      Tammy MillerSep 9, 2025
      If the quill of your King Canada Power Tool returns too fast or too slow, the spring tension is likely improper. Adjust the spring tension to correct the return speed.

Summary

10 DRILL PRESS

IMPORTANT INFORMATION

LIMITED WARRANTY

Details the 2-year limited warranty for the drill press and conditions.

PROOF OF PURCHASE

Instruction to keep dated proof of purchase for warranty and servicing.

REPLACEMENT PARTS

Information on availability and how to obtain replacement parts for the tool.

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

SPECIFIC SAFETY INSTRUCTIONS FOR DRILL PRESS

SPECIFICATIONS

GETTING TO KNOW YOUR DRILL PRESS

LOCATION AND FUNCTION OF CONTROLS

Identifies and describes the various controls and their functions on the drill press.

UNPACKING AND TOOLS NEEDED

TABLE OF LOOSE MACHINE COMPONENTS

Lists and identifies the components included with the drill press shipment.

TOOLS NEEDED

Lists the tools required for assembly and setup of the drill press.

ELECTRICAL CONNECTIONS

POWER SUPPLY

Details voltage, amperage, and circuit requirements for safe operation.

GROUNDING

Explains the importance and method of grounding the drill press for safety.

120 V OPERATION

Confirms the drill press is ready for standard 120V operation and plug compatibility.

EXTENSION CORDS

Provides guidelines for selecting appropriate extension cords based on wire gauge and length.

ASSEMBLY INSTRUCTIONS

BASE, COLUMN & TABLE ASSEMBLY

Step-by-step guide for assembling the base, column, and table components.

ASSEMBLY INSTRUCTIONS

INSTALLING THE HEAD

Instructions for mounting the head assembly onto the drill press column.

ASSEMBLY INSTRUCTIONS

INSTALLING THE CHUCK

Procedure for securely attaching the drill chuck to the spindle.

TENSIONING THE BELT

Guidance on adjusting the belt tension for optimal performance and preventing slippage.

OPERATING AND ADJUSTMENTS

INSTALLING DRILL BITS

How to properly insert and tighten drill bits into the chuck for safe operation.

ADJUSTING THE TABLE SQUARE TO THE HEAD

Steps to ensure the drill press table is perpendicular to the spindle axis.

ON-OFF SWITCH AND LIGHT SWITCH

Description of the safety lock feature and operation of the on-off and light switches.

MAINTENANCE AND TROUBLE SHOOTING

LUBRICATION

Instructions for periodic lubrication of the spindle and rack for proper function.

INSTRUCTIONS FOR DUAL LASER GUIDE SYSTEM

USING AND ADJUSTING DUAL LASER GUIDE SYSTEM

How to use and calibrate the laser guide system for accurate drilling.
