CONNECTION INSTRUCTIONS
1. Check that your hose assembly valve is set to not allow gas flow. Turn the manual valve(s)
clockwise until it stops. This is the OFF position.
2. Attach the regulator to the cylinder valve by turning the Type 1 fitting clockwise. Hand tighten with
the regulator positioned upright. Refer to the assembly diagram for the appliance below.
3. Perform the Leak Test:
4. Before lighting the cooker, check that the jet pipes, orifice and venturi tube on cast burners are
free from obstruction. The orifice under the jet tube should be positioned pointing up directly
through the tube. The orifice on the cast burner must be properly threaded into the venturi tube
as per instructions on page 12. Both situations must be corrected if necessary before lighting to
prevent flashback.
LEAK TEST
Before lighting the appliance, a thorough leak test must be satisfactorily completed using
a non-ammonia soapy water solution (50% non-ammonia soap and 50% water). This is to be
applied with a small brush to all gas joints after the cylinder valve is opened (no more than
1/2 turn). If bubbles are seen, indicating a leak, turn off the cylinder and tighten the leaking
connection until a further leak test shows no leaks.
If tightening the connection does not stop the leak, call Metal Fusion, Inc. (800) 783-3885,
for assistance.
NEVER USE HOSE/REGULATOR ASSEMBLY IF LEAKING.

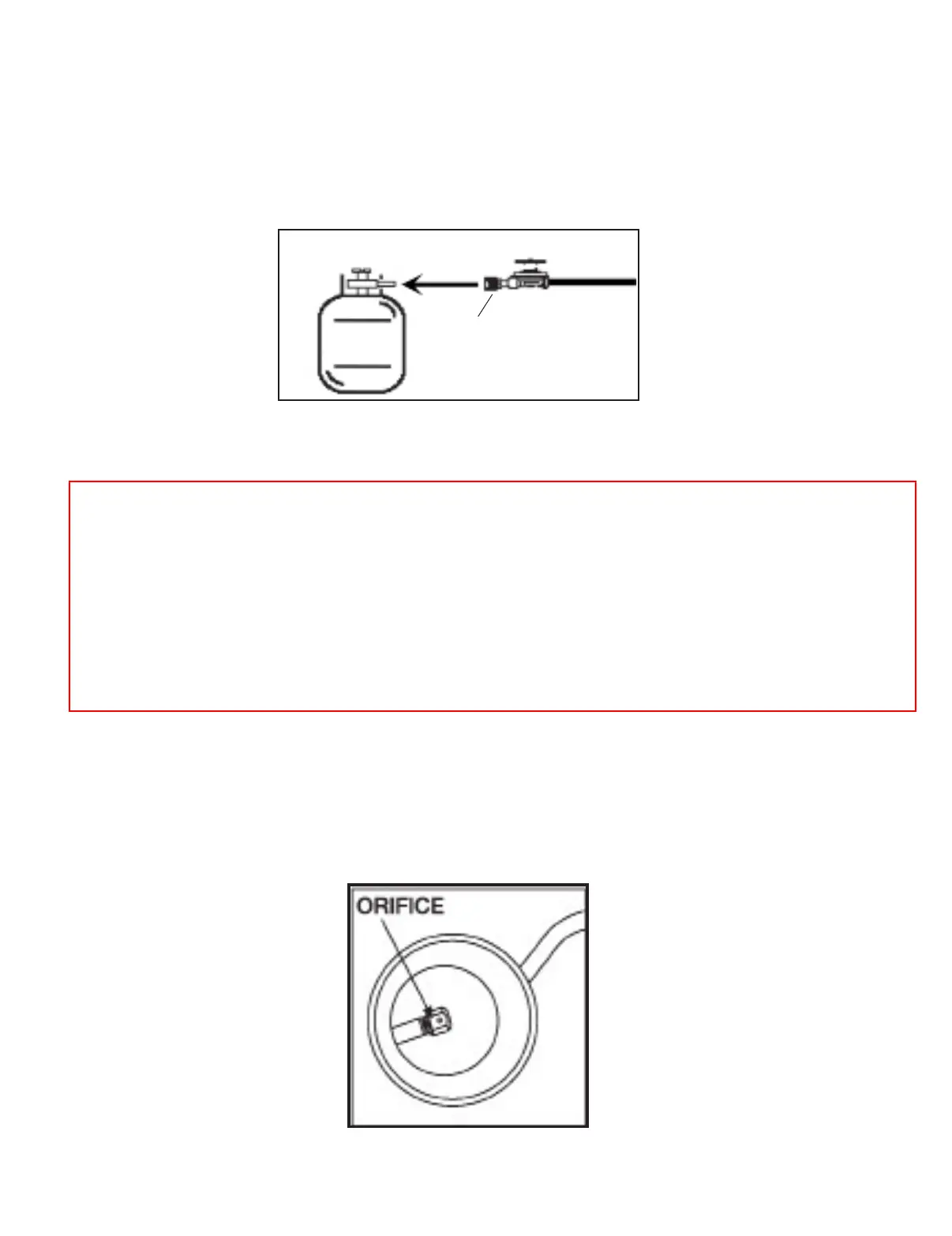

TYPE 1
CONNECTION
* Model May Vary From Picture
20 lb. LP
Gas Cylinder
