King Kooker 94/90TKD - Lighting and Operating Instructions

17

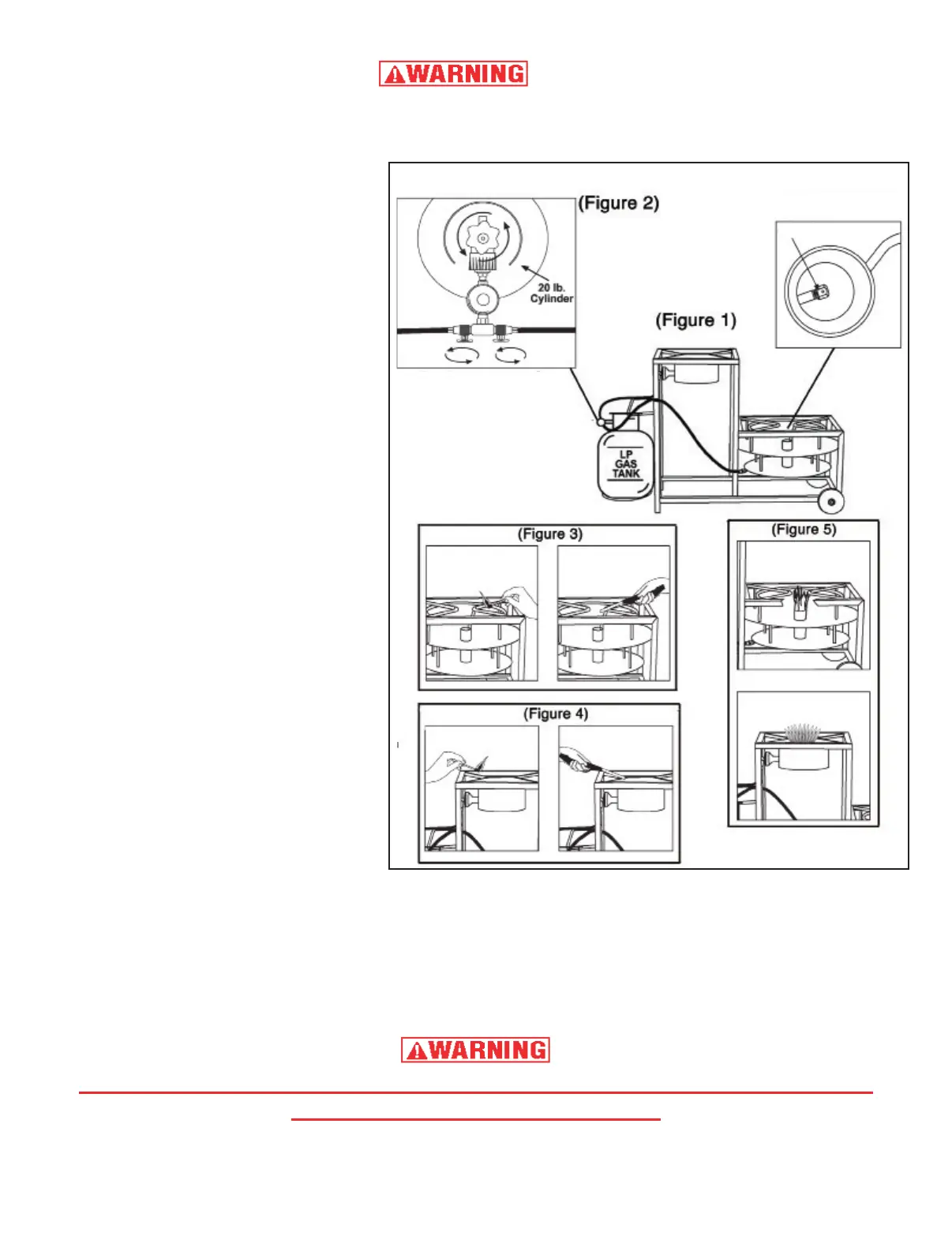

1. Check that the casting is properly located
as per the diagram and that the orifice is
properly located in respect to the jet pipe.
(Figure 1)
2. Make certain that the manual valves are
turned to the OFF position by turning
them clockwise until they reach the stop
position.
3. Open the cylinder control valve by turning
it counterclockwise as per the diagram
(Figure 2).
4. To light the jet burner, hold a multi-purpose
lighter or paperback match over the jet pipe
as per (Figure 3). Turn the corresponding
manual valve control toward the ON position
until ignition occurs. Turning the manual
valve counterclockwise increases the gas
flow to the burner and hence the flame size
(Figure 2). To light the cast burner, hold a
multipurpose lighter or use a paperbook
match placed above the casting as per
(Figure 4). Turn the corresponding manual
valve control toward the ON position until
ignition occurs. Turning the manual valve
counterclockwise increases the gas flow to
the burner and hence the flame size (Figure
2). When lighting the stove, if ignition does
not occur in 3 to 5 seconds, turn the
manual valve(s) and cylinder control off.
Wait 5 minutes for gas to disperse. Repeat
Procedure.
5. Refer to (Figure 5) for proper flame
emission for the jet and cast burners. The
casting flame should be blue and the flame
should be emitted from every port in the
casting. If not, rotate the air shutter position
until there is a blue flame. Opening the
shuttertoomuchwillcausetheflameto“lift”offtheburner.Ifthereisayellowflame,orifsomeportshavenoflame,
this indicates there may be an obstruction in the venturi tube or ports. Check the maintenance instructions on page 18
for more information regarding a yellow flame.
6. Always monitor the flame throughout the cooking process. If at any point in the cooking process the flame(s) are
accidently extinguished, immediately turn the manual valve(s) and cylinder valve OFF. Wait 5 minutes for gas to
disperse and relight the cooker according to the lighting insructions (#1 - #5) in this section.
NEVER PUT HANDS OR FACE DIRECTLY OVER BURNER WHILE LIGHTING
OR WHILE THE APPLIANCE IS LIT.
LIGHTING AND OPERATING INSTRUCTIONS
Turn triangle handle toward ON
(Counterclockwise)
Turn T-handle toward ON
(Counterclockwise)
VIEW FROM TOP OF
LARGE JET PIPE
ORIFICE
THE COOKER MUST NOT BE LIT UNTIL THE PRECEDING
PLACEMENT INSTRUCTIONS HAVE BEEN COMPLETELY FOLLOWED.
