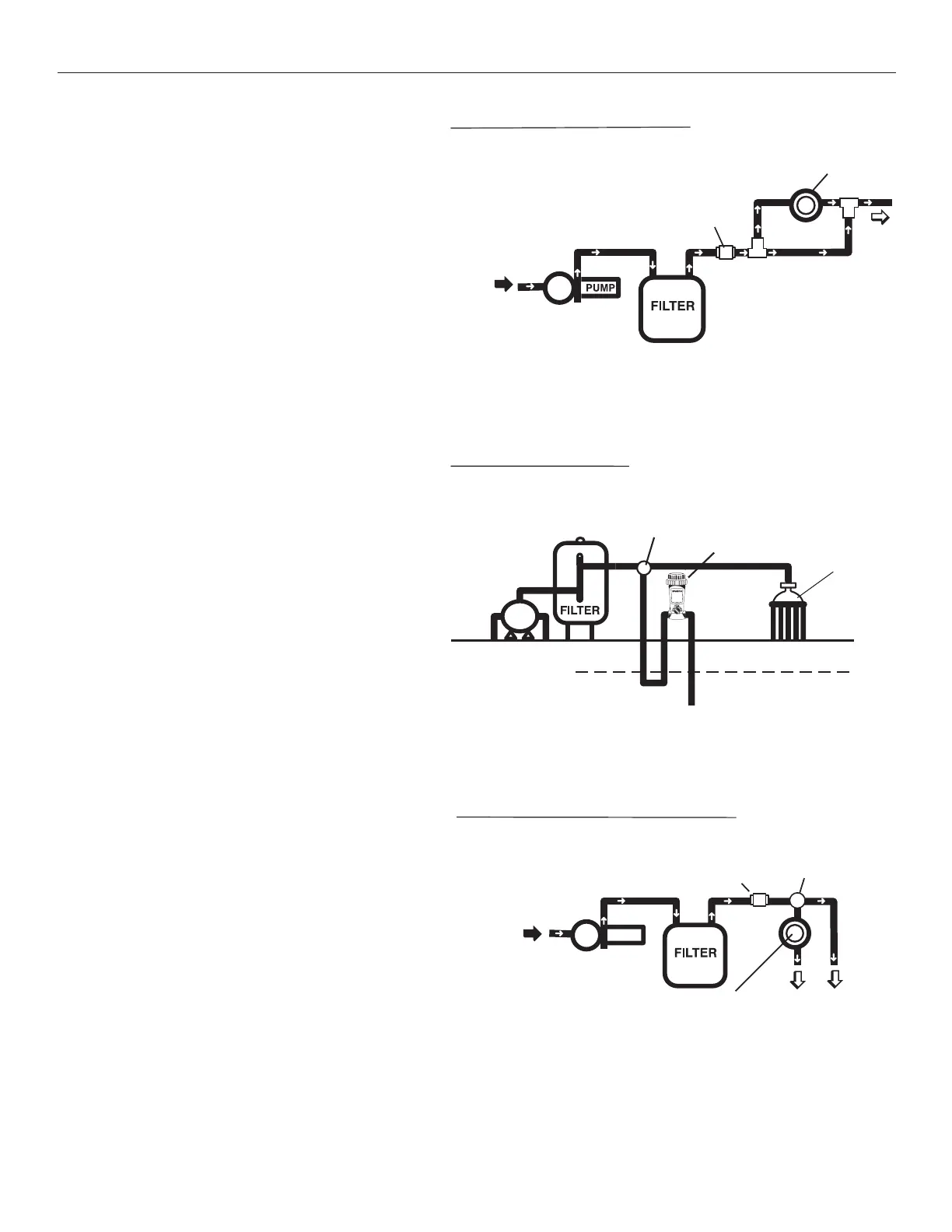

B. With In-floor Cleaners
A. With High GPMS
Install T-fittings exactly as shown.
C. Pool and Spillover Spa Combination
TO POOL
TO SPA
3-WAY
SPARCO
CYCLER
CHECK VALVE
PUMP
TO POOL
SPARCO
CYCLER
CHECK
VALVE
For Proper Performance
➜
➜
➜
➜
➜➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
SPARCO
CYCLER
PUMP
3-WAY VALVE
11
SUCTION
FROM
POOL/SPA
1)
Make sure back pressure Is between
3 and 8 psi
Higher back pressures could result in over
chlorination. Lower back pressures could
result in under chlorination. Adjust eye
ball fittings in the return jets to a larger
size to decrease back pressure or smaller
size to increase back pressure. Contact
your dealer to have your back pressure
tested to ensure it is between 3 and 8 psi.
2) Recommended flow rates for in
ground unit is 20-80 gpm.
3) Determine possible high-flow
situations that require a special
installation such as:
A. Water flow is higher than 80 gpm.
B. In-floor cleaner is included with pool.
C. Pool and spa combination with common
equipment.
NOTE: Over chlorination or damage to the
Sparco Cycler or other equipment could
result if these special installations are not
used in these situations.
SUCTION
FROM
POOL/SPA
IN-FLOOR
VALVE
POOL WATER LEVEL
AUTOMATIC
WATER
TREATMENT
SYSTEM
