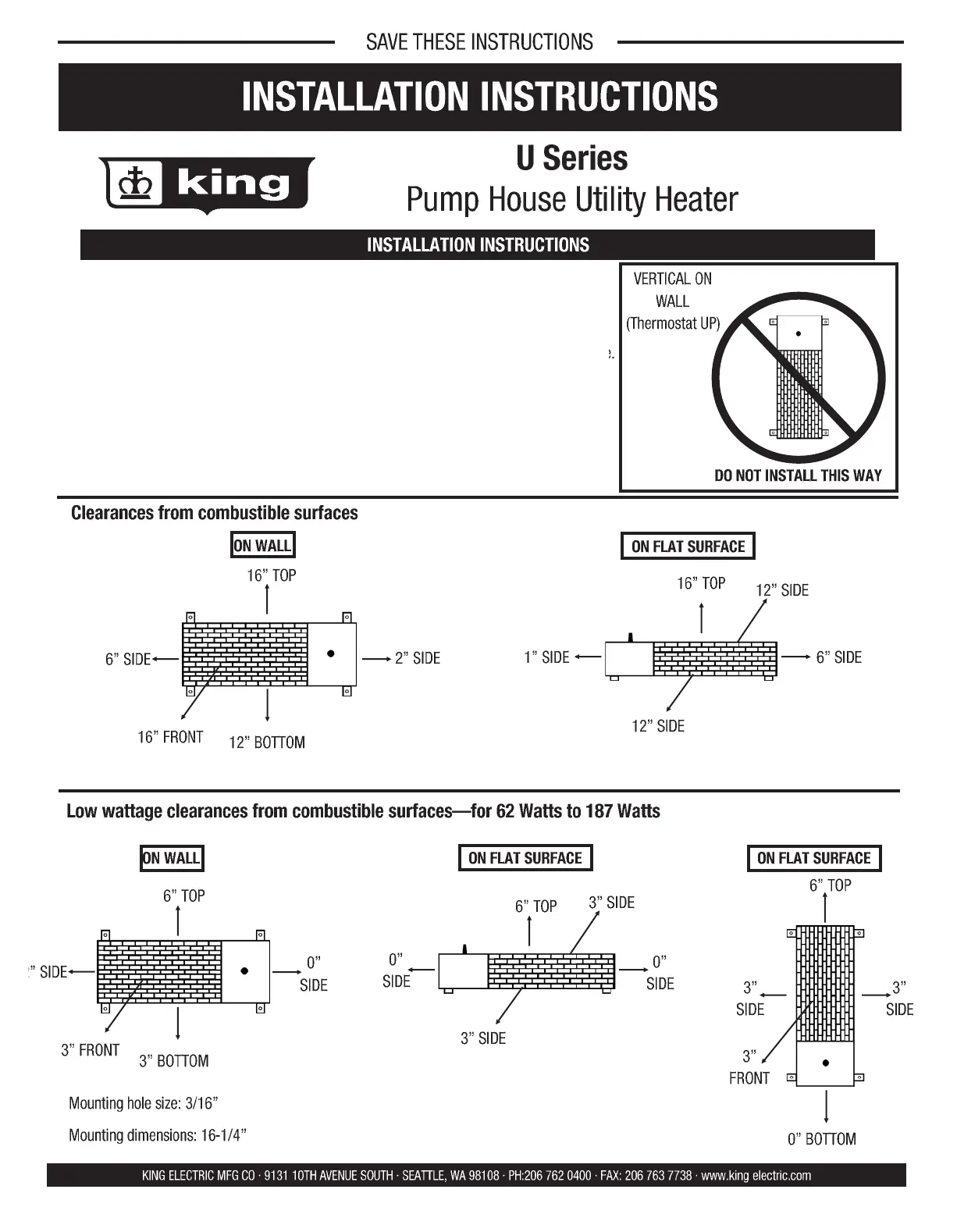

KING U Series - Installation Steps; Mounting Clearances

32
1
（ ）
-
!
!
-
-
!
!
-
-
Rev. 2.27.18


 -



-
Time Period Mode
1
（ ）
-
!
!
-
-
!
!
-
-
Rev. 2.27.18


 -



-
Time Period Mode
2









3
! !
• Remove heater from box. Check contents received for damage from shipping.
• Attach unit to wall or flat surface following dimensional clearances below.
• Remove Unit can be installed in either horizontal (full wattage) or vertical (up to 500W) positions.
• Unit CANNOT be installed vertically with thermostat at the top.
• Remove junction box cover and connect power with appropriate starin relief device.
• Attach power wires to lead wires in unit.
• Replace junction box cover and turn thermostat off.
• Apply power.
• Turn thermostat On and test to insure that the unit and thermostat are working properly.
• Set thermostat to desired temperature.
