Getting Started . . .
Before you start
11. Make sure the cutting blade (24) is rmly tightened and remove the hex key (36).
1
EN
36
30
23
25
26
24
8
33

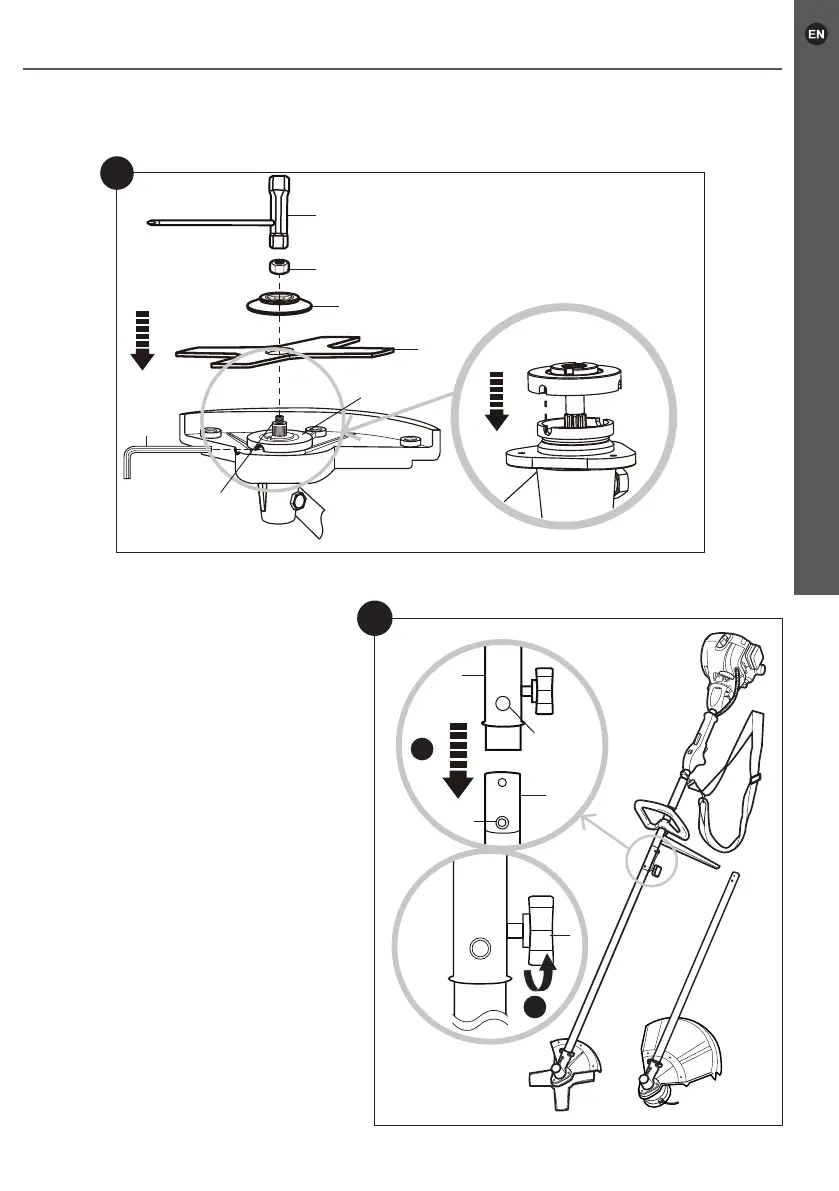

Assembling the bottom drive shaft tube
1. Press the lock pin (16) and insert
the bottom drive shaft tube (17)
into the upper drive shaft tube (11)
(Fig. 9).
2. Move the bottom drive shaft
tube (17) until the lock pin (16)
pop out from the pin hole on the
upper drive shaft tube (11).
3. Tighten the locking nut (15)
securely.
1
EN
11
Pin holePin hole
16
17
9
1
2
1515
