12
7). Connection cable

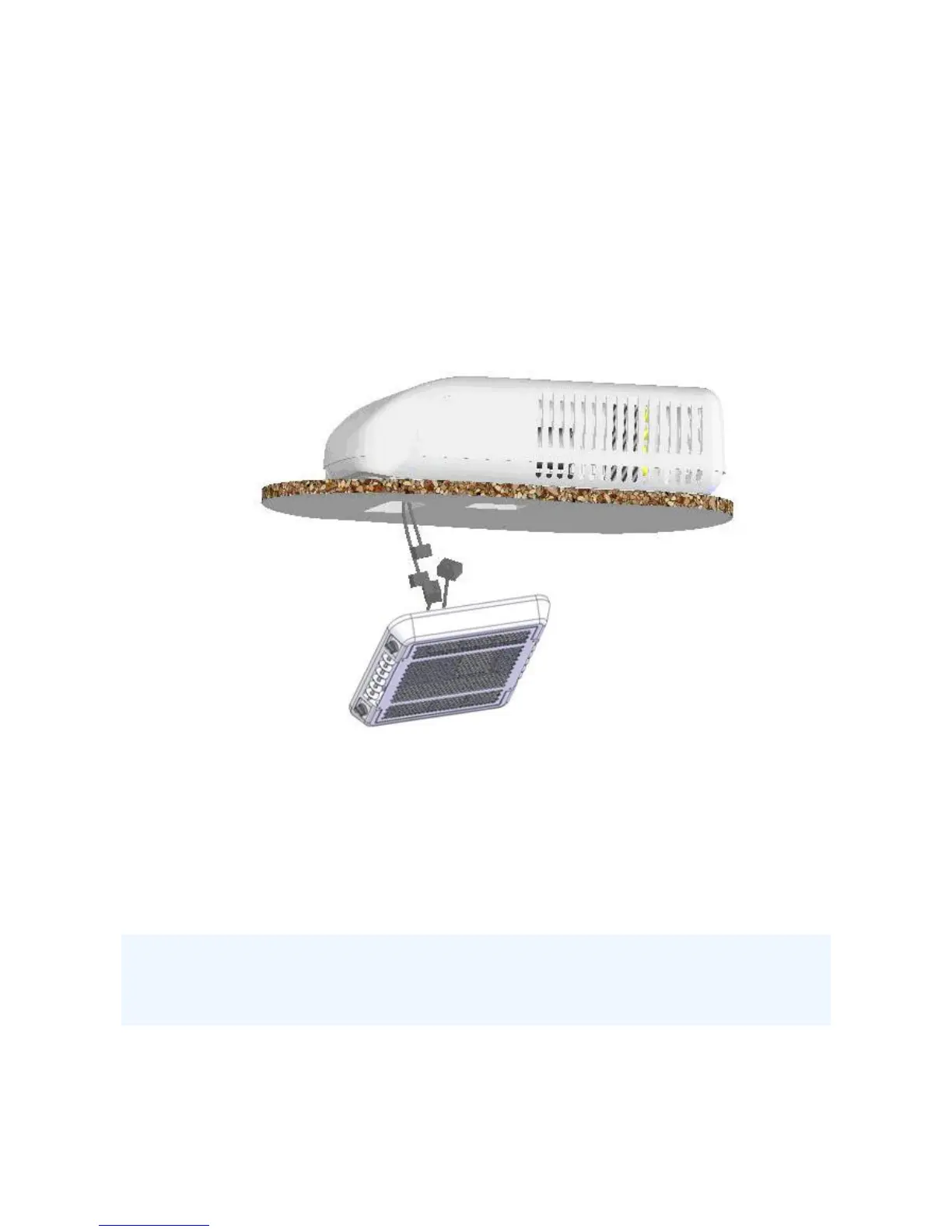

Figure 5 is the connection of power supply. It is connected with insert and
interior channel.
Connect the adaptors properly as shown in Figure 5.
Figure 5
8）. Fix interior air channel
With four M4 × 35 of the self-tapping screw fixation in the mounting bra
ckets,
