6). Outdoor unit installation
1). Clean the holes and surrounding with the distance at least 75mm with
grease after drilling the installed hole.
2). Stick the EVR stripe attached along the sides and seal the surface with
glue;
3). Make the four fixing bolt tight, ensuring the gap 22mm for discharging
between lower surface of the unit and top surface of the van. Observe the
deforming of the assembly seat. Adjust the thickness of shock absorber rubber
gasket for leveling.
4). Observe the installation of the air return outlet from the carriage. Seal the
seat, EVR, joints of the top van, ensuring no leakage from the top van.

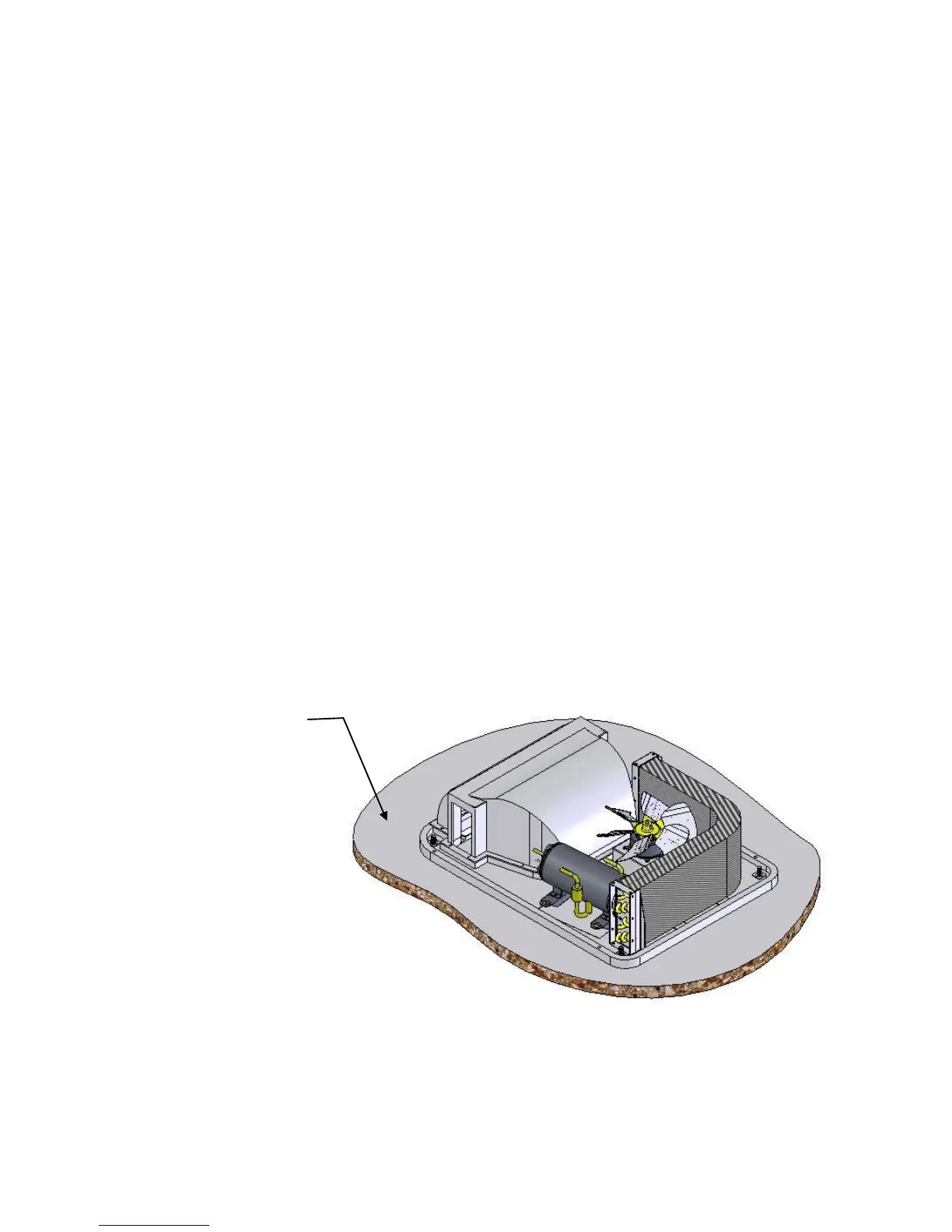

Figure 4
