(2) RANGE GEAR SHIFT LEVER (HI-LO)
The range gear shift can only be shifted
when tractor is completely stopped and
clutch is depressed. If it is difficult to
shift the range gear, take the following
actions.
1. Be sure the range gear shift lever is
in neutral position.
2. Release clutch pedal or slightly de-
press the speed control pedal to ro-
tate the gears inside of transmission.
Release the speed control pedal to
neutral(HST only).
3. Depress clutch pedal and then shift
the range gear shift lever.
To avoid transmission damage,
depress clutch pedal and stop
tractor before shifting between
ranges.
IMPORTANT
It may be easy to stall the engine
when operating the tractor in
high range at low engine rpm’s.
!!
!!
!
CAUTION

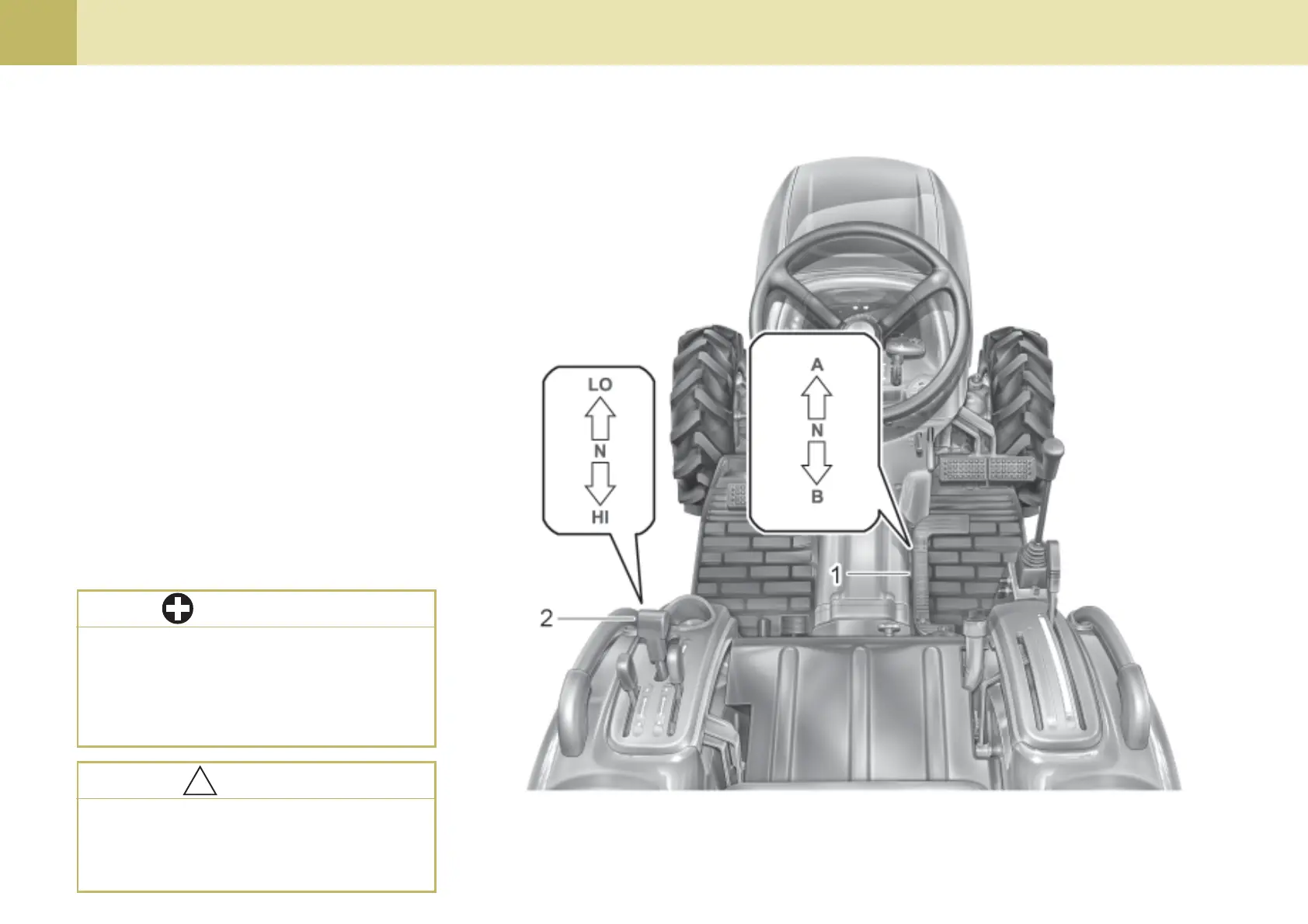

(1) Speed Control Pedal
(2) Range Gear Shift Lever (Hi-Lo)
(A)FORWARD
(B) REVERSE
(N)NEUTRAL POSITION
HI - HIGH
LO - LOW
