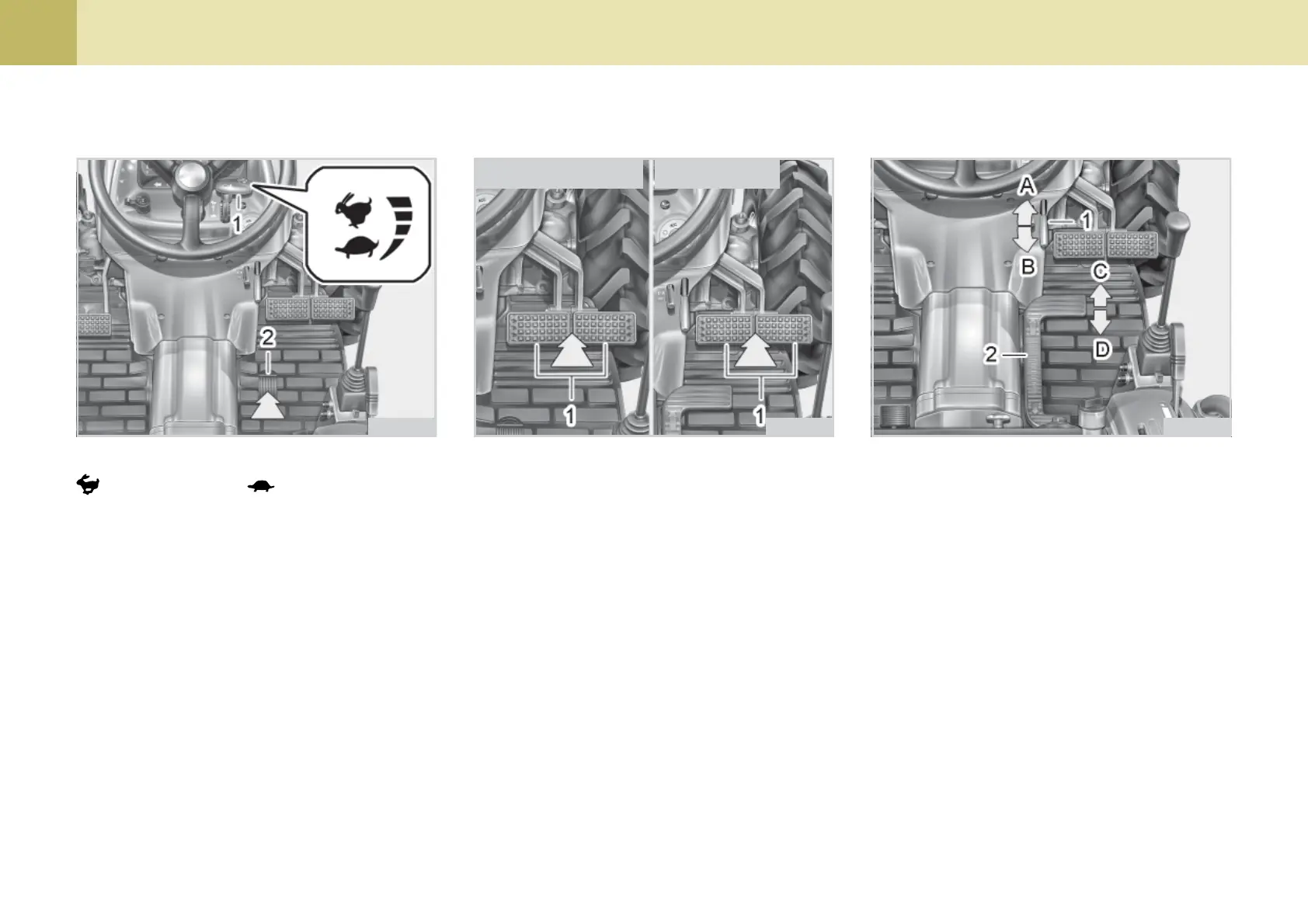

(1) Speed Set Lever
(2) Speed Control Pedal
(A)Lock (C)Forward
(B) Release (D)Reverse
051O530C
(1) Brake Pedals
To release the parking brake, simply
depress the brake pedals again. Once
released, the parking brake indicator in
the easy checker will go off.
8. UNLOCK THE PARKING BRAKE
AND SLOWLY RELEASE THE
CLUTCH PEDAL.
051O528C
HST Type
MANUAL Type
(1) Hand Throttle Lever (2) Foot Throttle
INCREASE DECREASE
7. ACCELERATE THE ENGINE
(1) HAND THROTTLE LEVER
Pushing the throttle lever forward de-
creases engine speed, and pulling it
back increases engine speed.
(2) FOOT THROTTLE (MANUAL Type)
Use the foot throttle when traveling
on the road. Press down on it for
higher speed. The foot throttle is in-
terlocked with the hand throttle lever;
when using the foot throttle, keep the
hand throttle lever in low idling
position.
051O527C
