6
-3
THREE-POINT HITCH & DRAWBAR
3-POINT HITCH
MAKE PREPARATIONS FOR
ATTACHING IMPLEMENT

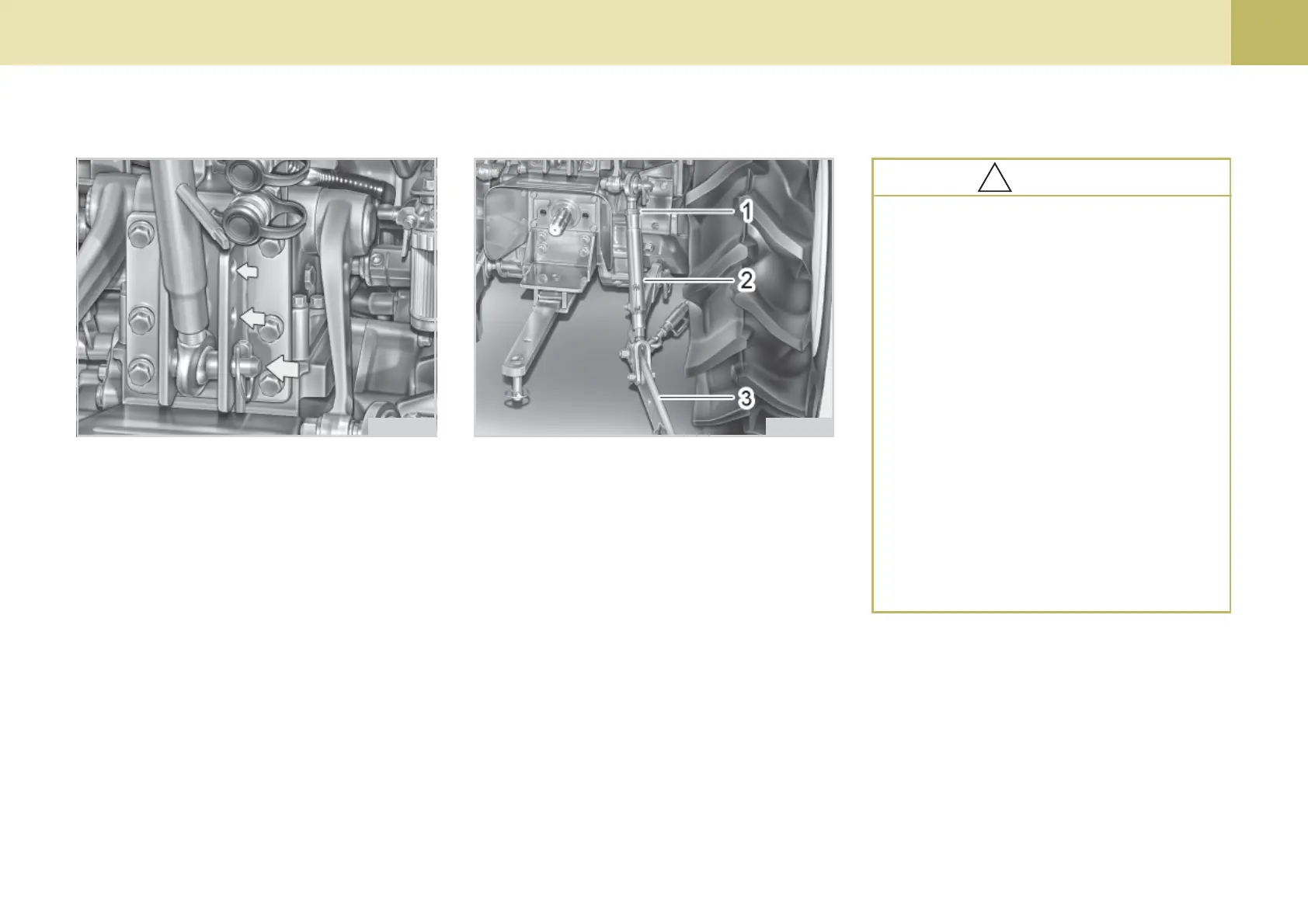

SELECTING THE TOP LINK MOUNT-
ING HOLES
1. Adjust the angle of the implement to
the desired position by shortening or
lengthening the top link.
2. The proper length of the top link var-
ies according to the type of imple-
ment being used.
DRAWBAR
Remove the drawbar if close mounted
implement is being attached.
ATTACHING AND DETACHING
(1) Nut
(2) Lifting Rod (Right)
(3) Lower Link
LIFTING ROD (RIGHT)
Lift Rod - To adjust the horizontal posi-
tion of the implement twist the turn
buckle on the right lift rod. Most imple-
ments are designed to operate level.
Set the position desired by tightening
the set nut against the turn buckle.
To avoid personal injury:
Be sure to stop the engine.
Do not stand between tractor
and implement unless parking
brake is applied.
Before attaching or detaching
implement, locate the tractor
and implement on a firm level
surface.
Whenever an implement or
other attachment is connected to
the tractor 3-point hitch, check
full range of operation for
interference, binding or P.T.O
separation.
!!
!!
!
CAUTION
051O603C051O602C
To Next Page
