6
-4 CK22
WARNING
!!
!!
!
The drawbar load is rating is listed in
the "IMPLEMENT LIMITATIONS"
section.
To avoid personal injury:
Never pull from the top link, the
rear axle or any point above the
drawbar. Doing so could cause
the tractor to tip over rearward
causing personal injury or death.

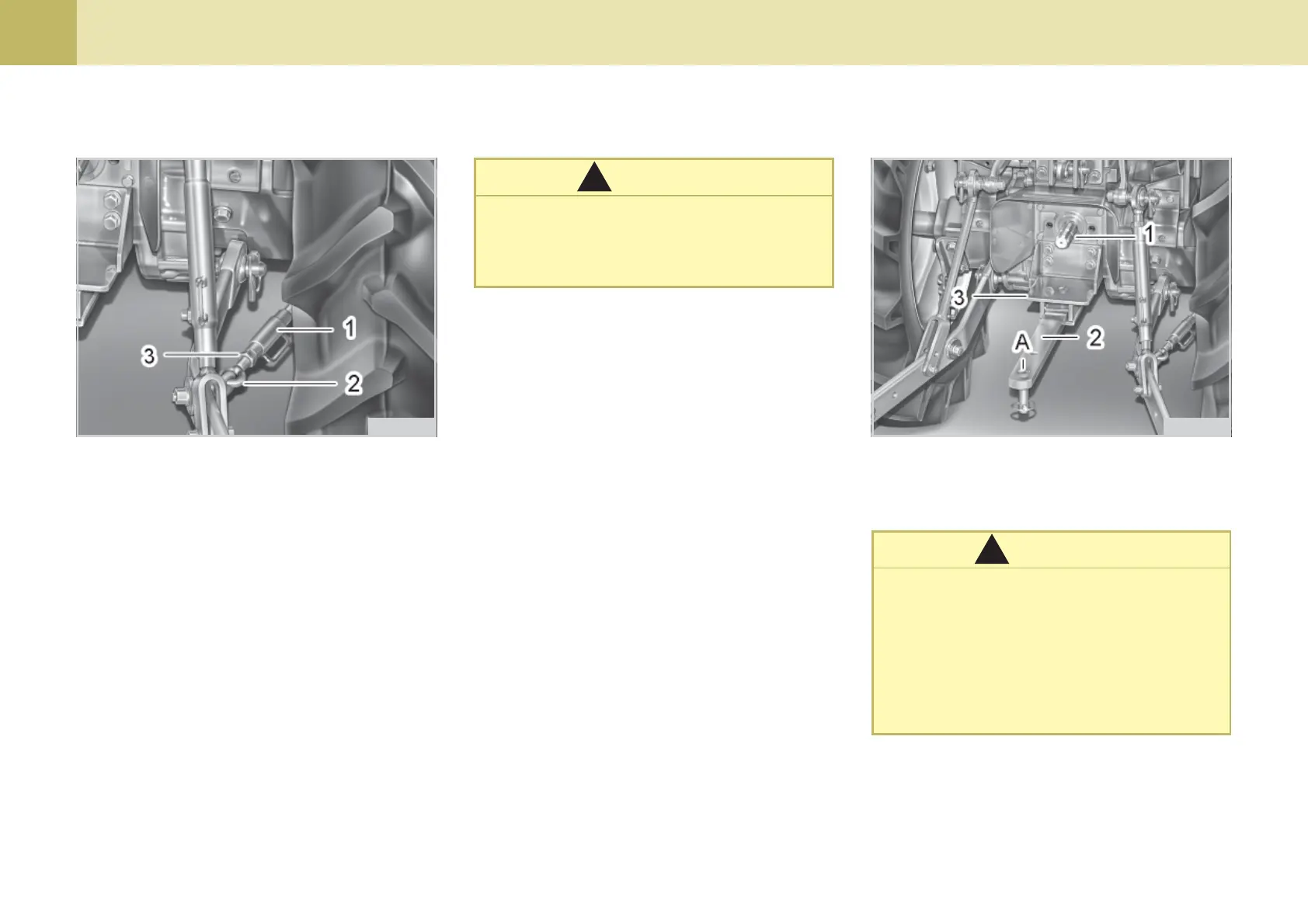

(1) PTO Shaft (3) Drawbar Pin
(2) Drawbar (A) Holes
WARNING
!!
!!
!
Use caution when adjusting the
check chains. Heavy implement
can move causing harm.
051O605C051O604C
(1) Turn Buckle (3) Nut
(2) Check Chains
To adjust the check chains, loosen the
set nuts and twist the turn buckles on
both sides until the desired amount of
sway is reached. Set the adjustment
by tightening the set nuts against the
turn buckles.
CHECK CHAINS
Check chains are used to adjust the
side sway that your implement has
while in use. Check Chains are also
used to center the implement on the
rear of the tractor.
DRAWBAR
ADJUSTING DRAWBAR LENGTH
