- 4 -
CK3510(H)/4010(H)
TC2SZ04A
TC2SZ06A
TC2SZ05A

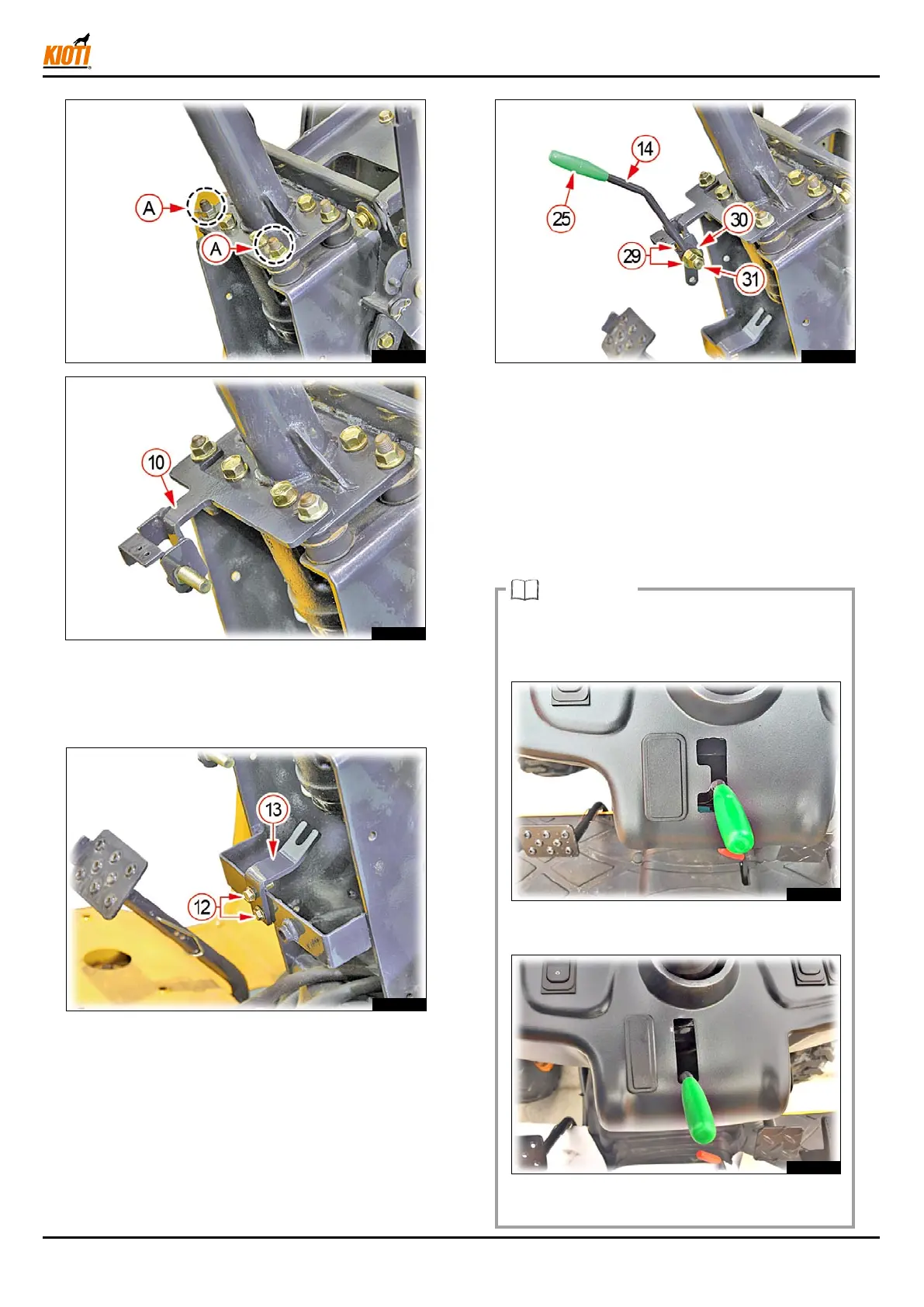

6. Fit the plain washer (29) to the spiral axis
section of the lever mounting bracket and
insert the RPM linked lever (14) into the lever
mounting bracket's spiral axis section. Then,
t the spring (30) and plain washer (29) and
tighten one nut (31) to the degree where
the lever can be operated freely. Finally, x
the lever with the remaining nut. Insert the
handle (25) to the lever.
TC2SZ07B
4. Unscrew two steering column mounting nuts
(A) and attach the lever mounting bracket
(10).
5. Install the wire retaining bracket (13) to the
steering column support with two flange bolts
(12).
Plain Washer(29) tted on left side of RPM
linked Lever(14) should be installed or not
according to the cases below.
TC2SZ27A
Instrument cluster cover (D-shaped) model:
Need to be installed
TC2SZ26A
Instrument cluster cover (straight shaped)
model: No needed
REMARKS
To Next Page
