- 5 -
CK3510(H)/4010(H)
TC2SZ10A
TC2SZ09A
TC2SZ08A TC2SZ11A
TC2SZ13A
TC2SZ12A

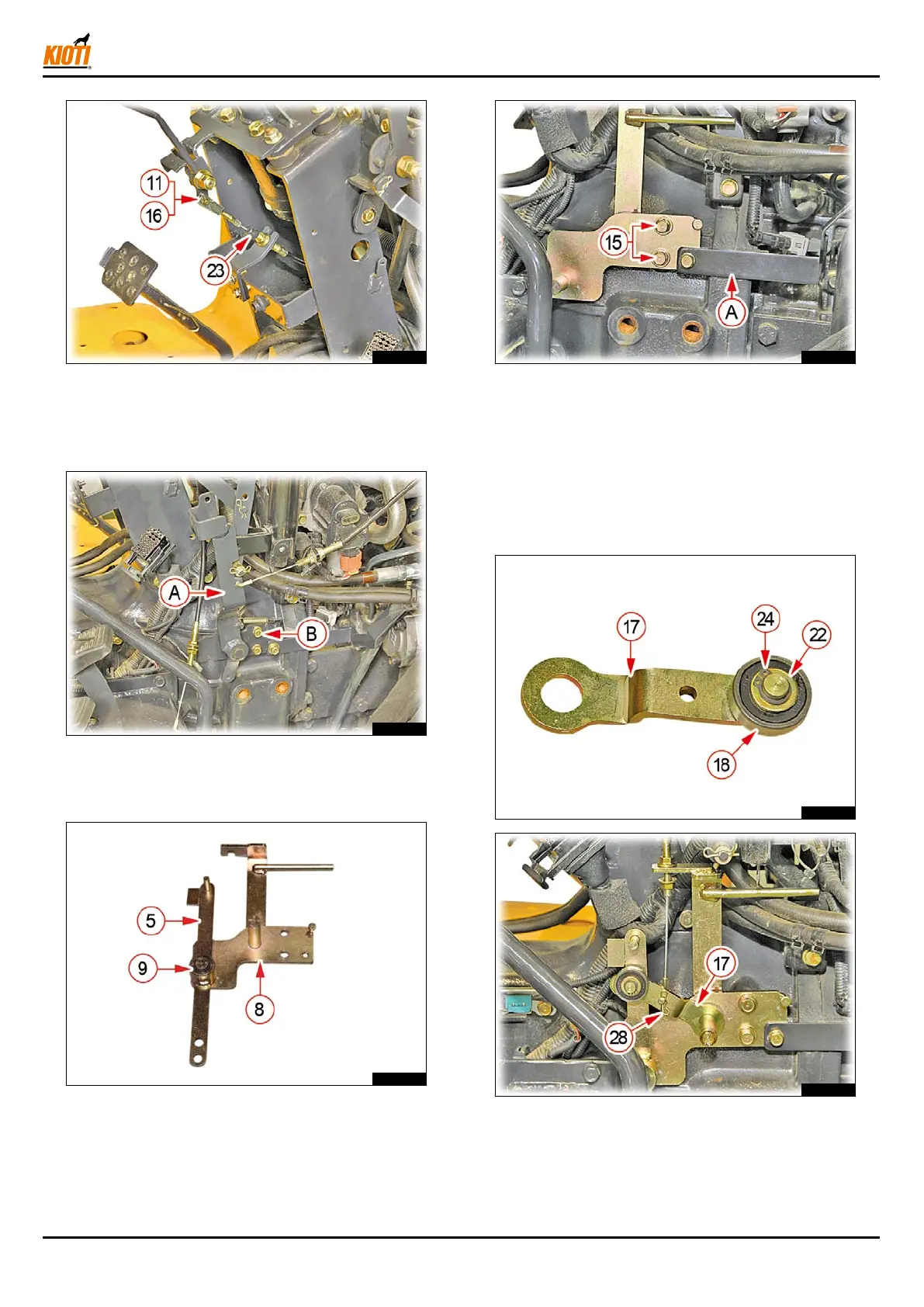

7. Connect the RPM linked cable (23) to the
wire retaining bracket and to the lever. Then,
x it with the head pin (11) and snap pin (16).
8. Remove the accelerator connecting arm (A)
and hinge bracket (B) from the vehicle body.
9. Insert the connecting lever 1 (5) to the
lever section of the pedal hinge bracket (8)
and install the snap ring (9) to it. Install the
pedal hinge bracket (assembled with the
connecting lever 1) to the clutch housing with
the washer based head bolt (15) and fix it
with the hose guide (A).
10. Insert the ball bearing (18) to the lever (17)
and x the lever with the plain washer (22)
and snap ring (24). Then, insert it to the
pedal hinge bracket and connect the RPM
linked cable to it with the snap pin (28).
To Next Page
